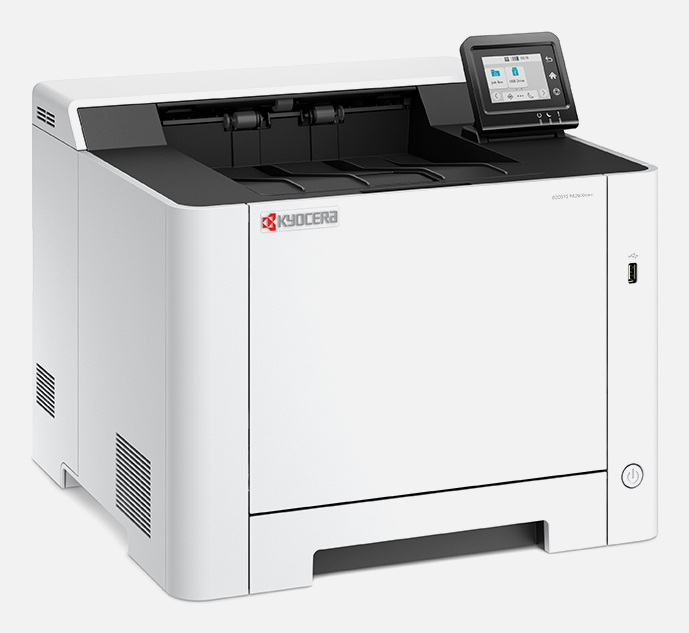

ECOSYS PA2600cwx/Plus Colour
1200 x 1200 DPI A4 Wi-Fi
Model PA2600cwx/PlusPart no. 870B6110C0G3NL1EAN 632983938065
91 specifications
- Display6.86 cm (2.7")
- ProcessorARM Cortex
- Memory1000 MB
- Weight21 kg
- ColourYes
- Maximum duty cycle65000 pages per month
Overview
- Display
- 6.86 cm (2.7")
- Processor
- ARM Cortex
- Memory
- 1000 MB
- Weight
- 21 kg
- Colour
- Yes
- Maximum duty cycle
- 65000 pages per month
- Brand
- Kyocera
- Category
- Laser Printer
- Model
- PA2600cwx/Plus
- Part number
- 870B6110C0G3NL1
- EAN / UPC
- 632983938065
- Also known as
- KYOCERA ECOSYS PA2600cwx/Plus Colour 1200 x 1200 DPI A4 Wi-Fi
Specifications
91 specifications in 14 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Print technology | Laser |
| Duplex printing | Yes |
| Duplex printing mode | Auto |
| Maximum resolution | 1200 x 1200 DPI |
| Print resolution colour | 1200 x 1200 DPI |
| Print resolution black | 1200 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) | 26 ppm |
| Print speed (colour, normal quality, A4/US Letter) | 26 ppm |
| Warm-up time | 29 s |
| Time to first page (black, normal) | 9.5 s |
| Time to first page (colour, normal) | 10.5 s |
| Economical printing | Yes |
Features
| Specification | Value |
|---|---|
| Maximum duty cycle | 65000 pages per month |
| Recommended duty cycle | 900 - 1500 pages per month |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Number of print cartridges | 4 |
| Page description languages | PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3, TIFF, XPS |
| Printer fonts | PCL |
| Replacement cartridges | TK-5450K TK-5450Y TK-5450M TK-5450C |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 2 |
| Total input capacity | 300 sheets |
| Total output capacity | 150 sheets |
| Paper tray 1 input capacity | 250 sheets |
| Multi-Purpose tray | Yes |
| Multi-Purpose tray input capacity | 50 sheets |
| Maximum number of input trays | 3 |
| Maximum input capacity | 550 sheets |
| Maximum output capacity | 150 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Maximum print size | 216 x 356 mm |
| Paper tray media types | Envelopes, Glossy paper, Labels, Plain paper, Pre-printed, Recycled paper, Semi-glossy paper, Thicker paper, Thin paper, Transparencies |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| Envelopes sizes | DL |
| Custom media width | 70 - 216 mm |
| Custom media length | 148 - 356 mm |
| Paper tray media weight | 60 - 163 g/m² |
| Multi-Purpose Tray media weight | 60 - 220 g/m² |
| Duplex media weight | 60 - 163 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Direct printing | Yes |
| USB port | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | No |
| Near Field Communication (NFC) | No |
| Security algorithms | HTTPS, IPPS, IPSec, SNMPv3, TLS |
| Mobile printing technologies | Apple AirPrint, Chromebook Native Print, Kyocera Mobile Print, Mopria Print Service |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1000 MB |
| Maximum internal memory | 1000 MB |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC |
| Built-in processor | Yes |
| Processor family | ARM Cortex |
| Processor model | A53 |
| Processor frequency | 1000 MHz |
| Sound pressure level (printing) | 49 dB |
| Sound pressure level (quiet mode) | 44 dB |
| Sound power level (standby) | 30 dB |
Design
| Specification | Value |
|---|---|
| Market positioning | Home & office |
| Product colour | Black, White |

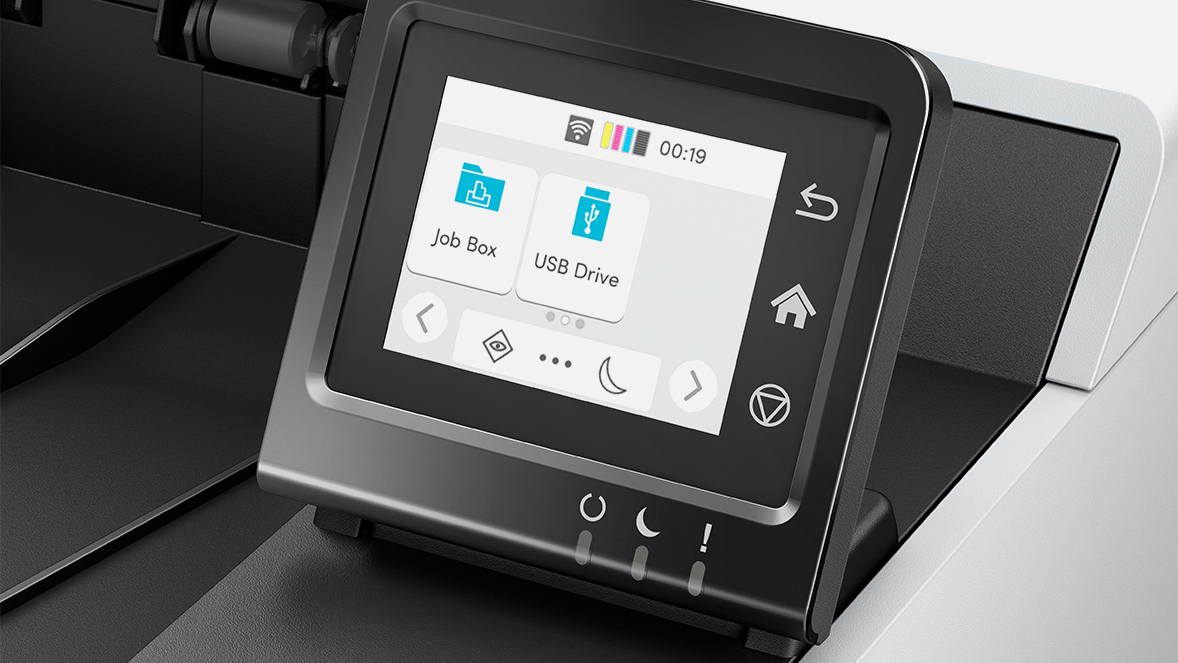

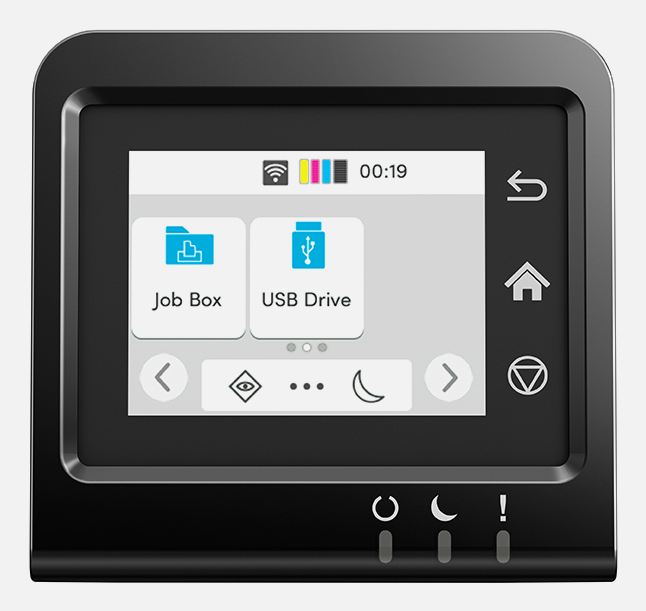

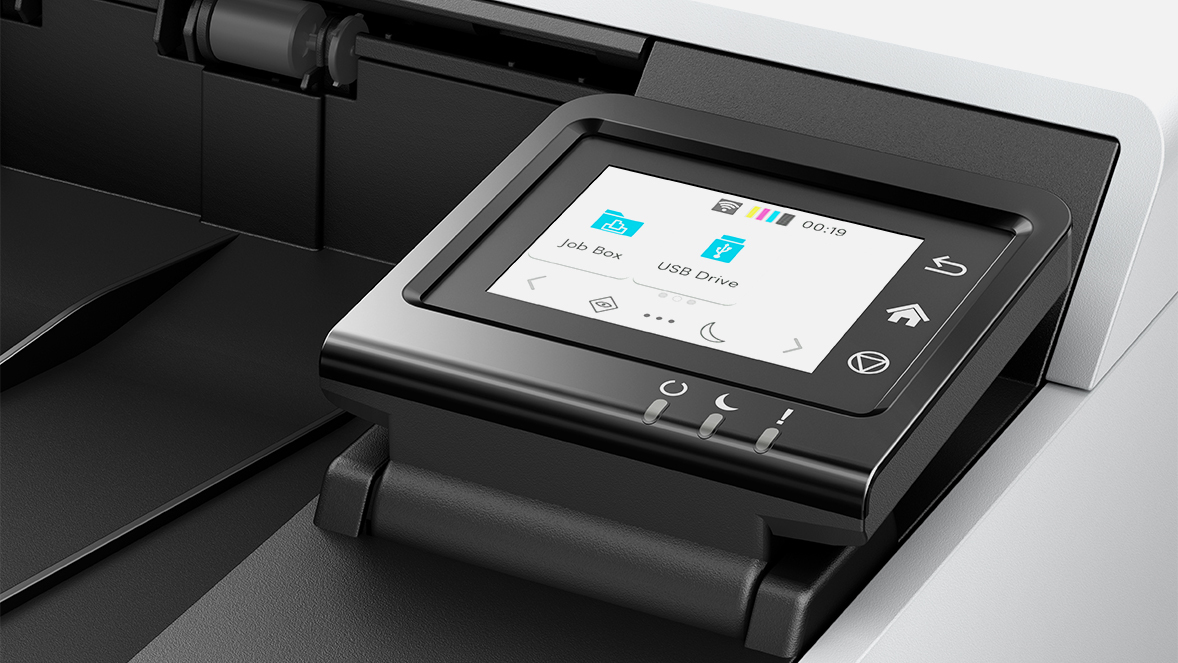

| Built-in display | Yes |
| Display | LCD |
| Colour display | Yes |
| Display diagonal | 6.86 cm (2.7") |
| Control type | Touch |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 380 W |
| Power consumption (max) | 999 W |
| Power consumption (ready) | 33 W |
| Power consumption (PowerSave) | 0.3 W |
| Power consumption (off) | 0.1 W |
| AC input voltage | 120 V |
| AC input frequency | 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | Blue Angel, ENERGY STAR, EPEAT |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 410 mm |
| Depth | 410 mm |
| Height | 329 mm |
| Weight | 21 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 596 mm |
| Package depth | 571 mm |
| Package height | 459 mm |
| Package weight | 28 kg |
Packaging content
| Specification | Value |
|---|---|
| Cartridge(s) included | Yes |
| Included cartridge capacity (black) | 1500 pages |
| Included cartridge capacity (CMY) | 1500 pages |
| Cables included | AC |
| Quick installation guide | Yes |
