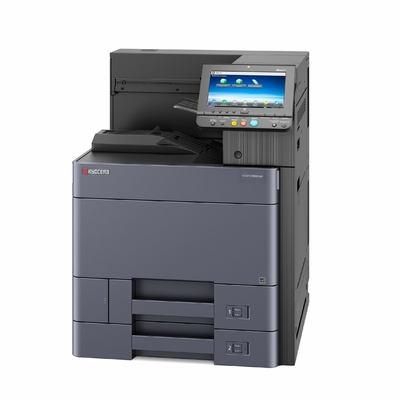

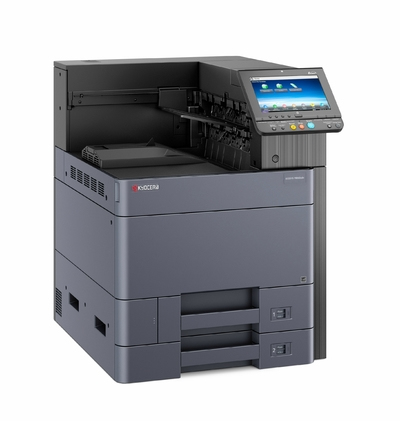

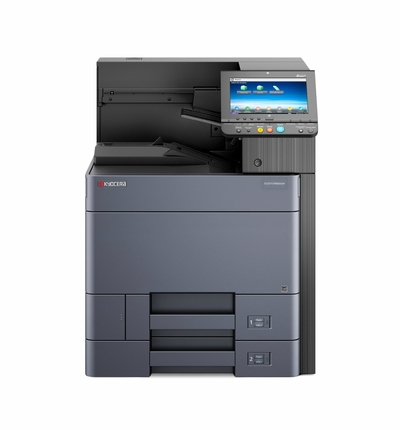

ECOSYS P8060cdn Colour
4800 x 1200 DPI A3+
Model P8060cdnPart no. 1102RR2US0
86 specifications
- Display22.9 cm (9")
- Memory4096 MB
- Storage328 GB
- Noise19 dB
- Weight89 kg
- ColourYes
Overview
- Display
- 22.9 cm (9")
- Memory
- 4096 MB
- Storage
- 328 GB
- Noise
- 19 dB
- Weight
- 89 kg
- Colour
- Yes
- Brand
- Kyocera
- Category
- Laser Printer
- Model
- P8060cdn
- Part number
- 1102RR2US0
- Also known as
- KYOCERA ECOSYS P8060cdn Colour 4800 x 1200 DPI A3+
Specifications
86 specifications in 15 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Print technology | Laser |
| Duplex printing | Yes |
| Duplex printing mode | Auto |
| Maximum resolution | 4800 x 1200 DPI |
| Print resolution colour | 1200 x 1200 DPI |
| Print resolution black | 1200 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) | 60 ppm |
| Print speed (colour, normal quality, A4/US Letter) | 55 ppm |
| Print speed (black, normal quality, A3) | 30 ppm |
| Print speed (colour, normal quality, A3) | 27 ppm |
| Warm-up time | 17 s |
| Time to first page (black, normal) | 3.8 s |
| Time to first page (colour, normal) | 5.1 s |
| Secure printing | Yes |
Features
| Specification | Value |
|---|---|
| Maximum duty cycle | 250000 pages per month |
| Recommended duty cycle | 20000 - 30000 pages per month |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Number of print cartridges | 4 |
| Page description languages | PCL 5c, PCL 6, PCL XL, PDF 1.6, PDF 1.7 |
| Average cartridge yield (CMY) | 20000 pages |
| Average cartridge yield (black) | 30000 pages |
| Replacement cartridges | TK-8800K, TK-8800C, TK-8800M, TK-8800Y |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 2 |
| Total input capacity | 1150 sheets |
| Total output capacity | 500 sheets |
| Paper input type | Cassette |
| Multi-Purpose tray | Yes |
| Multi-Purpose tray input capacity | 150 sheets |
| Maximum number of input trays | 5 |
| Maximum input capacity | 7150 sheets |
| Maximum output capacity | 4000 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3+ |
| Paper tray media types | Bond paper, Card stock, Envelopes, Labels, Plain paper, Recycled paper, Transparencies |
| Multi-purpose tray media types | Banner, Glossy paper, Hole punched paper, Labels, Letterhead, Plain paper, Recycled paper, Thick paper, Thicker paper, Transparencies |
| ISO A-series sizes (A0...A9) | A3, A3+, A4, A5, A6 |
| Paper tray media weight | 52 - 300 g/m² |
| Multi-Purpose Tray media weight | 52 - 300 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | RJ-45, USB 2.0 |
| Direct printing | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 5 |
| Optional connectivity | Wireless LAN |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Network ready | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Mobile printing technologies | Apple AirPrint, Google Cloud Print, Kyocera Mobile Print, Mopria Print Service |
Performance
| Specification | Value |
|---|---|
| Internal memory | 4096 MB |
| Maximum internal memory | 4096 MB |
| Internal storage capacity | 328 GB |
| Storage media | HDD |
| Flash memory | 8 MB |
| Built-in processor | Yes |
| Processor frequency | 1200 MHz |
| Processor cores | 2 |
| Sound pressure level (printing) | 55.5 dB |
| Noise level (ready) | 19 dB |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black |
| Built-in display | Yes |
| Display | LCD |
| Colour display | Yes |
| Display diagonal | 22.9 cm (9") |
| Touchscreen | Yes |
| Control type | Touch |
| Certification | TÜV-GS, CE |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 960 W |
| Power consumption (standby) | 60 W |
| Power consumption (off) | 1 W |
| Energy Star Typical Electricity Consumption (TEC) | 3.28 kWh/week |
| AC input voltage | 220 - 240 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | Blue Angel, ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 602 mm |
| Depth | 665 mm |
| Height | 790 mm |
| Weight | 89 kg |
Packaging content
| Specification | Value |
|---|---|
| Cartridge(s) included | Yes |
| Cables included | AC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84433210 |
Other features
| Specification | Value |
|---|---|
| Power LED | Yes |
| Stand-by LED | Yes |
