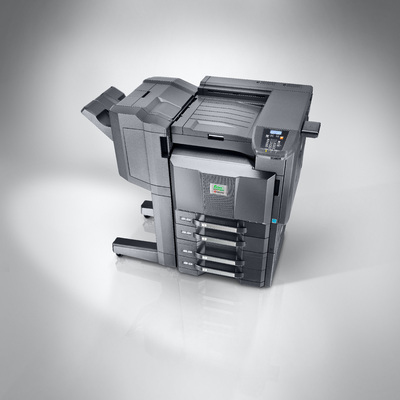

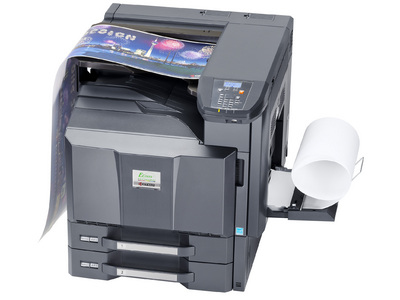

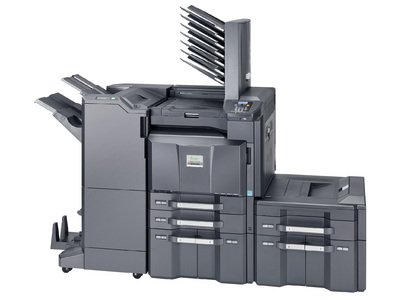

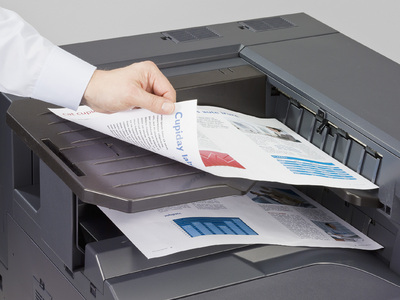

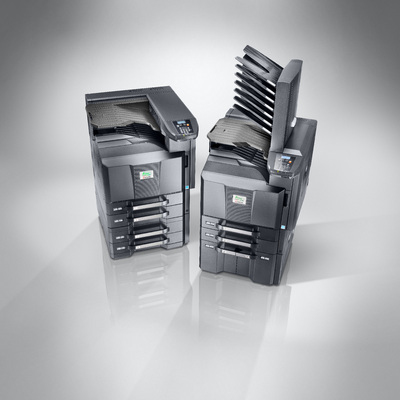

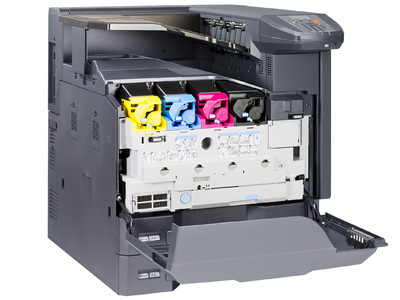

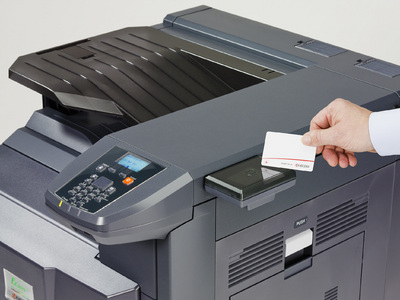

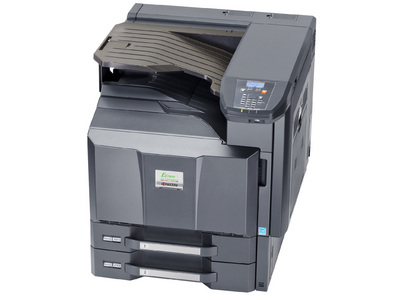

FS-C8600DN Colour
9600 x 600 DPI A3
Model FS-C8600DNPart no. 870B61102N13NL0EAN 632983932230
54 specifications
- ProcessorPowerPC
- Memory1024 MB
- Storage160 GB
- Weight111 kg
- ColourYes
- Printer fontsBitmap, PCL, PostScript
Overview
- Processor
- PowerPC
- Memory
- 1024 MB
- Storage
- 160 GB
- Weight
- 111 kg
- Colour
- Yes
- Printer fonts
- Bitmap, PCL, PostScript
- Brand
- Kyocera
- Category
- Laser Printer
- Model
- FS-C8600DN
- Part numbers
- 870B61102N13NL0, 1102N13NL1
- EAN / UPC
- 632983932230, 632983027035
- Also known as
- KYOCERA FS-C8600DN Colour 9600 x 600 DPI A3
Specifications
54 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Print technology | Laser |
| Duplex printing | Yes |
| Maximum resolution | 9600 x 600 DPI |
| Print speed (black, normal quality, A4/US Letter) | 45 ppm |
| Print speed (black, draft quality, A4/US Letter) | 45 ppm |
| Print speed (black, normal quality, A3) | 22 ppm |
| Print speed (colour, normal quality, A3) | 22 ppm |
| Warm-up time | 30 s |
| Time to first page (black, normal) | 5.4 s |
| Time to first page (colour, normal) | 6.6 s |
Features
| Specification | Value |
|---|---|
| Page description languages | Epson LQ, IBM ProPrinter, PCL 5c, PCL 6, PDF 1.7, PostScript 3 |
| Printer fonts | Bitmap, PCL, PostScript |
| Number of PCL fonts | 93 |
| Number of PostScript fonts | 93 |
| Number of bitmap fonts | 1 |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 2 |
| Total input capacity | 1150 sheets |
| Total output capacity | 750 sheets |
| Maximum input capacity | 7650 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
| Maximum print size | 297 x 420 mm |
| Paper tray media types | Plain paper |
| ISO A-series sizes (A0...A9) | A3, A4, A5 |
| Paper tray media weight | 60 - 256 g/m² |
| Multi-Purpose Tray media weight | 60 - 300 g/m² |
| Duplex media weight | 60 - 256 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | Ethernet, USB 2.0 |
| Direct printing | Yes |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Network ready | Yes |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1024 MB |
| Maximum internal memory | 2048 MB |
| Internal storage capacity | 160 GB |
| Storage media | HDD |
| Built-in processor | Yes |
| Processor family | PowerPC |
| Processor model | 750GL |
| Processor frequency | 750 MHz |
| Sound pressure level (printing) | 52.6 dB |
| Sound power level (standby) | 33.9 dB |
Design
| Specification | Value |
|---|---|
| Display | LCD |
| Certification | TÜV/GS, CE |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 1000 W |
| Power consumption (standby) | 170 W |
| Power consumption (PowerSave) | 15 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 111 kg |
| Dimensions (WxDxH) | 672 x 787 x 744 mm |
Other features
| Specification | Value |
|---|---|
| Fonts included | Yes |
