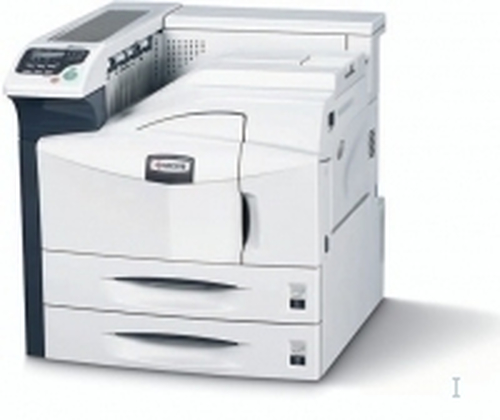

Kyocera FS-9530DN/B A3
Model FS-9530DN/B A3Part no. 870SW1102G13NL1
56 specifications
- ProcessorPowerPC 750FL
- Memory128 MB
- Weight68 kg
- ColourNo
- Maximum duty cycle300.000 pages per month
- Total input capacity1000 sheets
Overview
- Processor
- PowerPC 750FL
- Memory
- 128 MB
- Weight
- 68 kg
- Colour
- No
- Maximum duty cycle
- 300.000 pages per month
- Total input capacity
- 1000 sheets
- Brand
- Kyocera
- Category
- Laser Printer
- Model
- FS-9530DN/B A3
- Part number
- 870SW1102G13NL1
- Also known as
- KYOCERA FS-9530DN/B A3 1800 x 600 DPI
Specifications
56 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
| Print technology | Laser |
| Duplex printing | Yes |
| Maximum resolution | 1800 x 600 DPI |
| Print speed (black, normal quality, A4/US Letter) | 51 ppm |
| Warm-up time | 60 s |
| Time to first page (black, normal) | 3.5 s |
Features
| Specification | Value |
|---|---|
| Maximum duty cycle | 300.000 pages per month |
| Number of print cartridges | 1 |
| Printer fonts | Barcode, Bitmap, PCL, PostScript |
| Number of PostScript fonts | 136 |
| Number of bitmap fonts | 1 |
Input & output capacity
| Specification | Value |
|---|---|
| Total input capacity | 1000 sheets |
| Total output capacity | 500 sheets |
| Paper tray 2 input capacity | 200 sheets |
| Maximum input capacity | 4200 sheets |
| Maximum output capacity | 500 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
| Maximum print size | 297 x 420 mm |
| Paper tray media types | Plain paper |
| ISO A-series sizes (A0...A9) | A3, A4 |
| ISO B-series sizes (B0...B9) | B4, B5 |
| Duplex media weight | 60 - 80 g/m² |
| Media weight (tray 1) | 60-105 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | Ethernet, USB 2.0 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Network ready | Yes |
| Mobile printing technologies | Not supported |
Performance
| Specification | Value |
|---|---|
| Internal memory | 128 MB |
| Maximum internal memory | 640 MB |
| Built-in processor | Yes |
| Processor model | PowerPC 750FL |
| Processor frequency | 600 MHz |
| Sound pressure level (printing) | 51 dB |
| Sound power level (standby) | 37 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Beige, Black |
| Built-in display | No |
| Certification | TÜV/GS, CE, PTS |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 900 W |
| Power consumption (standby) | 180 W |
| Power consumption (PowerSave) | 4.5 W |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 599 mm |
| Depth | 646 mm |
| Height | 615 mm |
| Weight | 68 kg |
Other features
| Specification | Value |
|---|---|
| Power requirements | AC 220 ~ 240 V, 50/60 Hz |
| Emulations | PCL6/PCL5e incl. PJL, PostScript 3 (KPDL 3), (AES), HP-7550A (KC-GL), IBM Proprinter X24E, Epson LQ-850, Diablo 630 |
| Fonts included | Yes |
| Networking features | Fast Ethernet 10/100Base-TX |
| Custom media sizes | (88x148 mm) - (297x450 mm) |
| Standard media sizes | A3, A4, A4R, A5R, B4, B5, B5R, Letter, Letter-R, Legal, Ledger, Folio, STMT |
| Duplex supported media size | A3, A4, A4R, A5R, B4, B5, B5R, Letter, Letter-R, Legal, Ledger |
| Media size (tray 2) | A3-A6R |
| Media weight (tray 2) | 45-200 g/m2 |
