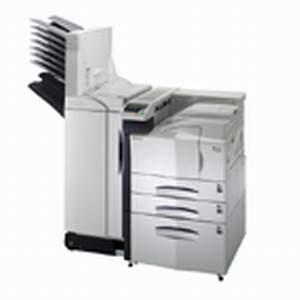

FS-9520DN A3
Model FS-9520DNPart no. 042FH513
35 specifications
- ProcessorPower PC 750CX
- Memory64 MB
- Storage20 GB
- Weight67 kg
- ColourNo
- Maximum duty cycle55000 pages per month
Overview
- Processor
- Power PC 750CX
- Memory
- 64 MB
- Storage
- 20 GB
- Weight
- 67 kg
- Colour
- No
- Maximum duty cycle
- 55000 pages per month
- Brand
- Kyocera
- Category
- Laser Printer
- Model
- FS-9520DN
- Part number
- 042FH513
- Also known as
- KYOCERA FS-9520DN A3
Specifications
35 specifications in 9 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
| Print technology | Laser |
| Print speed (black, normal quality, A4/US Letter) | 51 ppm |
| Warm-up time | 25 s |
| Time to first page (black, normal) | 5 s |
Features
| Specification | Value |
|---|---|
| Maximum duty cycle | 55000 pages per month |
Input & output capacity
| Specification | Value |
|---|---|
| Total input capacity | 700 sheets |
| Total output capacity | 500 sheets |
| Paper tray 2 input capacity | 200 sheets |
| Maximum input capacity | 4200 sheets |
| Maximum output capacity | 500 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
| Maximum print size | 297 x 420 mm |
Performance
| Specification | Value |
|---|---|
| Internal memory | 64 MB |
| Maximum internal memory | 576 MB |
| Memory slots | 2 |
| Internal storage capacity | 20 GB |
| Storage media | HDD |
| Built-in processor | Yes |
| Processor model | Power PC 750CX |
| Processor frequency | 500 MHz |
| Sound pressure level (printing) | 54 dB |
| Sound power level (standby) | 39 dB |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 160 W |
| Power consumption (PowerSave) | 12 W |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 67 kg |
| Dimensions (WxDxH) | 585 x 639 x 615 mm |
Other features
| Specification | Value |
|---|---|
| Power requirements | AC 220/240 V 50/60 Hz |
| Standard input trays | 500 |
| I/O ports | 1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot |
| Custom media sizes | 88 x 148 mm - 297 x 450 mm |
| Standard media sizes | A3, A4, A4-R, A5, B4, B5, B5-R, Letter, Letter-R, Legal, Ledger, Folio |
| Recommended media weight | 60 - 105 g/m² |
| Power consumption (active) | 940 W |
