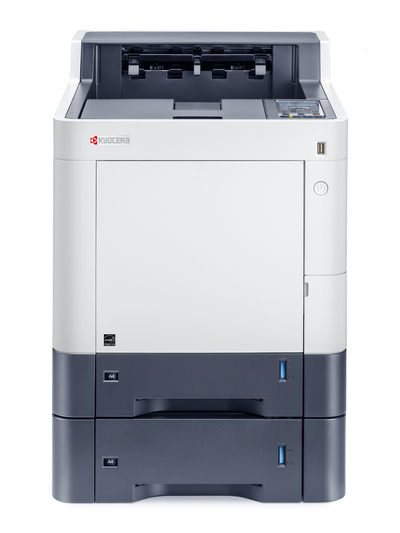

Kyocera ECOSYS P6235cdn
Model ECOSYS P6235cdnPart no. 1102TW3NL0EAN 632983933947
77 specifications
- ProcessorARM Cortex
- Memory1000 MB
- Weight29.5 kg
- ColourYes
- Maximum duty cycle15000 pages per month
- Total number of input trays1
Overview
- Processor
- ARM Cortex
- Memory
- 1000 MB
- Weight
- 29.5 kg
- Colour
- Yes
- Maximum duty cycle
- 15000 pages per month
- Total number of input trays
- 1
- Brand
- Kyocera
- Category
- Laser Printer
- Model
- ECOSYS P6235cdn
- Part numbers
- 1102TW3NL0, 870B61102TW3NL0, ECOSYS P6235CDN
- EAN / UPC
- 632983933947
- Also known as
- KYOCERA ECOSYS P6235cdn Colour 9600 x 600 DPI A4
Specifications
77 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Print technology | Laser |
| Duplex printing | Yes |
| Duplex printing mode | Auto |
| Maximum resolution | 9600 x 600 DPI |
| Print resolution colour | 1200 x 1200 DPI |
| Print resolution black | 1200 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) | 35 ppm |
| Duplex print speed (black, normal quality, A4/US Letter) | 32 ppm |
| Warm-up time | 25 s |
| Time to first page (black, normal) | 6.5 s |
| Time to first page (colour, normal) | 7.5 s |
| Secure printing | Yes |
Features
| Specification | Value |
|---|---|
| Maximum duty cycle | 15000 pages per month |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Number of print cartridges | 4 |
| Page description languages | PCL 5c, PCL 6, PCL XL, PostScript 3, XPS |
| Replacement cartridges | TK-5280K, TK-5280M, TK-5280Y, TK-5280C |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 1 |
| Total input capacity | 500 sheets |
| Total output capacity | 500 sheets |
| Paper input type | Cassette, Paper tray |
| Multi-Purpose tray | Yes |
| Multi-Purpose tray input capacity | 100 sheets |
| Maximum input capacity | 2100 sheets |
| Maximum output capacity | 500 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Maximum print size | 216 x 356 mm |
| Paper tray media types | Plain paper |
| Multi-purpose tray media types | Legal, Letter, Plain paper |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5, B6 |
| Non-ISO print media sizes | Folio, Ledger (media size), Legal, Letter |
| Custom media width | 70 - 216 mm |
| Custom media length | 148 - 356 mm |
| Paper tray media weight | 60 - 163 g/m² |
| Multi-Purpose Tray media weight | 60 - 220 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | RJ-45, USB 2.0 |
| Direct printing | Yes |
| USB port | Yes |
| Optional connectivity | Wireless LAN |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Network ready | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Security algorithms | 802.1x RADIUS, HTTPS, IPPS, IPSEC, SNMPv3 |
| Mobile printing technologies | Apple AirPrint, Google Cloud Print, Kyocera Mobile Print, Mopria Print Service |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1000 MB |
| Maximum internal memory | 3000 MB |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC |
| Built-in processor | Yes |
| Processor family | ARM Cortex |
| Processor model | A9 |
| Processor frequency | 1200 MHz |
| Processor cores | 2 |
| Sound pressure level (printing) | 52 dB |
| Sound pressure level (quiet mode) | 47.7 dB |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black, White |
| Built-in display | Yes |
| Display | LCD |
| Colour display | No |
| Certification | TÜV/GS, CE |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 523 W |
| Power consumption (ready) | 74 W |
| Power consumption (standby) | 0.6 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 390 mm |
| Depth | 532 mm |
| Height | 469.5 mm |
| Weight | 29.5 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84433210 |
