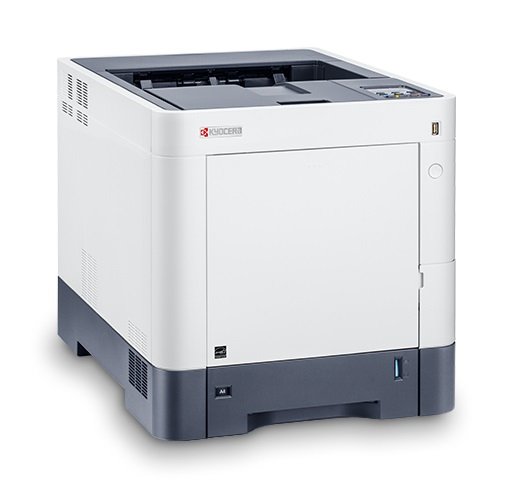

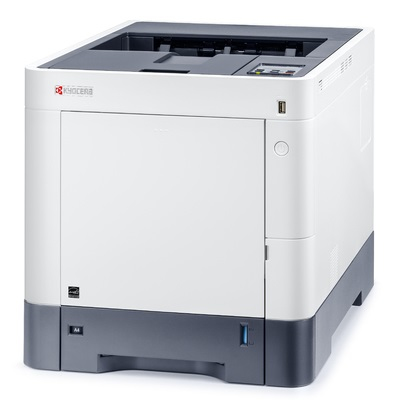

Kyocera ECOSYS P6230cdn/KL3

Kyocera ECOSYS P6230cdn/KL3

Model ECOSYS P6230cdn/KL3Part no. 1102TV3AS1EAN 632983934296

104 specifications
  • ProcessorARM Cortex
  • Memory1024 MB
  • Storage128 GB
  • Weight28.3 kg
  • ColourYes
  • Maximum duty cycle10000 pages per month
See all specifications

Overview

Processor
ARM Cortex
Memory
1024 MB
Storage
128 GB
Weight
28.3 kg
Colour
Yes
Maximum duty cycle
10000 pages per month
Brand
Kyocera
Model
ECOSYS P6230cdn/KL3
Part numbers
1102TV3AS1, 870B61102TV3NLX
EAN / UPC
632983934296
Also known as
KYOCERA ECOSYS P6230cdn/KL3 Colour 9600 x 600 DPI A4

Specifications

104 specifications in 15 groups

Printing

ColourYes
Print technologyLaser
Duplex printingYes
Duplex printing modeAuto
Maximum resolution9600 x 600 DPI
Print resolution colour1200 x 1200 DPI
Print resolution black1200 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)30 ppm
Print speed (colour, normal quality, A4/US Letter)30 ppm
Duplex print speed (black, normal quality, A4/US Letter)15 ppm
Duplex print speed (colour, normal quality, A4/US Letter)15 ppm
Warm-up time26 s
Time to first page (black, normal)6 s
Time to first page (colour, normal)7 s
Economical printingYes

Features

Maximum duty cycle10000 pages per month
Printing coloursBlack, Cyan, Magenta, Yellow
Number of print cartridges4
Page description languagesPCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3, XPS
Number of printer fonts93
Replacement cartridgesTK-5270K, TK-5270C, TK-5270M, TK-5270Y

Input & output capacity

Total number of input trays1
Total input capacity500 sheets
Total output capacity250 sheets
Paper tray 1 input capacity500 sheets
Paper input typeCassette, Paper tray
Multi-Purpose trayYes
Multi-Purpose tray input capacity100 sheets
Maximum input capacity2100 sheets
Maximum output capacity250 sheets

Paper handling

Maximum ISO A-series paper sizeA4
Maximum print size216 x 356 mm
Paper tray media typesPlain paper
Multi-purpose tray media typesLegal, Letter, Plain paper
ISO A-series sizes (A0...A9)A4, A5, A6
ISO B-series sizes (B0...B9)B5, B6
Non-ISO print media sizesFolio, Legal, Letter
Custom media width70 - 216 mm
Custom media length148 - 356 mm
Paper tray media weight60 - 163 g/m²
Multi-Purpose Tray media weight60 - 220 g/m²
Duplex media weight60 - 163 g/m²

Ports & interfaces

Direct printingYes
USB portYes
Optional connectivityWireless LAN

Network

Wi-FiNo
Ethernet LANYes
Network readyYes
Cabling technology10/100/1000Base-T(X)
Ethernet LAN data rates10,100,1000 Mbit/s
Security algorithms802.1x RADIUS, HTTPS, IPPS, IPSEC, SNMPv3
Mobile printing technologiesApple AirPrint, Google Cloud Print, Kyocera Mobile Print, Mopria Print Service

Performance

Internal memory1024 MB
Maximum internal memory1024 MB
Internal storage capacity128 GB
Storage mediaSSD
Card reader integratedYes
Compatible memory cardsSD, SDHC
Built-in processorYes
Processor familyARM Cortex
Processor modelA9
Processor frequency1200 MHz
Processor cores2
CoprocessorYes
Coprocessor frequency100 GHz
Sound pressure level (printing)50.2 dB
Sound pressure level (quiet mode)45.4 dB

Design

Market positioningBusiness
Product colourBlack, White
Built-in displayYes
DisplayLCD
Colour displayNo
TouchscreenNo
Control typeButtons
Display number of lines2 lines
CertificationTÜV-GS, CE

Power

Power consumption (printing)466 W
Power consumption (ready)56 W
Power consumption (standby)0.6 W
Energy Star Typical Electricity Consumption (TEC)1.38 kWh/week
AC input voltage220 - 240 V
AC input frequency50 Hz

System requirements

Windows operating systems supportedYes
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supportedYes

Operational conditions

Operating temperature (T-T)10 - 32.5 °C
Storage temperature (T-T)-20 - 40 °C
Operating relative humidity (H-H)15 - 80%
Storage relative humidity (H-H)10 - 90%
Operating altitude0 - 3500 m
Non-operating altitude0.6 - 15000 m

Sustainability

Sustainability certificatesBlue Angel, ENERGY STAR

Weight & dimensions

Width390 mm
Depth532 mm
Height410 mm
Weight28.3 kg

Packaging content

Cartridge(s) includedYes
Included cartridge capacity (black)3500 pages
Included cartridge capacity (CMY)2500 pages
Cables includedAC

Other features

Media thickness0.11 mm
Power LEDYes
Quantity per pack1 pc(s)
Stand-by LEDYes
