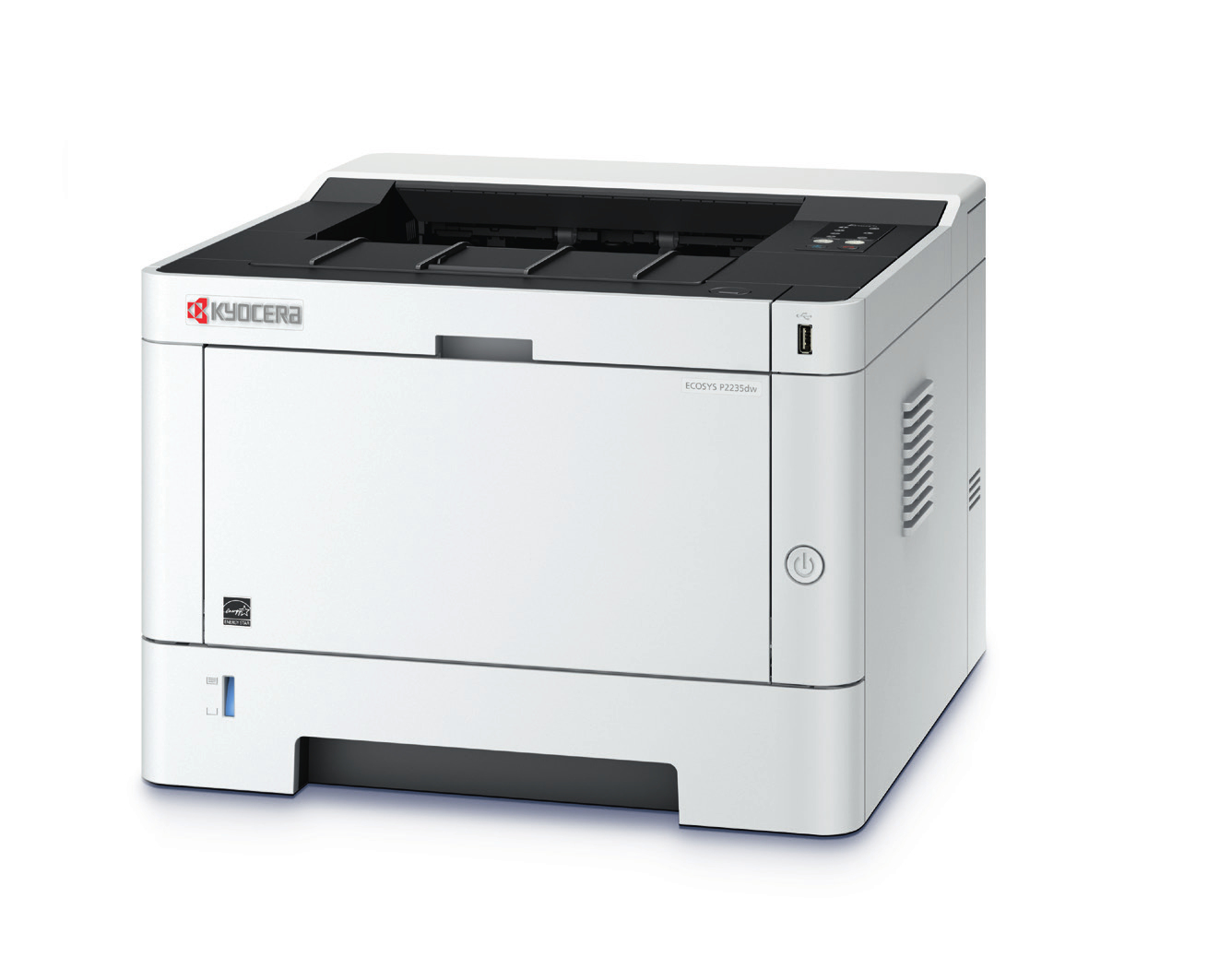

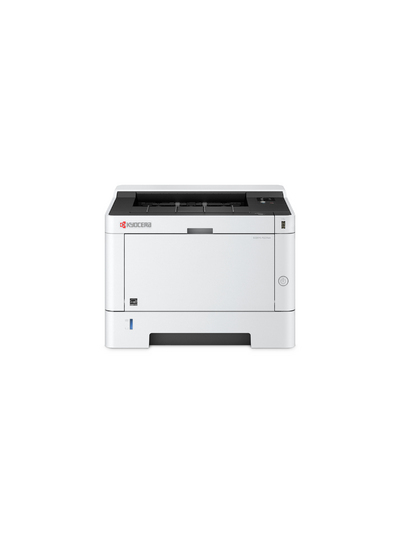

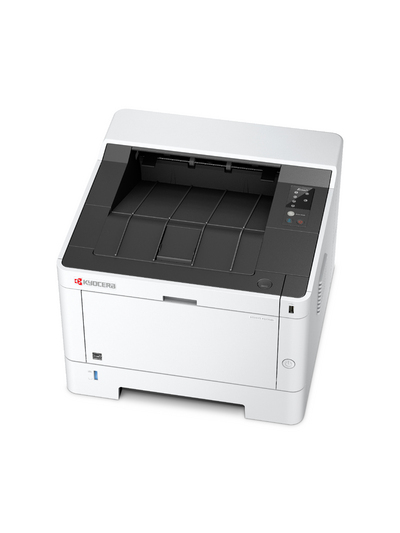

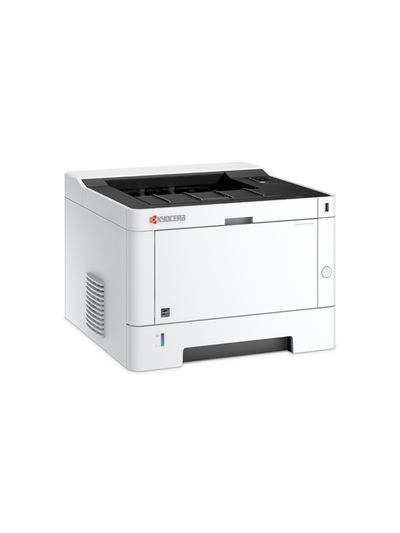

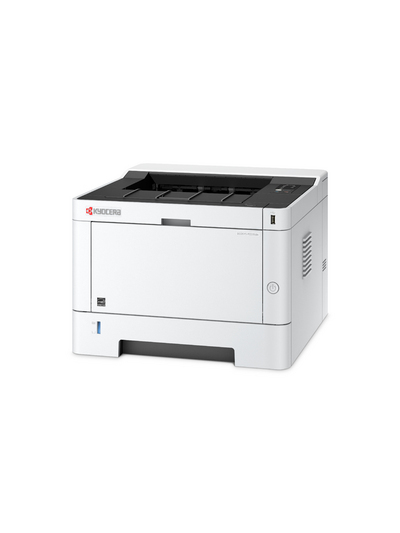

Kyocera ECOSYS P2235dn
Model ECOSYS P2235dnPart no. 1102RV3AS0
73 specifications
- Memory256 MB
- Weight14 kg
- ColourNo
- Maximum duty cycle20000 pages per month
- Total number of input trays1
- Maximum ISO A-series paper sizeA4
Overview
- Memory
- 256 MB
- Weight
- 14 kg
- Colour
- No
- Maximum duty cycle
- 20000 pages per month
- Total number of input trays
- 1
- Maximum ISO A-series paper size
- A4
- Brand
- Kyocera
- Category
- Laser Printer
- Model
- ECOSYS P2235dn
- Part number
- 1102RV3AS0
- Also known as
- KYOCERA ECOSYS P2235dn 1200 x 1200 DPI A4
Specifications
73 specifications in 15 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
| Print technology | Laser |
| Duplex printing | Yes |
| Duplex printing mode | Auto |
| Maximum resolution | 1200 x 1200 DPI |
| Print resolution black | 1200 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) | 35 ppm |
| Warm-up time | 15 s |
| Time to first page (black, normal) | 6.8 s |
| Economical printing | Yes |
Features
| Specification | Value |
|---|---|
| Maximum duty cycle | 20000 pages per month |
| Recommended duty cycle | 1500 - 2500 pages per month |
| Printing colours | Black |
| Number of print cartridges | 1 |
| Page description languages | OpenXPS, PCL 5e, PCL 6, PCL XL, PostScript 3, XPS |
| Replacement cartridges | TK-1150 (3.000 pagina's) |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 1 |
| Total input capacity | 250 sheets |
| Total output capacity | 250 sheets |
| Multi-Purpose tray | Yes |
| Multi-Purpose tray input capacity | 100 sheets |
| Maximum number of input trays | 3 |
| Maximum input capacity | 850 sheets |
| Maximum output capacity | 250 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Paper tray media types | Plain paper |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5, B6 |
| Non-ISO print media sizes | Legal, Letter |
| Custom media width | 70 - 216 mm |
| Custom media length | 148 - 356 mm |
| Paper tray media weight | 60 - 163 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Direct printing | Yes |
| USB port | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Security algorithms | 802.1x RADIUS, HTTPS, IPPS, IPSec, SNMPv3 |
| Mobile printing technologies | Apple AirPrint, Google Cloud Print, Kyocera Mobile Print, Mopria Print Service |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Maximum internal memory | 256 MB |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC |
| Built-in processor | Yes |
| Sound pressure level (printing) | 47.9 dB |
| Sound pressure level (quiet mode) | 44.8 dB |
Design
| Specification | Value |
|---|---|
| Market positioning | Home & office |
| Product colour | Black, White |
| Built-in display | No |
| Certification | TÜV/GS, CE, ISO 9001 |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 620 W |
| Power consumption (ready) | 8 W |
| Power consumption (off) | 0.8 W |
| Energy Star Typical Electricity Consumption (TEC) | 1.36 kWh/week |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 375 mm |
| Depth | 393 mm |
| Height | 272 mm |
| Weight | 14 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 500 mm |
| Package depth | 516 mm |
| Package height | 400 mm |
| Package weight | 18 kg |
Packaging content
| Specification | Value |
|---|---|
| Cartridge(s) included | Yes |
| Included cartridge capacity (black) | 1000 pages |
| Cables included | AC |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
