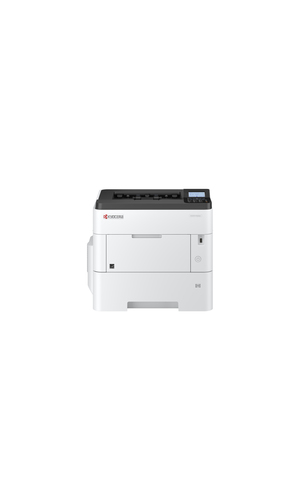

870B61102WD3NL2 laser printer
1200 x 1200 DPI A4
Model 870B61102WD3NL2EAN 632983935484
108 specifications
- ProcessorARM Cortex
- Memory512 MB
- Weight15.9 kg
- ColourNo
- Maximum duty cycle300000 pages per month
- Total number of input trays1
Overview
- Processor
- ARM Cortex
- Memory
- 512 MB
- Weight
- 15.9 kg
- Colour
- No
- Maximum duty cycle
- 300000 pages per month
- Total number of input trays
- 1
- Brand
- Kyocera
- Category
- Laser Printer
- Model
- 870B61102WD3NL2
- Part number
- 870B61102WD3NL2
- EAN / UPC
- 632983935484
- Also known as
- KYOCERA 870B61102WD3NL2 laser printer 1200 x 1200 DPI A4
Specifications
108 specifications in 18 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
| Print technology | Laser |
| Duplex printing | Yes |
| Duplex printing mode | Auto |
| Maximum resolution | 1200 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) | 60 ppm |
| Print speed (black, draft quality, A4/US Letter) | 60 ppm |
| Duplex print speed (black, normal quality, A4/US Letter) | 43 ppm |
| Warm-up time | 25 s |
| Time to first page (black, normal) | 4.5 s |
Features
| Specification | Value |
|---|---|
| Maximum duty cycle | 300000 pages per month |
| Recommended duty cycle | 15000 - 25000 pages per month |
| Printing colours | Black |
| Number of print cartridges | 1 |
| Page description languages | PCL 5e, PCL 6, PCL XL, XPS |
| Number of printer fonts | 93 |
| Average cartridge yield (black) | 40000 pages |
| Replacement cartridges | TK-3160 (toner, 12.500 afdrukken 5% dekking) TK-3170 (toner, 15.500 afdrukken 5% dekking) TK-3190 (toner, 25.000 afdrukken 5% dekking) TK-3200 (toner, 40.000 afdrukken 5% dekking) |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 1 |
| Total input capacity | 500 sheets |
| Total output capacity | 500 sheets |
| Paper tray 1 input capacity | 500 sheets |
| Paper input type | Cassette |
| Multi-Purpose tray | Yes |
| Multi-Purpose tray input capacity | 100 sheets |
| Maximum number of input trays | 5 |
| Maximum input capacity | 2600 sheets |
| Maximum output capacity | 500 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Maximum print size | 216 x 356 mm |
| Paper tray media types | Plain paper |
| Multi-purpose tray media types | Banner |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5 |
| Non-ISO print media sizes | Legal, Letter |
| Custom media width | 105 - 216 mm |
| Custom media length | 148 - 356 mm |
| Paper tray media weight | 60 - 120 g/m² |
| Multi-Purpose Tray media weight | 60 - 220 g/m² |
| Duplex media weight | 60 - 120 g/m² |
| Maximum media length | 91.5 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Direct printing | Yes |
| USB port | Yes |
| Number of expansion slots | 1 |
| Optional connectivity | Ethernet, Parallel, Wireless LAN |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Network ready | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | No |
| Near Field Communication (NFC) | No |
| Management protocols | IPsec, HTTPS, IPPS, POP over SSL, SMTP over SSL |
| Mobile printing technologies | Apple AirPrint, Google Cloud Print, Kyocera Mobile Print, Mopria Print Service |
Performance
| Specification | Value |
|---|---|
| Internal memory | 512 MB |
| Maximum internal memory | 2500 MB |
| Memory slots | 2 |
| Memory type | DDR3 |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC |
| Built-in processor | Yes |
| Processor family | ARM Cortex |
| Processor model | A9 |
| Processor frequency | 1200 MHz |
| Processor cores | 2 |
| Sound pressure level (printing) | 56 dB |
| Sound pressure level (quiet mode) | 50.4 dB |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black, White |
| Built-in display | Yes |
| Display | LCD |
| Colour display | No |
| Touchscreen | No |
| Control type | Buttons |
| Display number of lines | 5 lines |
| Certification | TUV-GS, CE |
Certificates
| Specification | Value |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Supplier features
| Specification | Value |
|---|---|
| Product or Article Information Sheet available? | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 721 W |
| Power consumption (max) | 1242 W |
| Power consumption (standby) | 11 W |
| Power consumption (PowerSave) | 0.7 W |
| Power consumption (off) | 0.07 W |
| Energy Star Typical Electricity Consumption (TEC) | 2.99 kWh/week |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 32.5 °C |
| Storage temperature (T-T) | -20 - 40 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3500 m |
| Non-operating altitude | 0.6 - 15000 m |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | Blue Angel, EPEAT Silver, ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 410 mm |
| Depth | 416 mm |
| Height | 363 mm |
| Weight | 15.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 549 mm |
| Package depth | 517 mm |
| Package height | 455 mm |
| Package weight | 20 kg |
Packaging content
| Specification | Value |
|---|---|
| Cartridge(s) included | Yes |
| Included cartridge capacity (black) | 11000 pages |
| Cables included | AC |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
