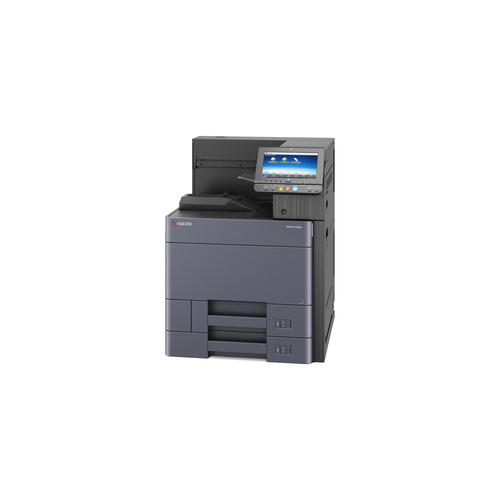

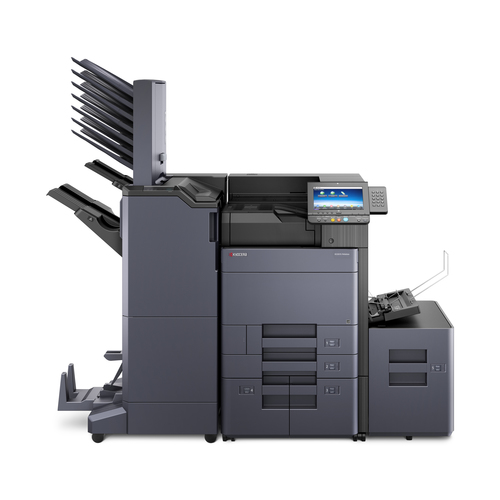

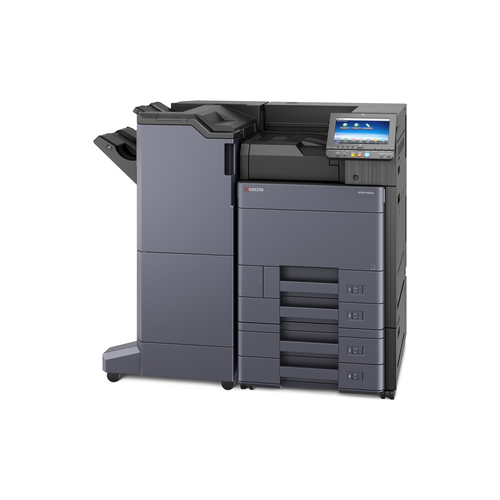

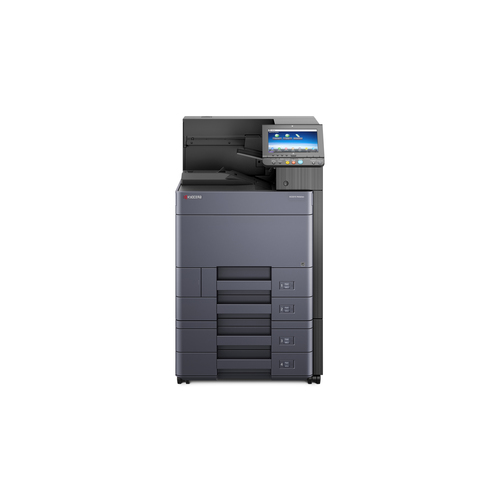

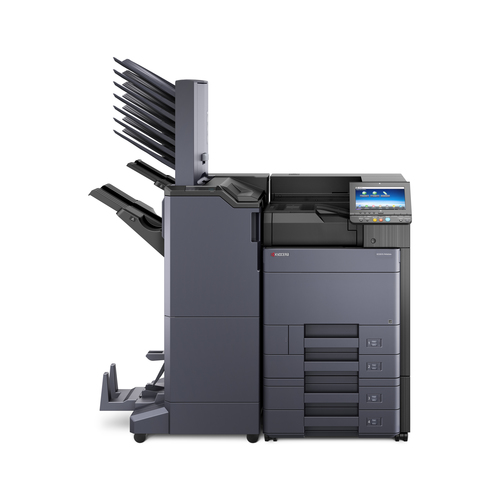

870B61102RS3NL2 laser printer
1200 x 1200 DPI A3+
Model 870B61102RS3NL2EAN 632983935507
95 specifications
- Display22.9 cm (9")
- Memory4096 MB
- Storage328 GB
- Weight77 kg
- ColourNo
- Maximum duty cycle300000 pages per month
Overview
- Display
- 22.9 cm (9")
- Memory
- 4096 MB
- Storage
- 328 GB
- Weight
- 77 kg
- Colour
- No
- Maximum duty cycle
- 300000 pages per month
- Brand
- Kyocera
- Category
- Laser Printer
- Model
- 870B61102RS3NL2
- Part number
- 870B61102RS3NL2
- EAN / UPC
- 632983935507
- Also known as
- KYOCERA 870B61102RS3NL2 laser printer 1200 x 1200 DPI A3+
Specifications
95 specifications in 15 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
| Print technology | Laser |
| Duplex printing | Yes |
| Duplex printing mode | Auto |
| Maximum resolution | 1200 x 1200 DPI |
| Print resolution black | 1200 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) | 60 ppm |
| Print speed (black, normal quality, A3) | 30 ppm |
| Duplex print speed (black, normal quality, A4/US Letter) | 60 ppm |
| Warm-up time | 17 s |
| Time to first page (black, normal) | 3.8 s |
| Economical printing | Yes |
Features
| Specification | Value |
|---|---|
| Maximum duty cycle | 300000 pages per month |
| Recommended duty cycle | 15000 - 30000 pages per month |
| Printing colours | Black |
| Number of print cartridges | 1 |
| Page description languages | PCL 5e, PCL 6, PCL XL, PostScript 3, XPS |
| Printer fonts | Barcode, Bitmap, PCL, PostScript, Windows |
| Replacement cartridges | TK-6330 (32.000 pagina's) |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 2 |
| Total input capacity | 1000 sheets |
| Total output capacity | 500 sheets |
| Paper tray 1 input capacity | 500 sheets |
| Paper tray 2 input capacity | 500 sheets |
| Multi-Purpose tray | Yes |
| Multi-Purpose tray input capacity | 150 sheets |
| Maximum number of input trays | 5 |
| Maximum input capacity | 7150 sheets |
| Maximum output capacity | 4300 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3+ |
| Maximum print size | 320 x 457 mm |
| Paper tray media types | Plain paper |
| ISO A-series sizes (A0...A9) | A3, A3+, A4, A4+, A5, A6 |
| ISO B-series sizes (B0...B9) | B4, B5 |
| Non-ISO print media sizes | Ledger (media size), Legal, Letter |
| Envelopes sizes | C5, DL, Monarch |
| Custom media width | 98 - 148 mm |
| Custom media length | 320 - 457 mm |
| Paper tray media weight | 52 - 300 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Direct printing | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 4 |
| Optional connectivity | Ethernet, Wireless LAN |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Network ready | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | No |
| Near Field Communication (NFC) | No |
| Mobile printing technologies | Apple AirPrint, Google Cloud Print, Kyocera Mobile Print, Mopria Print Service |
Performance
| Specification | Value |
|---|---|
| Internal memory | 4096 MB |
| Maximum internal memory | 4096 MB |
| Internal storage capacity | 328 GB |
| Storage media | HDD |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC |
| Built-in processor | Yes |
| Sound pressure level (printing) | 55.8 dB |
| Sound power level (standby) | 32.4 dB |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black, Grey |
| Built-in display | Yes |
| Display | LCD |
| Colour display | Yes |
| Display diagonal | 22.9 cm (9") |
| Control type | Touch |
| Certification | TUV-GS, CE |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 820 W |
| Power consumption (ready) | 40 W |
| Power consumption (PowerSave) | 1 W |
| Energy Star Typical Electricity Consumption (TEC) | 3.15 kWh/week |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 32.5 °C |
| Storage temperature (T-T) | -20 - 40 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3500 m |
| Non-operating altitude | 0.6 - 15000 m |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | Blue Angel, ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 665 mm |
| Depth | 602 mm |
| Height | 790 mm |
| Weight | 77 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 814 mm |
| Package depth | 752 mm |
| Package height | 1109 mm |
| Package weight | 100 kg |
Packaging content
| Specification | Value |
|---|---|
| Cartridge(s) included | Yes |
| Included cartridge capacity (black) | 16000 pages |
| Cables included | AC |
