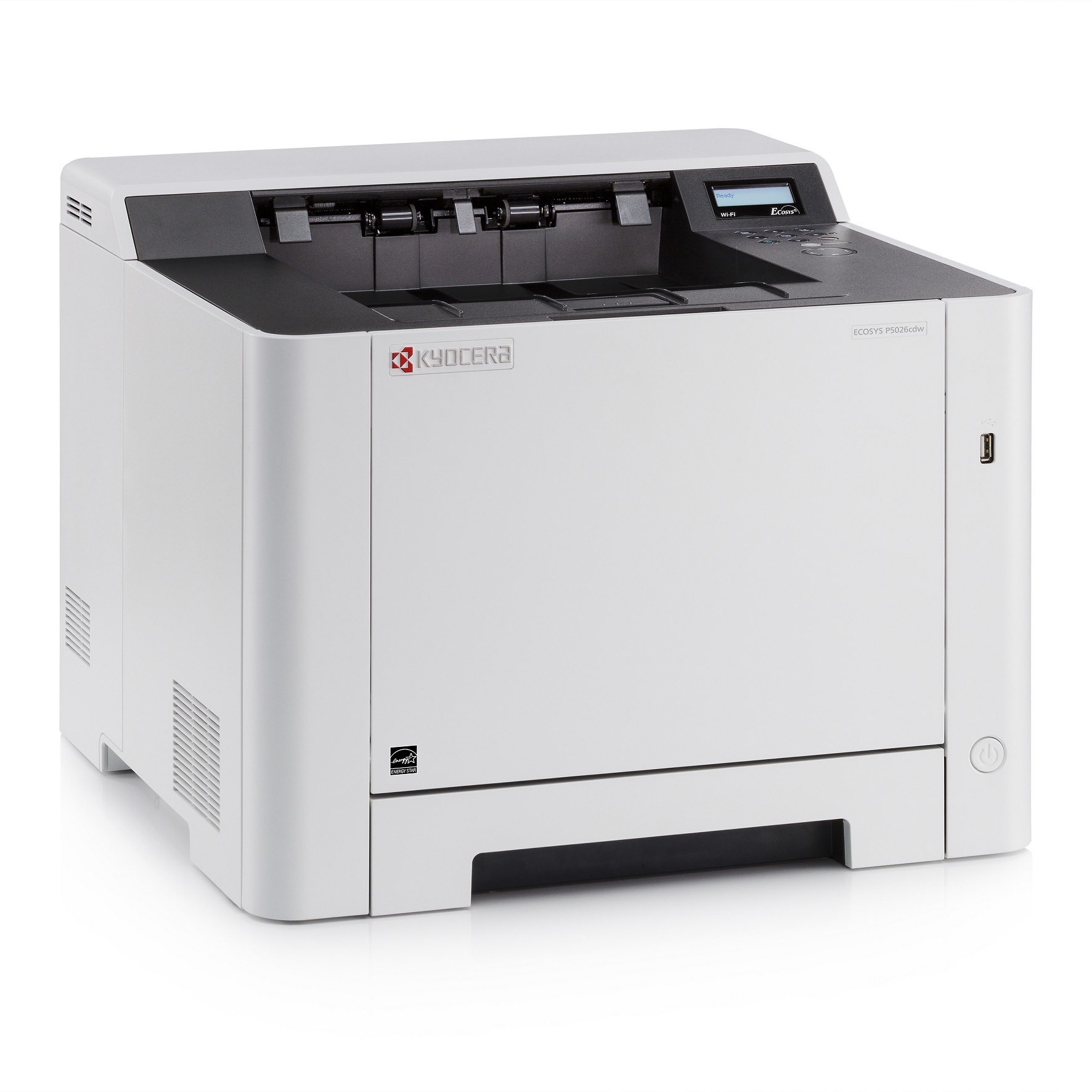

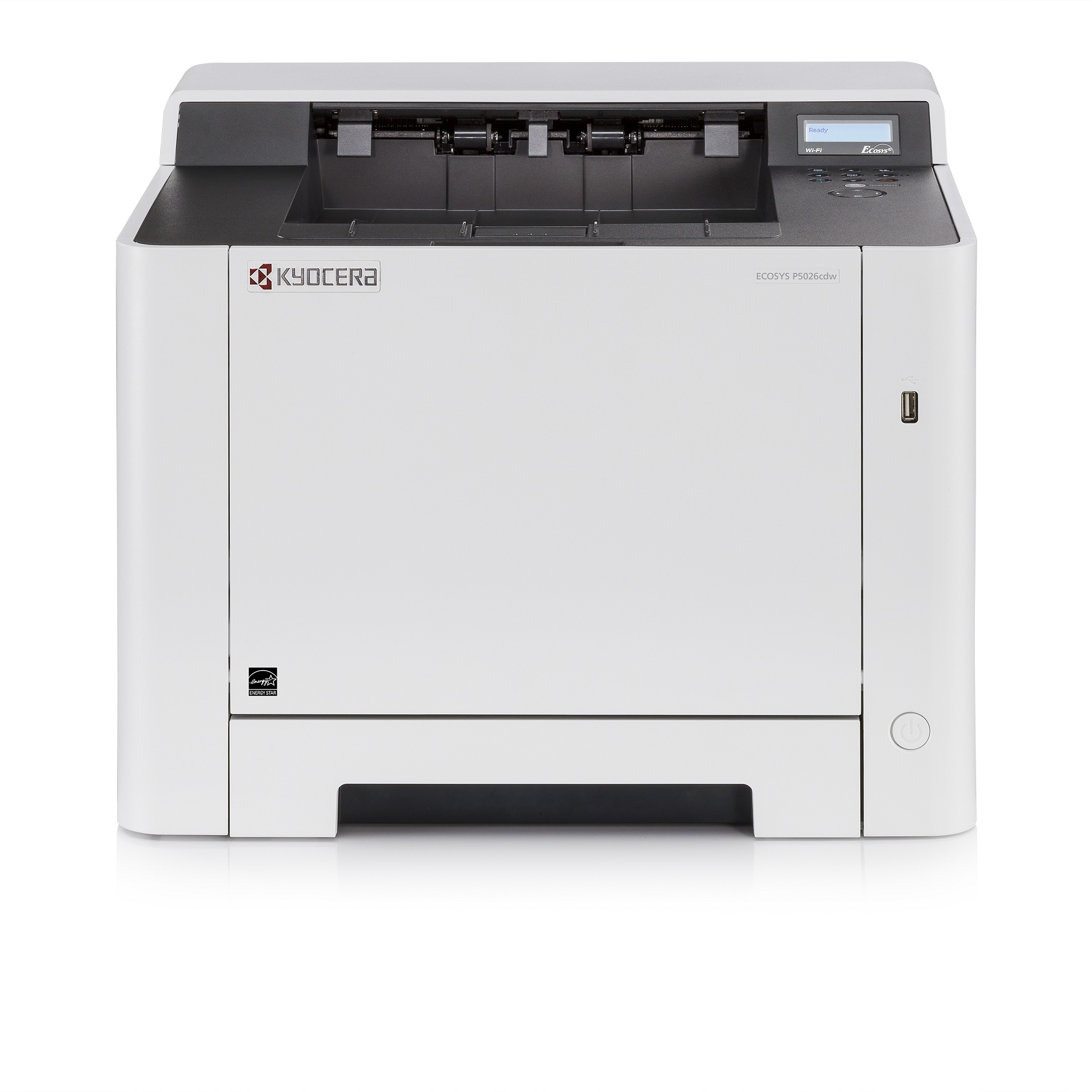

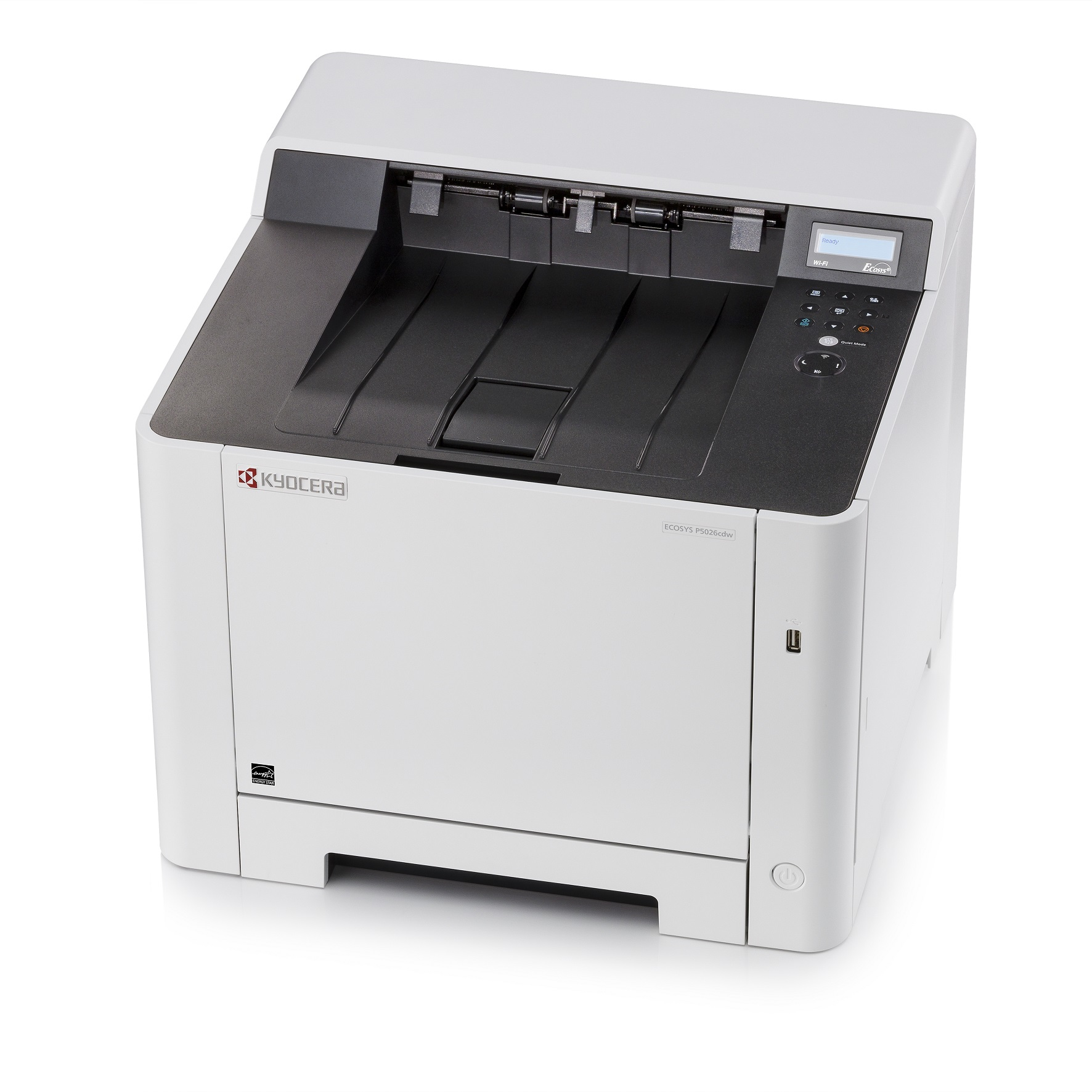

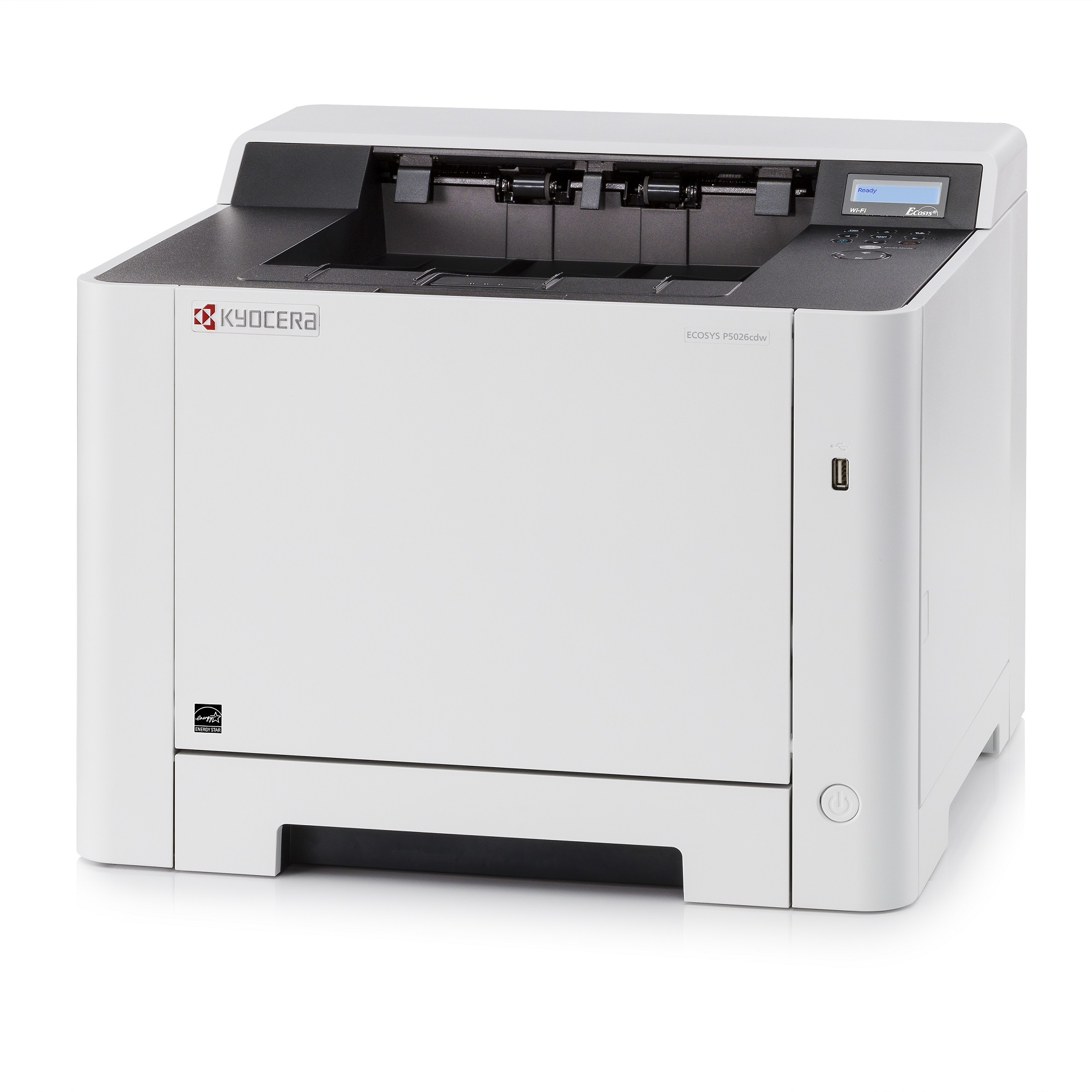

870B61102RB3NL2 laser printer Colour
9600 x 600 DPI A4 Wi-Fi
Model 870B61102RB3NL2EAN 632983935538
102 specifications
- ProcessorARM Cortex
- Memory512 MB
- Weight21 kg
- ColourYes
- Maximum duty cycle50000 pages per month
- Total number of input trays1
Overview
- Processor
- ARM Cortex
- Memory
- 512 MB
- Weight
- 21 kg
- Colour
- Yes
- Maximum duty cycle
- 50000 pages per month
- Total number of input trays
- 1
- Brand
- Kyocera
- Category
- Laser Printer
- Model
- 870B61102RB3NL2
- Part number
- 870B61102RB3NL2
- EAN / UPC
- 632983935538
- Also known as
- KYOCERA 870B61102RB3NL2 laser printer Colour 9600 x 600 DPI A4 Wi-Fi
Specifications
102 specifications in 17 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Print technology | Laser |
| Duplex printing | Yes |
| Duplex printing mode | Auto |
| Maximum resolution | 9600 x 600 DPI |
| Print speed (black, normal quality, A4/US Letter) | 26 ppm |
| Print speed (colour, normal quality, A4/US Letter) | 26 ppm |
| Duplex print speed (black, normal quality, A4/US Letter) | 13 ppm |
| Duplex print speed (colour, normal quality, A4/US Letter) | 13 ppm |
| Warm-up time | 29 s |
| Time to first page (black, normal) | 9.5 s |
| Time to first page (colour, normal) | 10.5 s |
| Economical printing | Yes |
Features
| Specification | Value |
|---|---|
| Maximum duty cycle | 50000 pages per month |
| Recommended duty cycle | 1000 - 2000 pages per month |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Number of print cartridges | 4 |
| Page description languages | PCL 5c, PCL 6, PCL XL, XPS |
| Replacement cartridges | TK-5240K (4.000 pagina's) TK-5240CMY (3.000 pagina's) |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 1 |
| Total input capacity | 250 sheets |
| Total output capacity | 150 sheets |
| Paper tray 1 input capacity | 250 sheets |
| Paper input type | Cassette, Paper tray |
| Multi-Purpose tray | Yes |
| Multi-Purpose tray input capacity | 50 sheets |
| Maximum number of input trays | 2 |
| Maximum input capacity | 550 sheets |
| Maximum output capacity | 150 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Maximum print size | 216 x 356 mm |
| Paper tray media types | Plain paper |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5, B6 |
| Non-ISO print media sizes | Legal, Letter |
| Custom media width | 70 - 216 mm |
| Custom media length | 148 - 356 mm |
| Paper tray media weight | 60 - 163 g/m² |
| Multi-Purpose Tray media weight | 60 - 220 g/m² |
| Duplex media weight | 60 - 120 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | Ethernet, USB 2.0, Wireless LAN |
| Direct printing | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Network ready | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi Direct | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | No |
| Near Field Communication (NFC) | No |
| Mobile printing technologies | Apple AirPrint, Google Cloud Print, Kyocera Mobile Print, Mopria Print Service |
Performance
| Specification | Value |
|---|---|
| Internal memory | 512 MB |
| Maximum internal memory | 512 MB |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC |
| Built-in processor | Yes |
| Processor family | ARM Cortex |
| Processor model | A9 |
| Processor frequency | 800 MHz |
| Sound pressure level (printing) | 49 dB |
| Sound power level (standby) | 30 dB |
Design
| Specification | Value |
|---|---|
| Market positioning | Home & office |
| Product colour | Black, White |

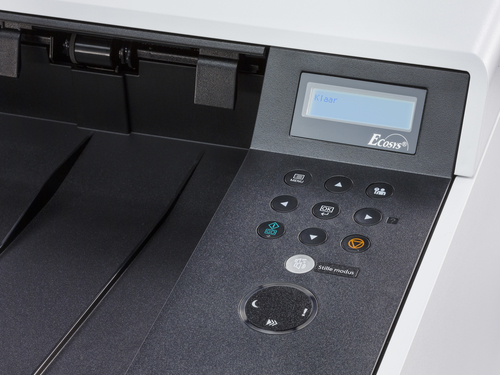

| Built-in display | Yes |
| Display | LCD |
| Colour display | No |
| Control type | Buttons |
| Certification | GS, TüV, CE |
Certificates
| Specification | Value |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 375 W |
| Power consumption (standby) | 33 W |
| Power consumption (PowerSave) | 0.9 W |
| Power consumption (off) | 0.2 W |
| Energy Star Typical Electricity Consumption (TEC) | 0.94 kWh/week |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 32.5 °C |
| Storage temperature (T-T) | -20 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3500 m |
| Non-operating altitude | 0.6 - 15000 m |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | Blue Angel, EPEAT Silver, ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 410 mm |
| Depth | 410 mm |
| Height | 329 mm |
| Weight | 21 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 592 mm |
| Package depth | 567 mm |
| Package height | 460 mm |
| Package weight | 27 kg |
Packaging content
| Specification | Value |
|---|---|
| Cartridge(s) included | Yes |
| Included cartridge capacity (black) | 1200 pages |
| Included cartridge capacity (CMY) | 1200 pages |
| Cables included | AC |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
