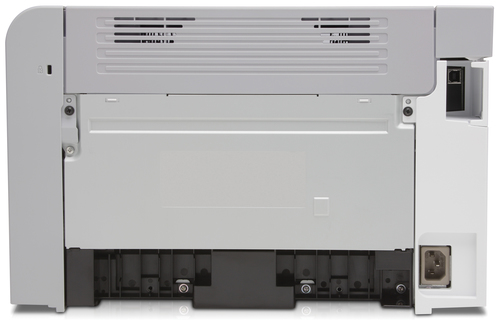

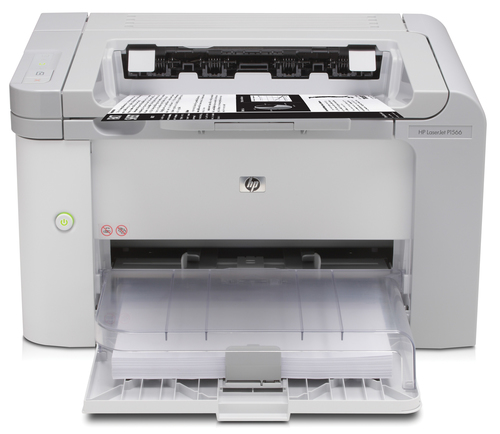

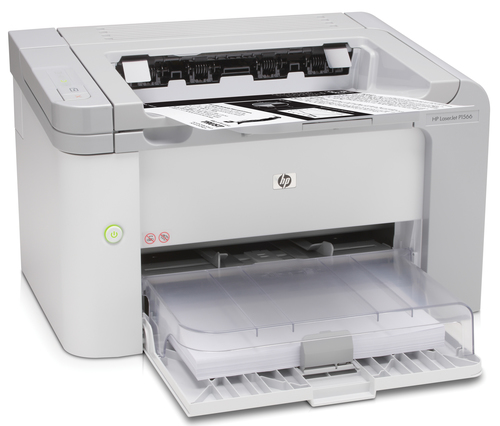

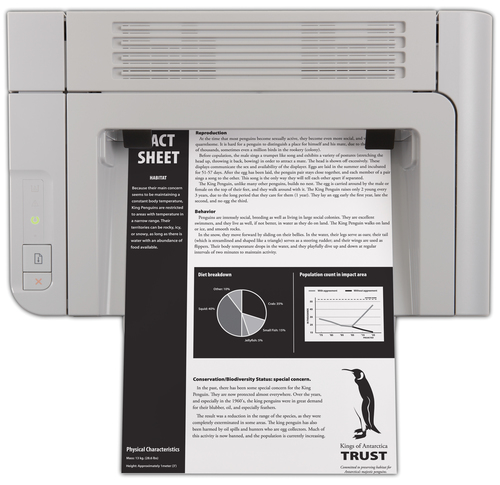

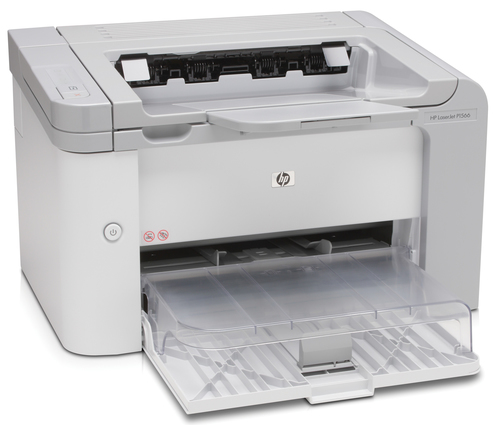

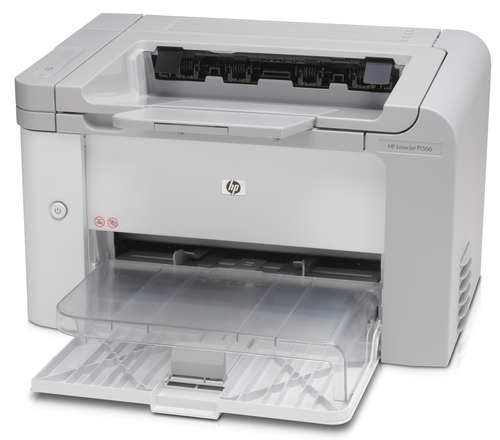

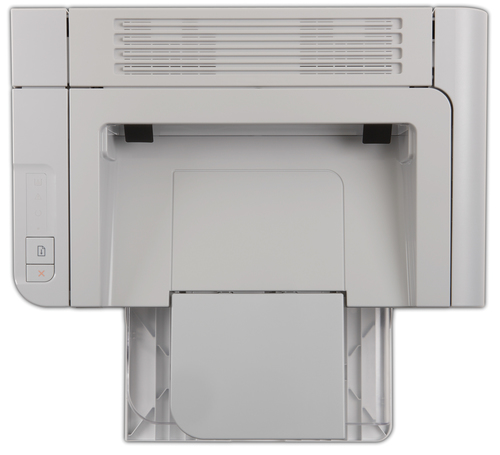

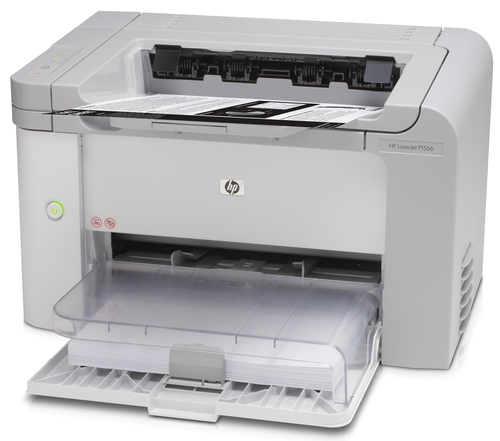

HP Pro P1566
Model Pro P1566Part no. CE663AEAN 886111653027
60 specifications
- Memory8 MB
- Weight6.5 kg
- ColourNo
- Maximum duty cycle8000 pages per month
- Total input capacity250 sheets
- Maximum ISO A-series paper sizeA4
Overview
- Memory
- 8 MB
- Weight
- 6.5 kg
- Colour
- No
- Maximum duty cycle
- 8000 pages per month
- Total input capacity
- 250 sheets
- Maximum ISO A-series paper size
- A4
- Brand
- HP
- Category
- Laser Printer
- Model
- Pro P1566
- Part number
- CE663A
- EAN / UPC
- 886111653027, 884962134870, 884962134887, 884962134894 +12 more
- Also known as
- HP LaserJet Pro P1566 1200 x 1200 DPI A4
Specifications
60 specifications in 16 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
| Print technology | Laser |
| Maximum resolution | 1200 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) | 22 ppm |
Features
| Specification | Value |
|---|---|
| Maximum duty cycle | 8000 pages per month |
| Printing colours | Black |
| Number of print cartridges | 1 |
Input & output capacity
| Specification | Value |
|---|---|
| Total input capacity | 250 sheets |
| Total output capacity | 150 sheets |
| Maximum output capacity | 150 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Maximum print size | 210 x 297 mm |
| Paper tray media types | Card stock, Envelopes, Labels, Plain paper, Transparencies |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5 |
| Envelopes sizes | B5, C5, DL |
| Custom media width | 147 - 211 mm |
| Custom media length | 216 - 356 mm |
| Paper tray media weight | 60 - 163 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | USB 2.0 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | No |
| Network ready | No |
Performance
| Specification | Value |
|---|---|
| Internal memory | 8 MB |
| Maximum internal memory | 8 MB |
| Processor frequency | 266 MHz |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 420 W |
| Power consumption (standby) | 1.2 W |
| Power consumption (off) | 0.9 W |
| AC input voltage | 110 - 220 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 32.5 °C |
| Storage temperature (T-T) | -20 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 387 mm |
| Depth | 243 mm |
| Height | 246 mm |
| Weight | 6.5 kg |
| Maximum dimensions (W x D x H) | 387 x 420 x 255 mm |
| Pallet dimensions (W x D x H) | 1200 x 1000 x 2460 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7.9 kg |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross weight | 465.1 kg |
Other features
| Specification | Value |
|---|---|
| Power LED | Yes |
| Stand-by LED | Yes |
| Supported media weight (imperial) | 7.26 kg (16 lbs) |
| Package dimensions (WxDxH) | 485 x 300 x 330 mm |
| Print quality (black, normal quality) | 600 DPI |
| Print margin bottom (A4) | 4 mm |
| Print margin left (A4) | 4 mm |
| Print margin right (A4) | 4 mm |
| Print margin top (A4) | 4 mm |
| Print quality (black, best quality) | 600 x 600 DPI |
| Standard output capacity for transparencies | 100 sheets |
What people say
Reviews & ratings
HP Pro P1566
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare HP Pro P1566

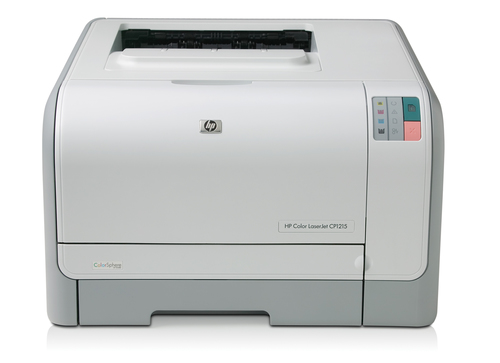

All laser printer comparisons- HP Pro P1566 vsHP LaserJet CP1215 ColourCompare specs
- HP Pro P1566 vsHP LaserJet Enterprise 700 Printer M712dnCompare specs
- HP Pro P1566 vsHP LaserJet 4700 ColourCompare specs
- HP Pro P1566 vsHP LaserJet Enterprise 700 Printer M712xhCompare specs

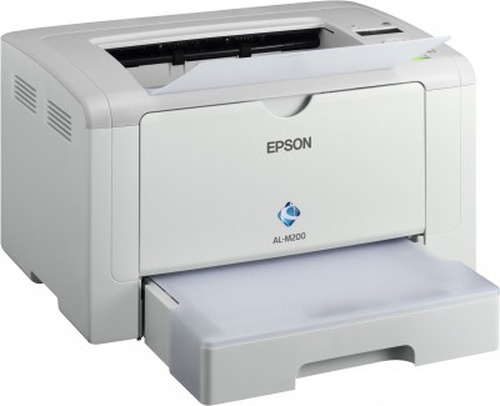

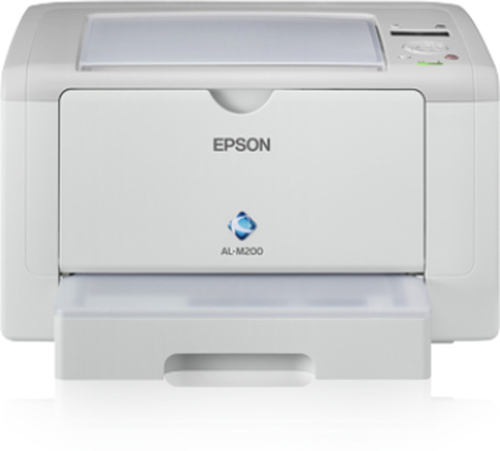

- HP Pro P1566 vsEpson WorkForce AL-M200DNCompare specs
