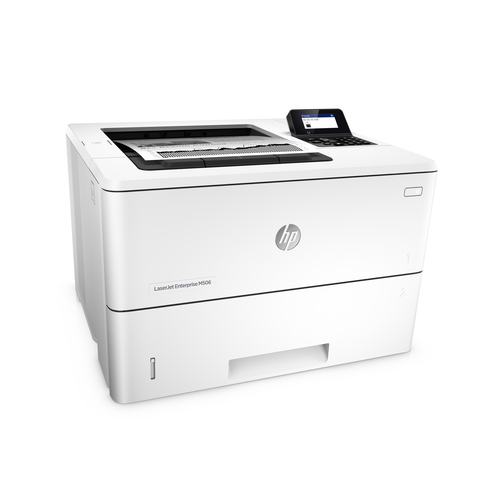

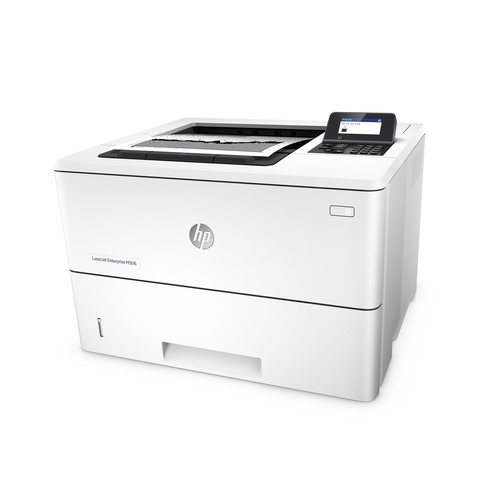

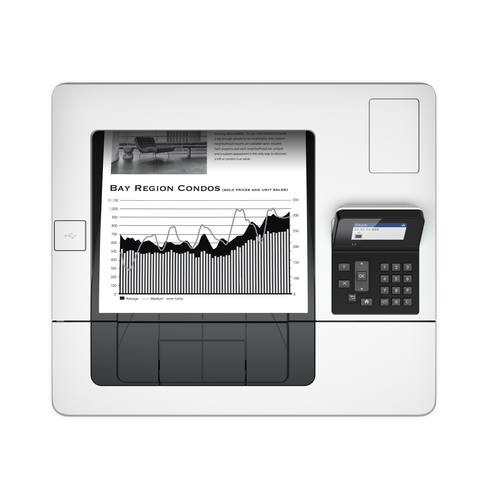

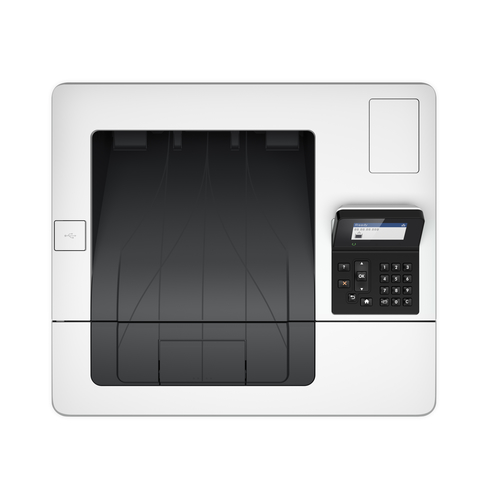

HP M506dn + PageWide Enterprise Color MFP 586dn
Model M506dn + PageWide Enterprise Color MFP 586dnPart no. F2A69A+G1W39A/99804471
61 specifications
- Memory512 MB
- Weight11.8 kg
- ColourNo
- Maximum duty cycle150000 pages per month
- Total number of input trays1
- Maximum ISO A-series paper sizeA4
Overview
- Memory
- 512 MB
- Weight
- 11.8 kg
- Colour
- No
- Maximum duty cycle
- 150000 pages per month
- Total number of input trays
- 1
- Maximum ISO A-series paper size
- A4
- Brand
- HP
- Category
- Laser Printer
- Model
- M506dn + PageWide Enterprise Color MFP 586dn
- Part number
- F2A69A+G1W39A/99804471
- Also known as
- HP LaserJet M506dn + PageWide Enterprise Color MFP 586dn 1200 x 1200 DPI A4
Specifications
61 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
| Print technology | Laser |
| Duplex printing | Yes |
| Duplex printing mode | Auto |
| Maximum resolution | 1200 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) | 43 ppm |
| Time to first page (black, normal) | 5.9 s |
Features
| Specification | Value |
|---|---|
| Maximum duty cycle | 150000 pages per month |
| Recommended duty cycle | 2000 - 7500 pages per month |
| Printing colours | Black |
| Number of print cartridges | 1 |
| Page description languages | PCL 5, PCL 6 |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 1 |
| Total input capacity | 650 sheets |
| Total output capacity | 250 sheets |
| Paper tray 2 input capacity | 550 sheets |
| Paper input type | Paper tray |
| Multi-Purpose tray | Yes |
| Multi-Purpose tray input capacity | 100 sheets |
| Maximum number of input trays | 2 |
| Maximum input capacity | 2300 sheets |
| Maximum output capacity | 250 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Paper tray media types | Envelopes, Transparencies, Bond paper, Card stock, Plain paper, Pre-printed, Labels, Recycled paper |
| ISO A-series sizes (A0...A9) | A5, A4 |
| Non-ISO print media sizes | Executive, Legal, Letter, Oficio, Statement |
| JIS B-series sizes (B0...B9) | B5 |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | Ethernet, USB 2.0 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Network ready | Yes |
| Mobile printing technologies | Apple AirPrint, Mopria Print Service, Google Cloud Print, HP ePrint |
Performance
| Specification | Value |
|---|---|
| Internal memory | 512 MB |
| Maximum internal memory | 1536 MB |
| Memory slots | 1 |
| Memory type | DDR3 |
| Built-in processor | Yes |
| Processor frequency | 1200 MHz |
| Sound pressure level (printing) | 54 dB |
| Sound pressure level (quiet mode) | 24 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Built-in display | Yes |
| Display | LCD |
| Display number of lines | 4 lines |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 741.98 W |
| Power consumption (standby) | 13.72 W |
| Power consumption (off) | 0.08 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 32.5 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 418 mm |
| Depth | 376 mm |
| Height | 298 mm |
| Weight | 11.8 kg |
