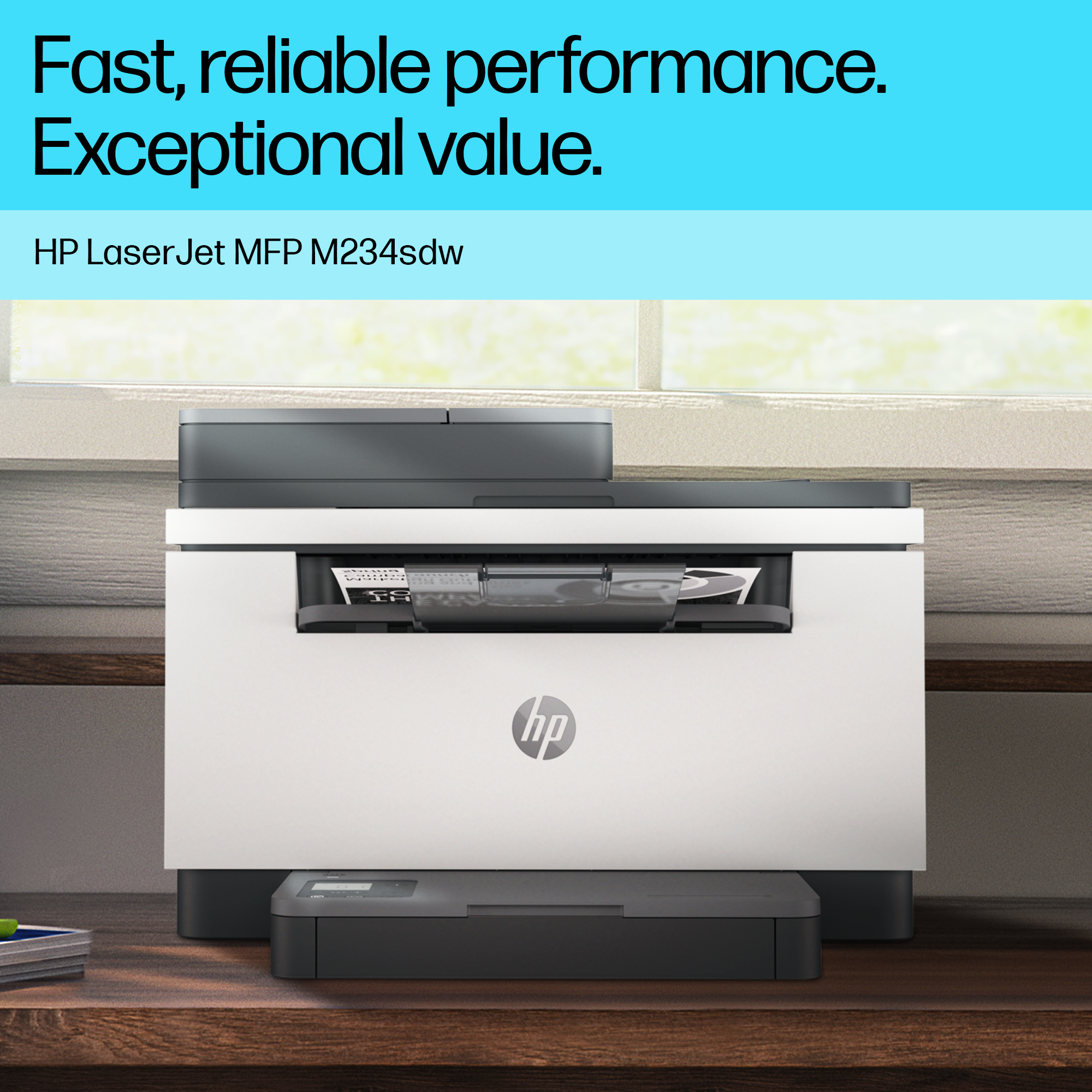

LaserJet MFP M234sdw Trad Rfrbd Prntr

Model LaserJet MFP M234sdw Trad Rfrbd PrntrPart no. 6GX01FREAN 195122480936

105 specifications

Overview

Brand: HP
Category: Laser Printer
Model: LaserJet MFP M234sdw Trad Rfrbd Prntr
Part number: 6GX01FR
EAN / UPC: 195122480936, 196548766628
Also known as: HP LaserJet M234sdw Wireless Multifunction Black and white Printer, Copier, Scanner; Duplex

105 specifications in 19 groups

Specification	Value
Colour	No
Print technology	Laser
Duplex printing	Yes
Duplex printing mode	Auto
Maximum resolution	600 x 600 DPI
Print resolution black	600 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	29 ppm
Warm-up time	45 s
Time to first page (black, normal)	7 s
Secure printing	Yes

Specification	Value
Maximum duty cycle	20000 pages per month
Recommended duty cycle	200 - 2000 pages per month
Printing colours	Black
Number of print cartridges	1
Page description languages	PCLmS, PWG, URF
Country of origin	Vietnam
Replacement cartridges	Regular Replacement Cartridge for DM1: HP 134A Black LaserJet Toner Cartridge, W1340A (~1100), HP 134X Black LaserJet Toner Cartridge, W1340X (~2400); Regular Replacement Cartridge for DM2: HP 135A Black LaserJet Toner Cartridge, W1350A (~1100), HP 135X Black LaserJet Toner Cartridge, W1350X (~2400)
HP segment	Home office

Specification	Value
Total number of input trays	1
Total input capacity	150 sheets
Total output capacity	100 sheets
Paper tray 1 input capacity	150 sheets
Maximum number of input trays	1
Maximum input capacity	150 sheets
Maximum output capacity	100 sheets

Specification	Value
Maximum ISO A-series paper size	A4
Maximum print size	216 x 354 mm
Paper tray media types	Plain paper, Envelopes, Card stock, Labels, Rough paper, Postcard
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Custom media width	101.6 - 216 mm
Custom media length	152.4 - 356 mm
Paper tray media weight	60 - 163 g/m²

Specification	Value
Direct printing	Yes
USB port	Yes

Specification	Value
Wi-Fi	Yes
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Wi-Fi Direct	Yes
Wi-Fi standards	Wi-Fi 4 (802.11n), 802.11g, 802.11b
Security algorithms	SNMPv3, SSL/TLS, SNMPv2, SNMP, TLS
Mobile printing technologies	Mopria Print Service, Apple AirPrint

Specification	Value
Internal memory	64 MB
Maximum internal memory	64 MB
Card reader integrated	No
Built-in processor	Yes
Processor frequency	500 MHz
Sound pressure level (printing)	51 dB
Sound power level (printing)	6.6 dB

Specification	Value
Market positioning	Home & office
Product colour	Grey, White
Built-in display	Yes
Display	LCD
Display diagonal	3.23 cm (1.27")
Control type	Buttons
Certification	CISPR32:2012 & CISPR32:2015 /EN55032:2012 & EN55032:2015+AC:2016 - Class B; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 55035:2017; FCC Title 47 CFR, Part 15 Class B/ICES-003, Issue 6.

Specification	Value
Energy Star Typical Electricity Consumption (TEC)	0.256 kWh/week
AC input voltage	220 - 240 V
AC input frequency	50/60 Hz

Specification	Value
Windows operating systems supported	Windows 8, Windows 8.1, Windows 10, Windows 11
Mac operating systems supported	Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, MacOS
Other operating systems supported	Linux

Specification	Value
Operating temperature (T-T)	15 - 32.5 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%

Specification	Value
Doesn't contain	Mercury
Sustainable technologies and materials	Mercury free

Specification	Value
Weight	7.6 kg
Pallet dimensions (W x D x H)	1200 x 1000 x 2474 mm

Specification	Value
Bundled software	No CD inbox (expect Indonesia and China Gov); Downloadable Software from hp.com or 123.hp.com; #CD include HP Software Installer, Uninstaller, printer driver and other essential tools

Specification	Value
HP Auto-On/Auto-Off	Yes
HP Security tools	Secure Boot, Secure Firmware Integrity, Runtime Code Integrity, password protected EWS, secure browsing via SSL/TLS 1.0, TLS 1.1, TLS 1.2; TLS 1.0/1.1 disabled by default; Update to OpenSSL version 1.1.1; Enable/disable Network ports; SNMPv1, SNMPv2, and SNMPv3, community password change; Secure def
HP GTIN (EAN/UPC)	196548766628

Specification	Value
Compliance certificates	GS mark, CCC, EAC, BIS, Federal Communications Commission (FCC), CE, BSMI
Master (outer) cases per pallet layer	8 pc(s)

Specification	Value
All-In-One-multitasking	Yes
Recommended system requirements	Microsoft Windows 10; 8.1; 8; 2 GB available hard disk space; Internet connection; Microsoft Internet Explorer. Apple macOS v10.14 Mojave; macOS v10.15 Catalina; macOS v11 Big Sur; 2 GB HD; Internet required.
Optical scanning resolution	600 x 600 DPI
Power supply type	Built-in 110V or 200V Power Supply
Electromagnetic compatibility	CISPR32:2012 & CISPR32:2015 /EN55032:2012 & EN55032:2015+AC:2016 - Class B; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 55035:2017; FCC Title 47 CFR, Part 15 Class B/ICES-003, Issue 6.
Compatible operating systems	Windows 11; Windows 10; Windows 8; Windows 8.1; macOS 10.14 Mojave; macOS 10.15 Catalina; macOS 11 Big Sur; macOS 12 Monterey; macOS 15 Sequoia; Linux
Copier resize	25 - 400%
Greyscale levels	256
Manufacturer warranty	One-year limited warranty
Maximum number of copies	99 copies
Maximum scan area	297 x 216 mm
Printing	Mono printing
Recommended humidity operating range	30 - 70%
Recommended operating temperature range (T-T)	17.5 - 25 °C
Custom media sizes	101.6 x 152.4 to 216 x 356 mm
Envelope feeder	No
Acoustic power emissions (ready)	26 dB
Acoustic pressure emissions bystander (ready)	16 dB
Pallet dimensions (W x D x H) (imperial)	1199.9 x 1000 x 2474 mm (47.2 x 39.4 x 97.4")
Pallet weight (imperial)	482.5 kg (1063.7 lbs)
Typical electricity consumption (TEC) number	0.256 kWh/Week (Energy Star); 0.684 kWh/Week (Blue Angel)
UNSPSC-code	43212110
