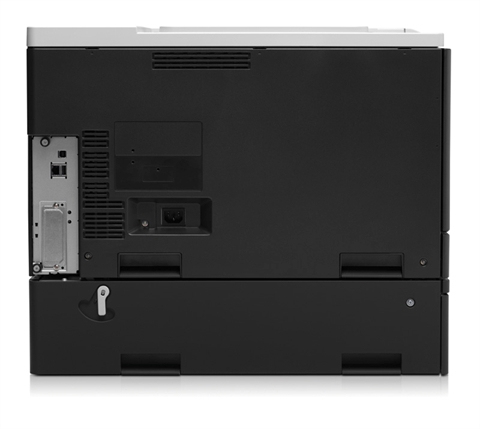

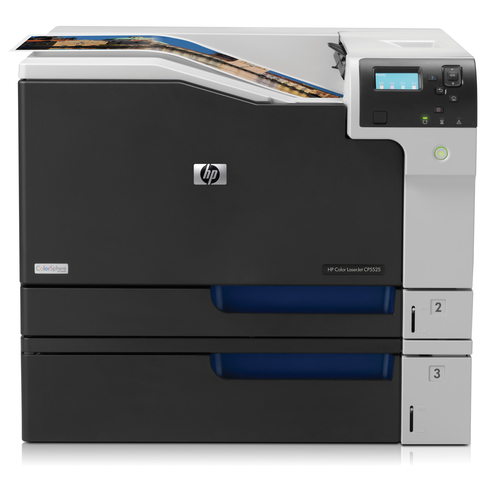

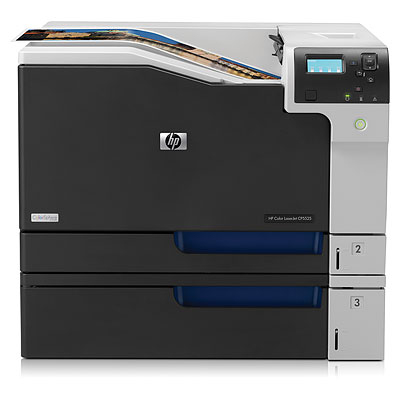

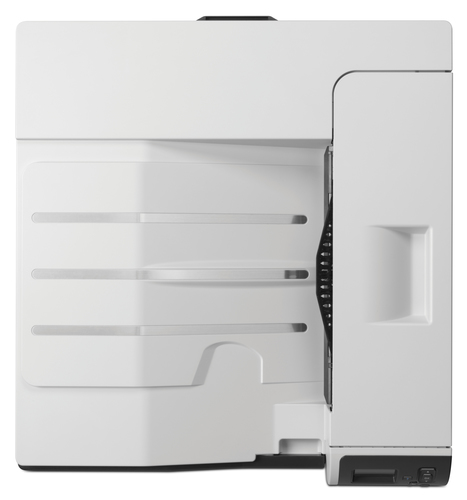

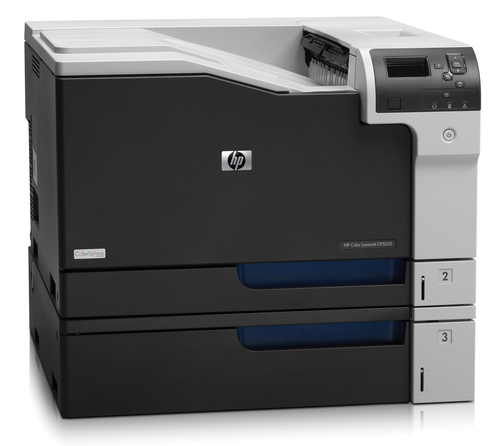

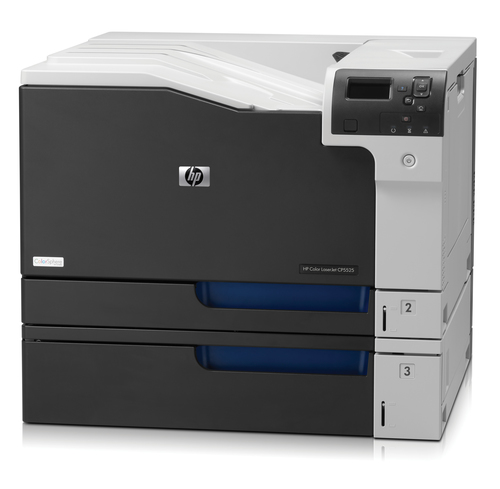

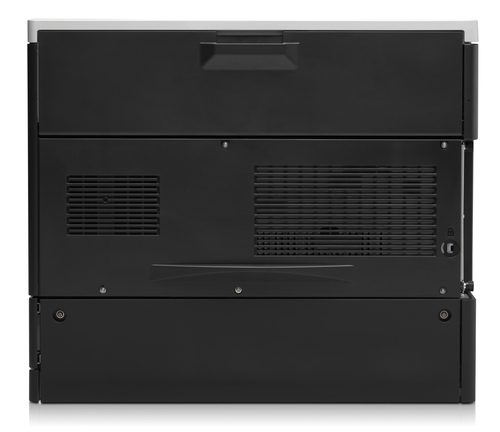

HP Enterprise CP5525dn

Model Enterprise CP5525dnPart no. CE708AEAN 887111951649

89 specifications

ProcessorIntel X86-VR
Memory1024 MB
Weight53.5 kg
ColourYes
Maximum duty cycle120000 pages per month
Total input capacity850 sheets

See all specifications

Overview

Processor: Intel X86-VR
Memory: 1024 MB
Weight: 53.5 kg
Colour: Yes
Maximum duty cycle: 120000 pages per month
Total input capacity: 850 sheets

Brand: HP
Category: Laser Printer
Model: Enterprise CP5525dn
Part number: CE708A
EAN / UPC: 887111951649, 884962820407, 884962820414, 884962820421 +16 more
Also known as: HP LaserJet Enterprise CP5525dn Colour

Specifications

89 specifications in 15 groups

Printing

Specification	Value
Colour	Yes
Print technology	Laser
Duplex printing	Yes
Print speed (black, normal quality, A4/US Letter)	30 ppm
Print speed (colour, normal quality, A4/US Letter)	30 ppm
Print speed (black, normal quality, A3)	15 ppm
Print speed (colour, normal quality, A3)	15 ppm

Features

Specification	Value
Maximum duty cycle	120000 pages per month
Number of print cartridges	4

Input & output capacity

Specification	Value
Total input capacity	850 sheets
Total output capacity	300 sheets
Maximum input capacity	1350 sheets
Maximum output capacity	300 sheets

Paper handling

Specification	Value
ISO A-series sizes (A0...A9)	A3, A4, A5
Duplex media weight	60 - 120 plain papers, up - 160 coated papers
Media size (tray 1)	A3; A4; A5; B4 (JIS); B5; B5 (JIS); C5; DL; SRA3
Media types supported	Paper (extra heavy, glossy, heavy, heavy glossy, high gloss images, intermediate, light, plain, recycle, tough), envelopes, labels, cardstock, transparencies
Media weight (tray 1)	60 to 220 g/m²

Network

Specification	Value
Wi-Fi	No
Ethernet LAN	Yes
Network ready	Yes
Supported network protocols (IPv4)	IPv4/IPv6: Apple Bonjour Compatible (Mac OS 10.2.4 or higher), SNMPv1/v2c/v3, HTTP, HTTPS, FTP, TFTP, Port 9100, LPD, WS Discovery, IPP, Secure-IPP, IPsec/Firewall; IPv6: DHCPv6, MLDv1, ICMPv6; IPv4: Auto-IP, SLP, Telnet, IGMPv2, BOOTP/DHCP, WINS, IP Direct Mode, WS Print; Other: NetWare NDS, Binder

Performance

Specification	Value
Internal memory	1024 MB
Maximum internal memory	1000 MB
Processor model	Intel X86-VR
Processor frequency	800 MHz

Design

Specification	Value
Product colour	Black, Grey

Power

Specification	Value
Power consumption (printing)	620 W
Power consumption (off)	0.5 W

System requirements

Specification	Value
Minimum system requirements for Macintosh	Mac OS X v10.4 or higher; Operating System compatible hardware system requirements, see: http://; 150 MB free hard disk space

Operational conditions

Specification	Value
Operating temperature (T-T)	15 - 27 °C
Storage temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	10 - 70%
Storage relative humidity (H-H)	10 - 90%

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Width	544 mm
Depth	586 mm
Height	465 mm
Weight	53.5 kg
Dimensions (WxDxH)	544 x 586 x 465 mm
Maximum dimensions (W x D x H)	840 x 975 x 465 mm

Packaging data

Specification	Value
Package weight	85 kg

Packaging content

Specification	Value
Bundled software	Print drivers and installation software on CD: Windows print driver (HP PCL 6 discrete), SNP alerts, Mac print driver

Other features

Specification	Value
Minimum system requirements	Windows 7; Windows Vista; Microsoft Windows XP SP2 or higher, Server 2003, Server 2008; OS Compatible hardware system requirements, see http:// system requirements; 220 MB available hard disk space
Printer management	HP Web Jetadmin; Status Notification Pop-up (SNP) for domains less than 100 users
Power requirements	Input voltage: 220 to 240 VAC (- 10/+ 6%), 50/60 Hz (+/- 2 Hz)
Electromagnetic compatibility	CISPR 22: 2005+A1/EN 55022: 2006 +A1 Class A, EN 61000-3-2: 2006, EN 61000-3-3: 1995+A1 +A2, EN 55024: 1998+A1+A2, FCC Title 47 CFR, GB 9254-2008, EMC Directive 2004/108/EC with CE Marking (Europe), other EMC approvals as required by individual countries
Compatible operating systems	Windows 7 32-bit and 64-bit; Windows Vista 32-bit and 64-bit; Microsoft Windows XP 32-bit or 64-bit (SP2 or higher), Server 2008 32-bit and 64-bit, and 2008 R2 Edition, Server 2003 32-bit and 64-bit, Citrix and Windows Terminal Services (see whitepapers at http:///go/upd, Documentation tab); Novell
PictBridge	No
Safety	IEC 60950-1 (International); EN 60950-1+A11 (EU); IEC 60825-1+A1+A2; GS License (Europe); EN 60825-1+A1+A2 (Class 1 Laser/LED Device); Low Voltage Directive 2006/95/EC with CE Marking (Europe); other safety approvals as required by individual countries
Standard input trays	3
Package dimensions (WxDxH)	995 x 767 x 822 mm
Print quality (black, normal quality)	600 DPI
Recommended operating temperature range (T-T)	17 - 25 °C
I/O ports	1 Hi-Speed USB 2.0; 1 Gigabit Ethernet 10/100/1000, IPv6, BiDi; 1 EIO
Custom media sizes	Tray 1: 76 x 127 to 320 x 470 mm; tray 2 and 3, optional tray 4: 148 x 210 to 297 x 432 mm
Standard media sizes	A3; A4; A5; B4 (JIS); B5; B5 (JIS); C5; DL; SRA3
Print margin bottom (A4)	5 mm
Print margin left (A4)	5 mm
Print margin right (A4)	5 mm
Print margin top (A4)	5 mm
Typefaces	105 internal TrueType fonts scalable in HP PCL, 92 internal scalable fonts in HP Postscript Level 3 emulation (Euro symbol built-in); additional font solutions available via third-party flash memory cards
Media weights by paper path	Tray 1: 60 to 220 g/m²; tray 2 and 3, optional tray 4: 60 to 120 g/m² plain papers, up to 160 g/m² coated papers
Envelope feeder	No
Printer smart software features	HP Smart Install; 4-line colour graphical control panel; compact design; HP ePrint, print from anywhere, anytime from mobile devices; Walk-up USB; Cartridges ship in printer and include auto seal removal
Acoustic power emissions	6.6 B(A)
Print quality (colour, best quality)	600 DPI
Duplex print options	Automatic (standard)
Acoustic pressure emissions bystander (active, print, copy or scan)	49 dB(A)
Automatic paper sensor	Yes

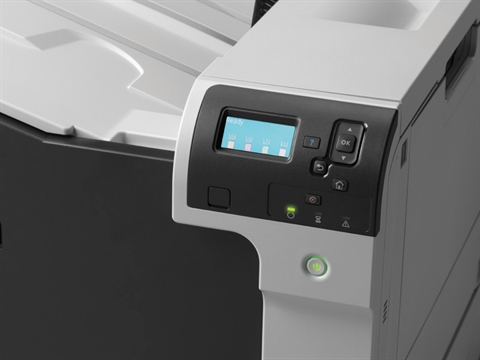

Control panel	5.2 cm, 4-line colour, graphical and text, LCD control panel display; 7 job control buttons (Menu, Select, Stop, Back/Exit, Help, Up arrow, Down arrow); 3 LED status lights (Attention, Data, Ready); Enhanced help with animated graphics; Walk-up USB port with cover
Driver updates	Latest drivers for all supported operating systems available at http:///support/cljcp5525. If no access to the Internet, see support flyer that came in printer box
Duplex supported media size	A3; A4; B4; B5 (JIS); SRA3
First page out (black&white, A4, ready)	10 s
Maximum paper trays	4
Media handling	Sheetfeed
Media size (tray 2)	A3; A4; A5; B4 (JIS); B5; B5 (JIS); C5; DL
Media type and capacity (tray 2)	sheets: 250; transparencies: 50
Media weight (tray 2)	60 to 120 g/m² plain papers, up to 160 g/m² coated papers
Media weight (tray 3)	60 to 120 g/m² plain papers, up to 160 g/m² coated papers
Paper handling optional/input	Optional 500-sheet input tray
Paper handling standard/input	100-sheet multipurpose tray, 250-sheet input tray 2, 500-sheet input tray 3, automatic two-sided printing
Paper handling standard/output	300-sheet output bin
Print quality (black, best quality)	600 x 600 DPI
Security management description	Management security: SNMPv3, SSL/TLS, 802.1X authentication (EAP- PEAP, EAP-TLS), IPP over TLS, IPsec/Firewall with Certificate, Pre-Shared Key Authentication, and Kerberos Authentication; Support for WJA-10 IPsec Configuration using IPsec Plug-in
Standard output capacity for transparencies	300 sheets
SureSupply supported	Yes
Typical electricity consumption (TEC) number	5.644 kWh/Week
Wireless option type	Optional, enabled with purchase of a hardware accessory
