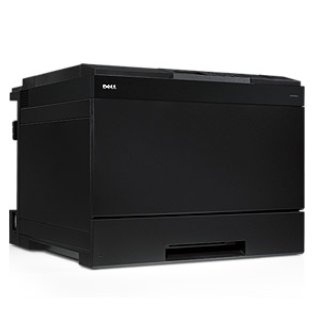

Dell 5130cdn Colour
1200 x 1200 DPI A4
Model 5130cdnPart no. 262-5535EAN 884116083931
53 specifications
- Memory256 MB
- Weight44.9 kg
- ColourYes
- Maximum duty cycle110000 pages per month
- Total input capacity700 sheets
- Maximum ISO A-series paper sizeA4
Overview
- Memory
- 256 MB
- Weight
- 44.9 kg
- Colour
- Yes
- Maximum duty cycle
- 110000 pages per month
- Total input capacity
- 700 sheets
- Maximum ISO A-series paper size
- A4
- Brand
- Dell
- Category
- Laser Printer
- Model
- 5130cdn
- Part numbers
- 262-5535, 210-30611, 5130CDN
- EAN / UPC
- 884116083931, 884116017721, 5391519381502, 5711045390128 +3 more
- Also known as
- DELL 5130cdn Colour 1200 x 1200 DPI A4
Specifications
53 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Print technology | Laser |
| Duplex printing | Yes |
| Maximum resolution | 1200 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) | 45 ppm |
| Print speed (colour, normal quality, A4/US Letter) | 45 ppm |
| Duplex print speed (black, normal quality, A4/US Letter) | 37.6 ppm |
| Duplex print speed (colour, normal quality, A4/US Letter) | 37.6 ppm |
| Warm-up time | 30 s |
Features
| Specification | Value |
|---|---|
| Maximum duty cycle | 110000 pages per month |
| Number of print cartridges | 2 |
| Page description languages | PCL 5e, PCL 6 |
| Printer fonts | PCL, PostScript |
| Number of printer fonts | 217 |
| Number of PCL fonts | 81 |
| Number of PostScript fonts | 136 |
Input & output capacity
| Specification | Value |
|---|---|
| Total input capacity | 700 sheets |
| Total output capacity | 500 sheets |
| Maximum input capacity | 2900 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Maximum print size | 210 x 297 mm |
| Paper tray media types | Coated paper, Envelopes, Labels, Plain paper, Transparencies |
| ISO A-series sizes (A0...A9) | A4, A5 |
| ISO B-series sizes (B0...B9) | B5 |
| ISO C-series sizes (C0...C9) | C5 |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | Ethernet, Parallel, USB 2.0 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Network ready | Yes |
| Supported network protocols (IPv4) | TCP/IP |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Maximum internal memory | 1280 MB |
| Memory slots | 1 |
| Memory type | DDR2 |
| Processor frequency | 800 MHz |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Display | LCD |
| Certification | CE, FCC, WHQL, RoHS |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 600 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Hom |
| Mac operating systems supported | Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 44.9 kg |
| Dimensions (WxDxH) | 559 x 508 x 432 mm |
Other features
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Compatible operating systems | UNIX (Solaris 9 and 10, HP-UX 11i) SuSE Linux 8.0/9.0 SuSE Enterprise Linux 10 RedHat Enterprise 4/5 ES RedHat Linux 3.0, 4.0 (AS/WS) |
| Fonts included | Yes |
| Networking features | Gigabit Ethernet |
| Power LED | Yes |
| Stand-by LED | Yes |
