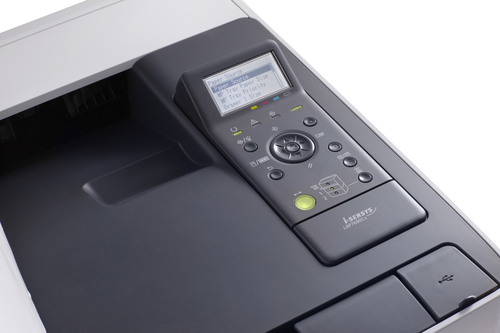

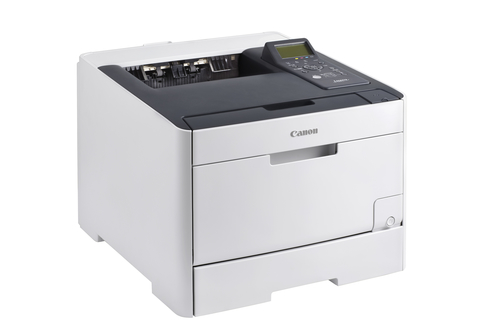

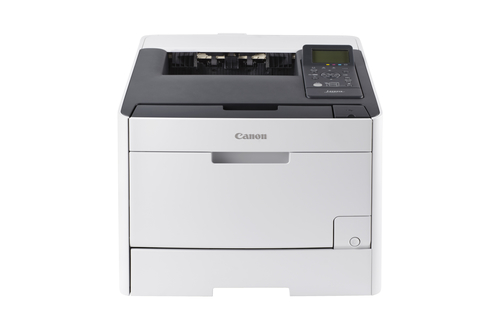

Canon i-SENSYS LBP7680Cx Colour
9600 x 600 DPI A4
Model LBP7680CxPart no. 5089B016EAN 8714574574011
61 specifications
- Memory768 MB
- Weight25.2 kg
- ColourYes
- Maximum duty cycle60000 pages per month
- Total input capacity250 sheets
- Maximum ISO A-series paper sizeA4
Overview
- Memory
- 768 MB
- Weight
- 25.2 kg
- Colour
- Yes
- Maximum duty cycle
- 60000 pages per month
- Total input capacity
- 250 sheets
- Maximum ISO A-series paper size
- A4
- Brand
- Canon
- Category
- Laser Printer
- Model
- LBP7680Cx
- Part numbers
- 5089B016, 5089B002, 5089B015, 5089B014
- EAN / UPC
- 8714574574011, 3609740021916, 4960999688534, 8714574574004 +4 more
- Also known as
- Canon i-SENSYS LBP7680Cx Colour 9600 x 600 DPI A4
Specifications
61 specifications in 14 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Print technology | Laser |
| Duplex printing | Yes |
| Maximum resolution | 9600 x 600 DPI |
| Print resolution colour | 600 x 600 DPI |
| Print speed (black, normal quality, A4/US Letter) | 20 ppm |
| Print speed (colour, normal quality, A4/US Letter) | 20 ppm |
| Warm-up time | 29 s |
| Time to first page (black, normal) | 16 s |
| Time to first page (colour, normal) | 16 s |
| Print margins (top, bottom, right, left) | 5 mm |
Features
| Specification | Value |
|---|---|
| Maximum duty cycle | 60000 pages per month |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Page description languages | PCL 5c, PCL 6, PostScript 3, UFRII-LT |
Input & output capacity
| Specification | Value |
|---|---|
| Total input capacity | 250 sheets |
| Total output capacity | 125 sheets |
| Multi-Purpose tray | Yes |
| Multi-Purpose tray input capacity | 50 sheets |
| Maximum input capacity | 550 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Maximum print size | 216 x 356 mm |
| Paper tray media types | Coated paper, Envelopes, Labels, Plain paper, Transparencies |
| ISO A-series sizes (A0...A9) | A4, A5 |
| ISO B-series sizes (B0...B9) | B5 |
| Non-ISO print media sizes | Executive, Legal, Letter, Statement |
| Envelopes sizes | 10, B5, C5, DL |
| Custom media width | 100 - 215.9 mm |
| Custom media length | 127 - 355.6 mm |
| Paper tray media weight | 60 - 163 g/m² |
| Multi-Purpose Tray media weight | 60 - 176 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | Ethernet, USB 2.0 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Network ready | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Internal memory | 768 MB |
| Built-in processor | Yes |
| Sound pressure level (printing) | 52 dB |
| Sound power level (standby) | 24 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Built-in display | Yes |
| Display | LCD |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 405 W |
| Power consumption (max) | 950 W |
| Power consumption (standby) | 23 W |
| Energy Star Typical Electricity Consumption (TEC) | 0.9 kWh/week |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Wi |
| Mac operating systems supported | Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows 2000 Server, Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 30 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 414 mm |
| Depth | 499 mm |
| Height | 346 mm |
| Weight | 25.2 kg |
Other features
| Specification | Value |
|---|---|
| Power LED | Yes |
