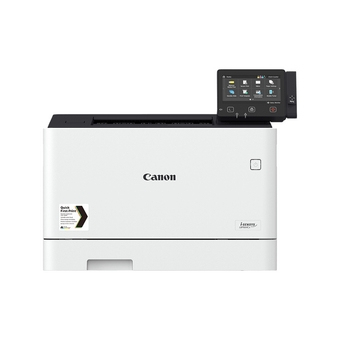

i-SENSYS LBP664Cx Colour
1200 x 1200 DPI A4 Wi-Fi
Model LBP664CxPart no. 3103C016EAN 8714574662268
73 specifications
- Memory1000 MB
- Weight21.2 kg
- ColourYes
- Maximum duty cycle50000 pages per month
- Total input capacity250 sheets
- Maximum ISO A-series paper sizeA4
Overview
- Memory
- 1000 MB
- Weight
- 21.2 kg
- Colour
- Yes
- Maximum duty cycle
- 50000 pages per month
- Total input capacity
- 250 sheets
- Maximum ISO A-series paper size
- A4
- Brand
- Canon
- Category
- Laser Printer
- Model
- LBP664Cx
- Part numbers
- 3103C016, 3103C001, 3103C015
- EAN / UPC
- 8714574662268, 8714574662275, 4549292121995
- Also known as
- Canon i-SENSYS LBP664Cx Colour 1200 x 1200 DPI A4 Wi-Fi
Specifications
73 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Print technology | Laser |
| Duplex printing | Yes |
| Maximum resolution | 1200 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) | 27 ppm |
| Duplex print speed (black, normal quality, A4/US Letter) | 24.5 ppm |
| Warm-up time | 13 s |
| Time to first page (black, normal) | 7.7 s |
| Time to first page (colour, normal) | 8.6 s |
| Print margins (top, bottom, right, left) | 5 mm |
Features
| Specification | Value |
|---|---|
| Maximum duty cycle | 50000 pages per month |
| Recommended duty cycle | 750 - 4000 pages per month |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Page description languages | PCL 5c, PCL 6, PostScript, UFRII |
| Number of printer fonts | 229 |
Input & output capacity
| Specification | Value |
|---|---|
| Total input capacity | 250 sheets |
| Total output capacity | 150 sheets |
| Paper input type | Cassette |
| Multi-Purpose tray | Yes |
| Multi-Purpose tray input capacity | 50 sheets |
| Maximum input capacity | 550 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Maximum print size | 216 x 356 mm |
| Paper tray media types | Envelopes, Glossy paper, Heavy paper, Labels, Plain paper, Postcard, Recycled paper, Thin paper |
| ISO A-series sizes (A0...A9) | A4, A5 |
| ISO B-series sizes (B0...B9) | B5 |
| Non-ISO print media sizes | Executive, Legal, Letter, Statement |
| Envelopes sizes | C5, Com-10, DL, Monarch |
| Custom media width | 100 - 216 mm |
| Custom media length | 148 - 355.6 mm |
| Paper tray media weight | 60 - 163 g/m² |
| Multi-Purpose Tray media weight | 60 - 176 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Network ready | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Near Field Communication (NFC) | Yes |
| Mobile printing technologies | Apple AirPrint, Canon PRINT Business, Google Cloud Print, Mopria Print Service |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1000 MB |
| Maximum internal memory | 1000 MB |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Processor cores | 2 |
| Sound pressure level (printing) | 63 dB |
| Sound pressure level (duplex printing) | 64 dB |
| Sound power level (standby) | 42 dB |
Design
| Specification | Value |
|---|---|
| Market positioning | Home & office |
| Product colour | Black, White |
| Built-in display | Yes |
| Display | LCD |
| Colour display | Yes |
| Touchscreen | Yes |
| Control type | Touch |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 470 W |
| Power consumption (max) | 1380 W |
| Power consumption (ready) | 0.6 W |
| Power consumption (standby) | 17 W |
| Energy Star Typical Electricity Consumption (TEC) | 1 kWh/week |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 30 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 476 mm |
| Depth | 469 mm |
| Height | 379 mm |
| Weight | 21.2 kg |
