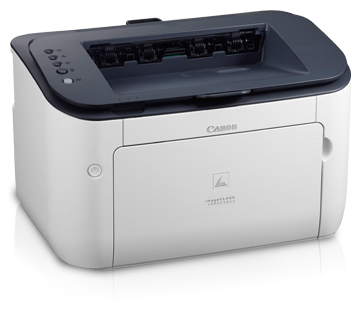

Canon imageCLASS LBP6230dn
600 x 600 DPI A4
Model LBP6230dnPart no. LBP6230DN
60 specifications
- Memory64 MB
- Weight7 kg
- ColourNo
- Maximum duty cycle8000 pages per month
- Total number of input trays1
- Maximum ISO A-series paper sizeA4
Overview
- Memory
- 64 MB
- Weight
- 7 kg
- Colour
- No
- Maximum duty cycle
- 8000 pages per month
- Total number of input trays
- 1
- Maximum ISO A-series paper size
- A4
- Brand
- Canon
- Category
- Laser Printer
- Model
- LBP6230dn
- Part numbers
- LBP6230DN, 9143B005
- Also known as
- Canon imageCLASS LBP6230dn 600 x 600 DPI A4
Specifications
60 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
| Print technology | Laser |
| Duplex printing | Yes |
| Duplex printing mode | Auto |
| Maximum resolution | 600 x 600 DPI |
| Print speed (black, normal quality, A4/US Letter) | 25 ppm |
| Duplex print speed (black, normal quality, A4/US Letter) | 7.7 ppm |
| Warm-up time | 10 s |
| Time to first page (black, normal) | 6 s |
Features
| Specification | Value |
|---|---|
| Maximum duty cycle | 8000 pages per month |
| Recommended duty cycle | 500 - 1500 pages per month |
| Printing colours | Black |
| Number of print cartridges | 1 |
| Page description languages | UFRII-LT |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 1 |
| Total input capacity | 250 sheets |
| Total output capacity | 100 sheets |
| Multi-Purpose tray | Yes |
| Multi-Purpose tray input capacity | 1 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Paper tray media types | Envelopes, Heavy paper, Labels, Plain paper |
| ISO A-series sizes (A0...A9) | A4, A5 |
| ISO B-series sizes (B0...B9) | B5 |
| Non-ISO print media sizes | 16K, Executive, Letter |
| Envelopes sizes | 10, C5, DL, Monarch |
| Custom media width | 76.2 - 216 mm |
| Custom media length | 127 - 356 mm |
| Paper tray media weight | 60 - 163 g/m² |
| Multi-Purpose Tray media weight | 60 - 163 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | Ethernet, USB 2.0 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SNMP |
| Supported network protocols (IPv4) | WINS |
| Supported network protocols (IPv6) | DHCP, BOOTP, RARP, DHCPv6 |
| Management protocols | SNMPv1, SNMPv3, SLP, WINS (IPv4), DHCP, BOOTP, RARP, DHCPv6 (IPv6), Auto IP, mDNS, DNS, DDNS |
Performance
| Specification | Value |
|---|---|
| Internal memory | 64 MB |
| Sound pressure level (printing) | 52 dB |
| Sound power level (standby) | 0 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 420 W |
| Power consumption (max) | 1100 W |
| Power consumption (standby) | 1.4 W |
| Power consumption (off) | 0.9 W |
| Energy Star Typical Electricity Consumption (TEC) | 0.7 kWh/week |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win |
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 30 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 379 mm |
| Depth | 293 mm |
| Height | 243 mm |
| Weight | 7 kg |
Other features
| Specification | Value |
|---|---|
| Power LED | Yes |
