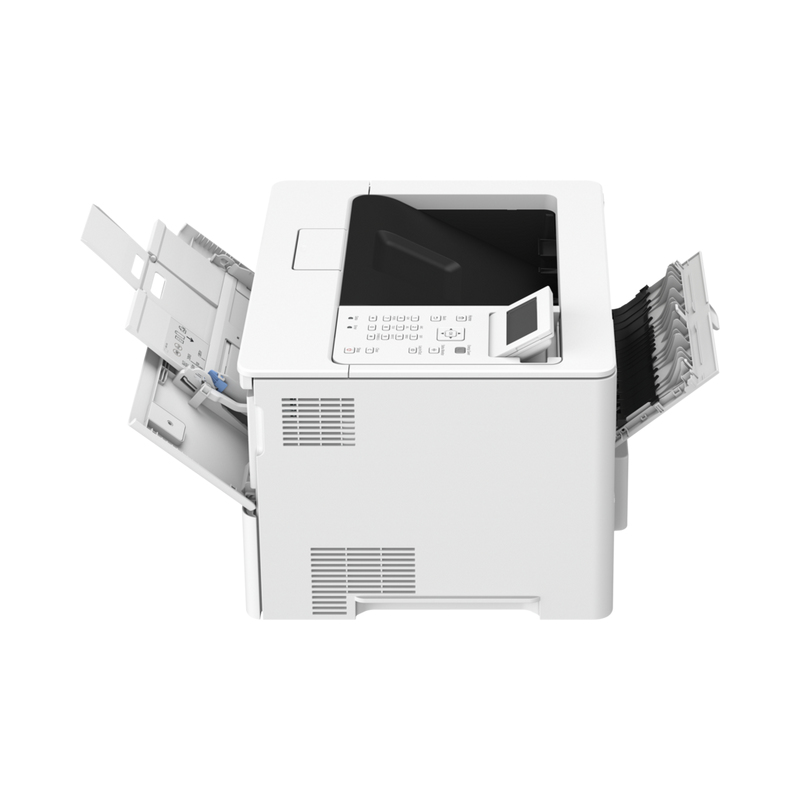

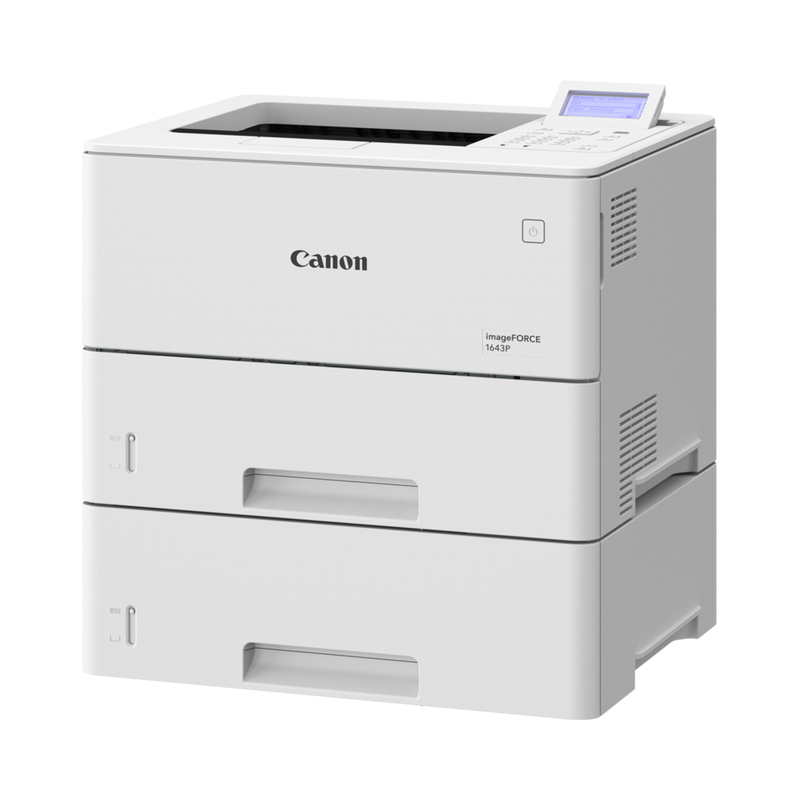

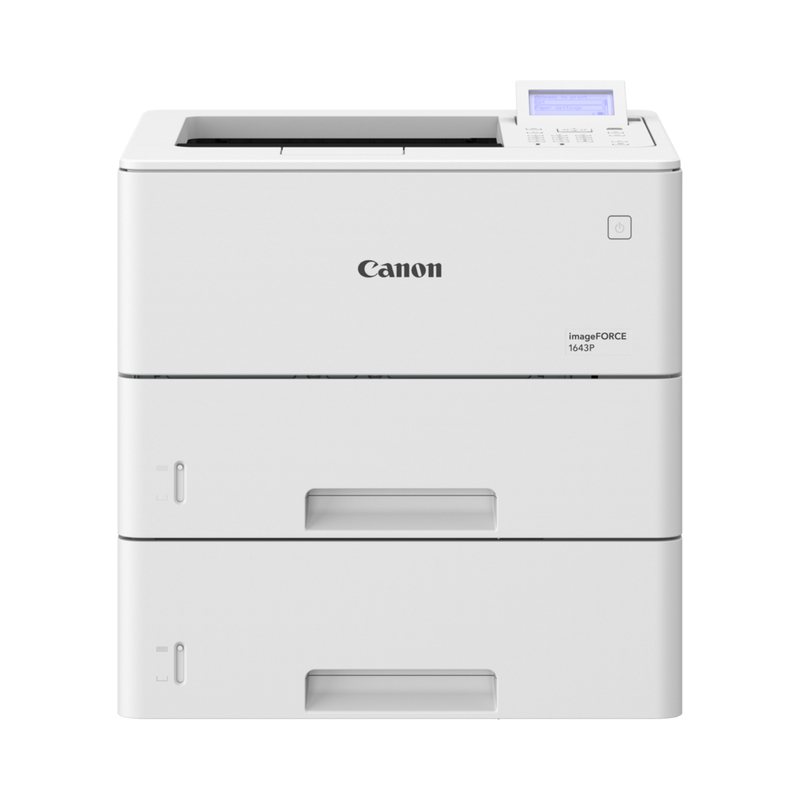

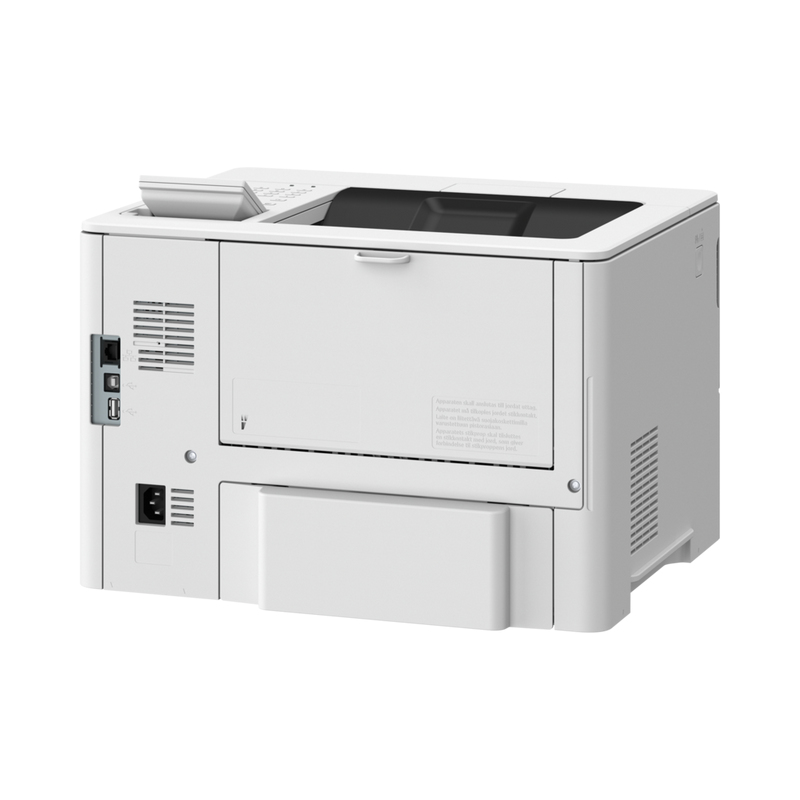

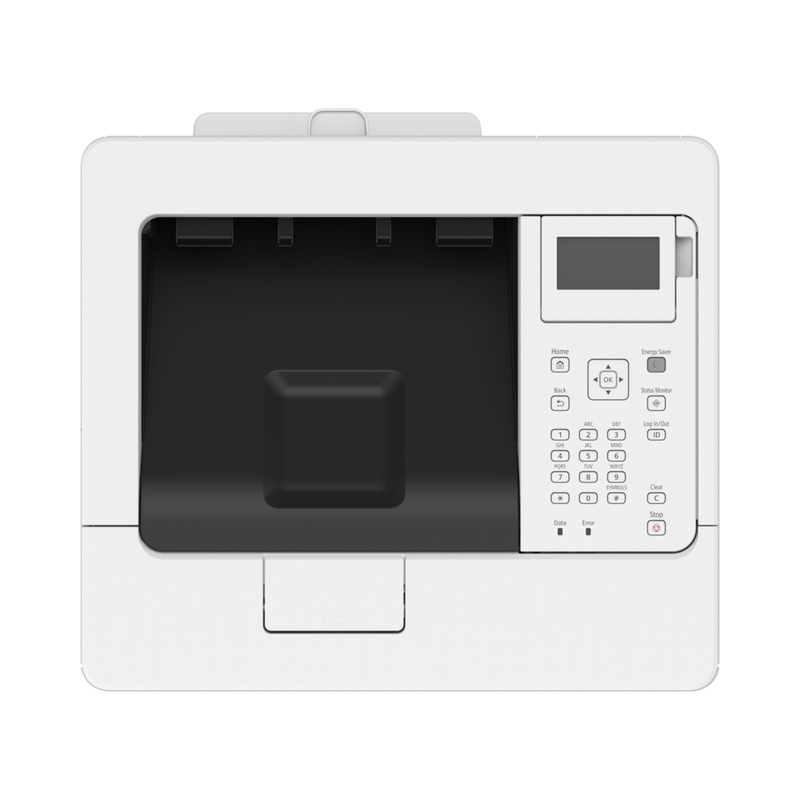

imageFORCE 1643P
Model imageFORCE 1643PPart no. 7063C002EAN 4549292251692
52 specifications
- Memory2000 MB
- Storage32 GB
- Weight16 kg
- ColourNo
- Printing coloursBlack
- Total number of input trays1
Overview
- Memory
- 2000 MB
- Storage
- 32 GB
- Weight
- 16 kg
- Colour
- No
- Printing colours
- Black
- Total number of input trays
- 1
- Brand
- Canon
- Category
- Laser Printer
- Model
- imageFORCE 1643P
- Part number
- 7063C002
- EAN / UPC
- 4549292251692
- Also known as
- Canon imageFORCE 1643P 1200 x 1200 DPI A4 Wi-Fi
Specifications
52 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
| Print technology | Laser |
| Duplex printing | Yes |
| Maximum resolution | 1200 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) | 43 ppm |
Features
| Specification | Value |
|---|---|
| Printing colours | Black |
| Number of print cartridges | 1 |
| Page description languages | UFRII, PCL 6, PostScript 3 |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 1 |
| Total input capacity | 650 sheets |
| Total output capacity | 150 sheets |
| Paper tray 1 input capacity | 550 sheets |
| Multi-Purpose tray | Yes |
| Multi-Purpose tray input capacity | 100 sheets |
| Maximum input capacity | 2300 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Paper tray media types | Thin paper, Plain paper, Recycled paper, Heavy paper, Bond paper, Labels, Letterhead, Envelopes |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5 |
| Envelopes sizes | Com-10, DL, Monarch, C5 |
| Paper tray media weight | 60 - 120 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Direct printing | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Mobile printing technologies | Apple AirPrint, Mopria Print Service |
Performance
| Specification | Value |
|---|---|
| Internal memory | 2000 MB |
| Internal storage capacity | 32 GB |
| Storage media | eMMC |
| Built-in processor | Yes |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | White |
| Built-in display | Yes |
| Control type | Buttons |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 507 W |
| Power consumption (max) | 1400 W |
| Power consumption (standby) | 6.7 W |
| Energy Star Typical Electricity Consumption (TEC) | 0.35 kWh/week |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 V |
| Server operating systems supported | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 30 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 409 mm |
| Depth | 376 mm |
| Height | 275 mm |
| Weight | 16 kg |
