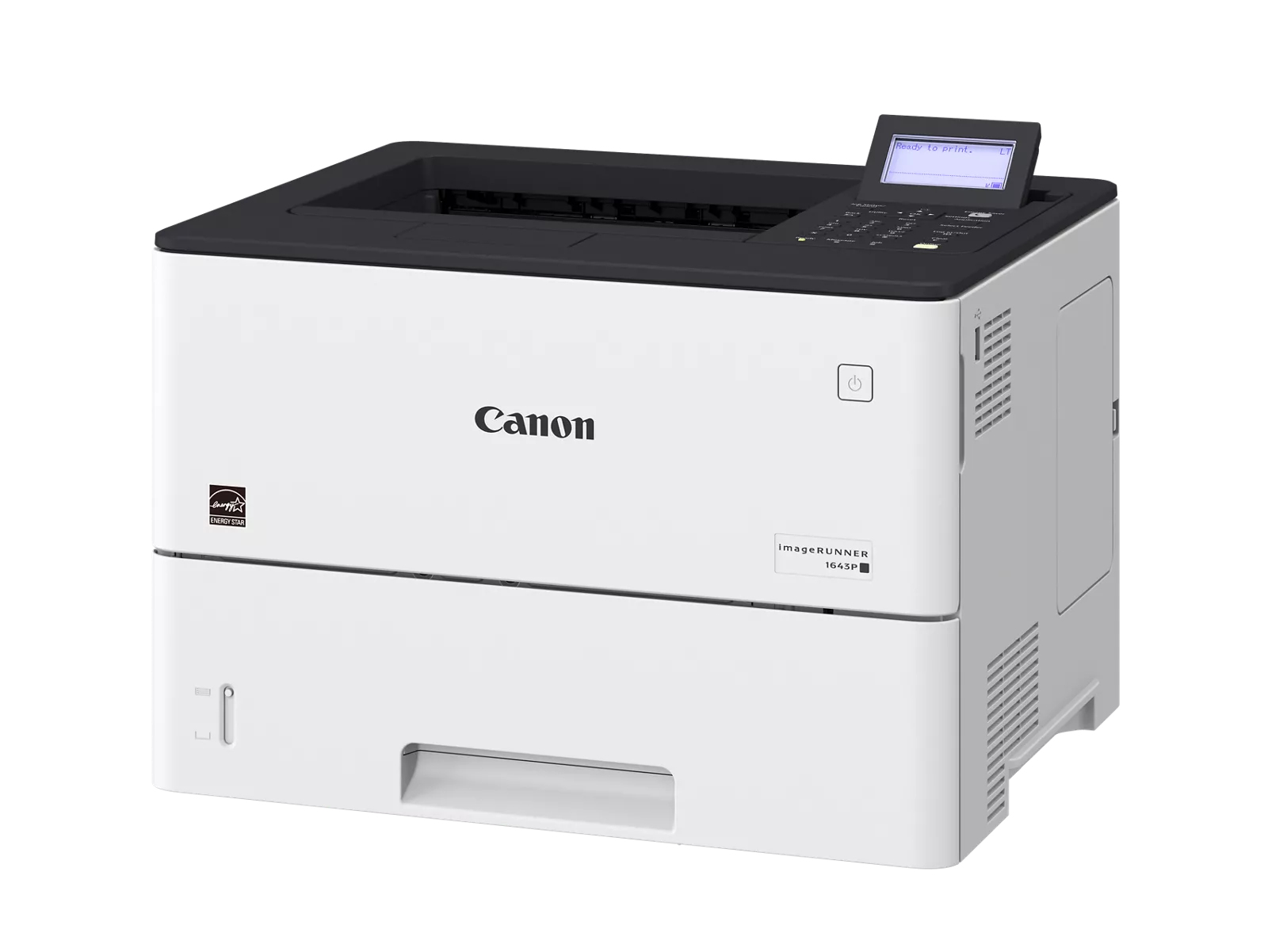

imageRUNNER 1643P
600 x 600 DPI A4
Model 1643PPart no. 3631C001
58 specifications
- Memory1000 MB
- Weight11.5 kg
- ColourNo
- Printing coloursBlack
- Total number of input trays2
- Maximum ISO A-series paper sizeA4
Overview
- Memory
- 1000 MB
- Weight
- 11.5 kg
- Colour
- No
- Printing colours
- Black
- Total number of input trays
- 2
- Maximum ISO A-series paper size
- A4
- Brand
- Canon
- Category
- Laser Printer
- Model
- 1643P
- Part number
- 3631C001
- Also known as
- Canon imageRUNNER 1643P 600 x 600 DPI A4
Specifications
58 specifications in 14 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
| Print technology | Laser |
| Duplex printing | Yes |
| Duplex printing mode | Auto |
| Maximum resolution | 600 x 600 DPI |
| Print resolution black | 1200 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) | 45 ppm |
| Warm-up time | 30 s |
| Time to first page (black, normal) | 5.7 s |
Features
| Specification | Value |
|---|---|
| Printing colours | Black |
| Page description languages | PCL 5e, PCL 6, PostScript 3, UFRII |
| Printer fonts | PCL, PostScript |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 2 |
| Total input capacity | 650 sheets |
| Total output capacity | 150 sheets |
| Paper tray 1 input capacity | 550 sheets |
| Multi-Purpose tray | Yes |
| Multi-Purpose tray input capacity | 100 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Maximum print size | 216 x 356 mm |
| Paper tray media types | Executive, Letterhead |
| ISO A-series sizes (A0...A9) | A4, A5 |
| Non-ISO print media sizes | 16K, Executive, Legal, Letter, Statement |
| Envelopes sizes | C5, Com-10, DL, Monarch |
| Paper tray media weight | 60 - 120 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Direct printing | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB connector | USB Type-A |
| Optional connectivity | Ethernet |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Security algorithms | 802.1x RADIUS, IPSec, SNMPv3, TLS |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1000 MB |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | White |
| Built-in display | Yes |
| Display | LCD |
| Control type | Buttons |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 1370 W |
| Power consumption (off) | 1.9 W |
| Energy Star Typical Electricity Consumption (TEC) | 0.5 kWh/week |
| AC input voltage | 120 - 127 V |
| AC input frequency | 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 R2, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 30 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Silver |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 409 mm |
| Depth | 376 mm |
| Height | 275 mm |
| Weight | 11.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
