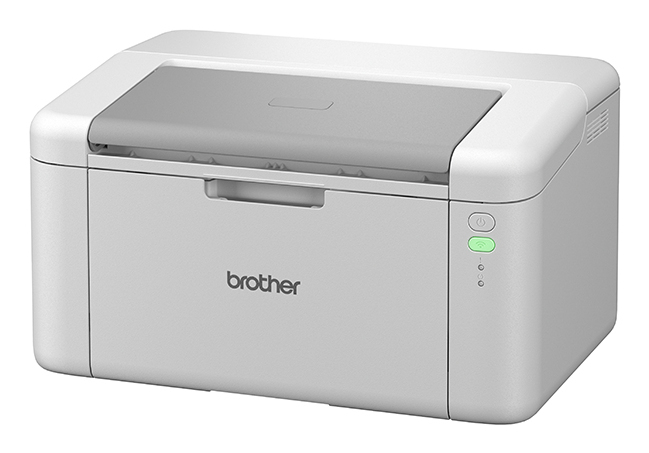

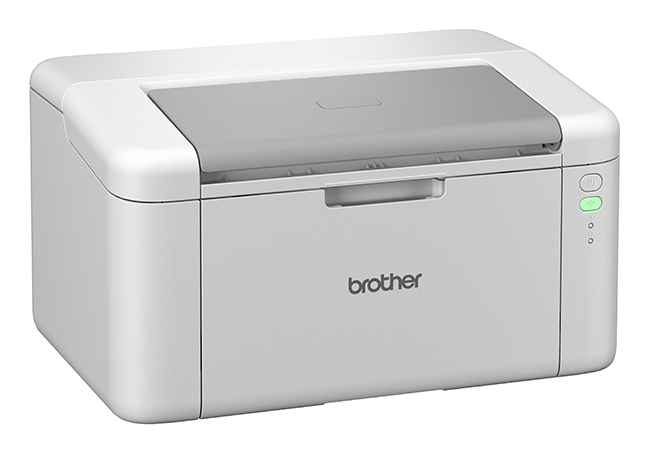

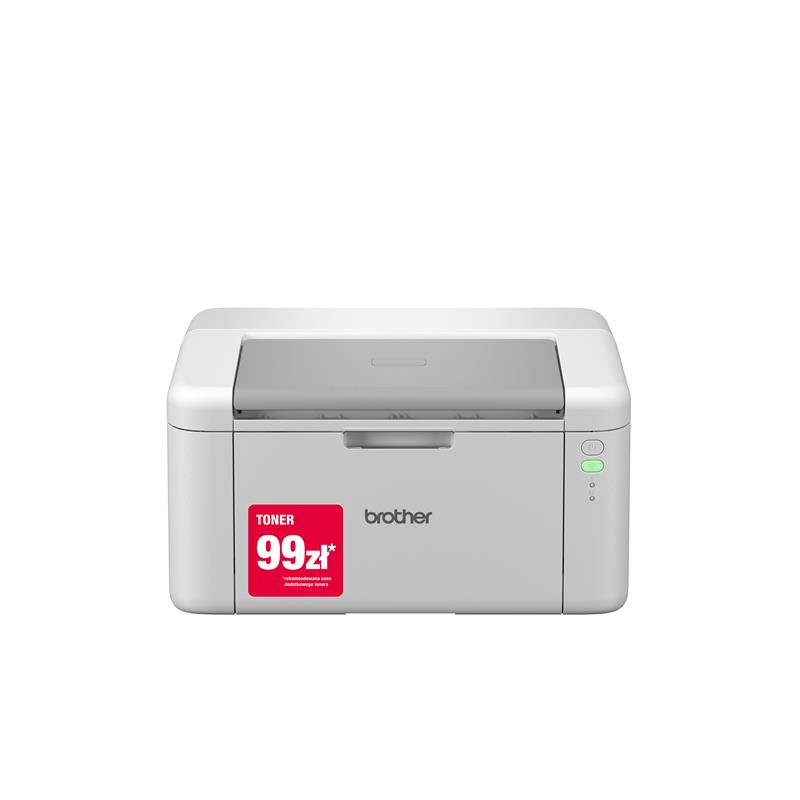

HL-L1230W laser printer
2400 x 600 DPI A4 Wi-Fi
Model HL-L1230WEAN 4977766835343
70 specifications
- Memory64 MB
- Weight4.6 kg
- ColourNo
- Recommended duty cycle0 - 2000 pages per month
- Total number of input trays1
- Maximum ISO A-series paper sizeA4
Overview
- Memory
- 64 MB
- Weight
- 4.6 kg
- Colour
- No
- Recommended duty cycle
- 0 - 2000 pages per month
- Total number of input trays
- 1
- Maximum ISO A-series paper size
- A4
- Brand
- Brother
- Category
- Laser Printer
- Model
- HL-L1230W
- Part number
- HL-L1230W
- EAN / UPC
- 4977766835343, 4977766835657
- Also known as
- Brother HL-L1230W laser printer 2400 x 600 DPI A4 Wi-Fi
Specifications
70 specifications in 15 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
| Print technology | Laser |
| Duplex printing | Yes |
| Duplex printing mode | Manual |
| Maximum resolution | 2400 x 600 DPI |
| Print speed (black, normal quality, A4/US Letter) | 20 ppm |
| Time to first page (black, normal) | 10 s |
| Booklet printing function | Yes |
| N-up printing | 2, 4, 6, 9, 16, 25 |
| Watermark printing | Yes |
| Economical printing | Yes |
Features
| Specification | Value |
|---|---|
| Recommended duty cycle | 0 - 2000 pages per month |
| Printing colours | Black |
| Number of print cartridges | 1 |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 1 |
| Total input capacity | 150 sheets |
| Total output capacity | 50 sheets |
| Paper tray 1 input capacity | 150 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Paper tray media types | Plain paper, Recycled paper |
| ISO A-series sizes (A0...A9) | A4, A5 |
| ISO B-series sizes (B0...B9) | B5 |
| Non-ISO print media sizes | 16K, Executive, Folio, Legal, Letter |
| Paper tray media weight | 65 - 105 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | No |
| Wi-Fi Direct | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | No |
| Near Field Communication (NFC) | No |
| Security algorithms | 64-bit WEP, 128-bit WEP, SMTP-AUTH, SSL/TLS, WPA-PSK, WPA2-PSK, WPA3-SAE |
| Supported network protocols (IPv4) | ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, SMTP Client, IPP/IPPS, FTP Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print) |
| Supported network protocols (IPv6) | NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, SMTP Client, FTP Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, Web Services (Print) |
| Mobile printing technologies | Apple AirPrint, Brother Mobile Connect, Mopria Print Service |
Performance
| Specification | Value |
|---|---|
| Internal memory | 64 MB |
| Card reader integrated | No |
| Sound pressure level (printing) | 51 dB |
| Sound power level (printing) | 66.6 dB |
Design
| Specification | Value |
|---|---|
| Market positioning | Home & office |
| Product colour | White |
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 380 W |
| Power consumption (ready) | 40 W |
| Power consumption (off) | 0.28 W |
| Energy Star Typical Electricity Consumption (TEC) | 0.31 kWh/week |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 32.5 °C |
| Storage temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 340 mm |
| Depth | 238 mm |
| Height | 189 mm |
| Weight | 4.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 415 mm |
| Package depth | 303 mm |
| Package height | 324 mm |
| Package weight | 5.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Cartridge(s) included | Yes |
| Included cartridge capacity (black) | 1500 pages |
| Warranty card | Yes |
| Cables included | AC |
| Printer drum included | Yes |
Other features
| Specification | Value |
|---|---|
| Printing | Mono printing |
