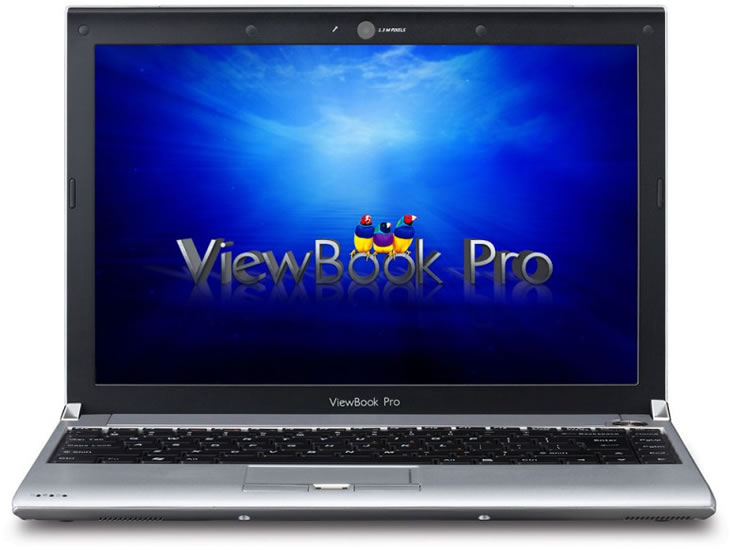

Viewsonic VNB131 laptop Intel® Core™2 Duo SU7300

33.8 cm (13.3") 2 GB DDR2-SDRAM 320 GB UMA Windows 7 Home Premium Silver

Model VNB131EAN 766907449211

121 specifications Checked 2 days ago

Display33.8 cm (13.3")
Resolution1280 x 800 pixels
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage320 GB
GraphicsUMA

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 320 GB
Graphics: UMA

Brand: Viewsonic
Category: Laptop
Model: VNB131
Part number: VNB131
EAN / UPC: 766907449211
Also known as: Viewsonic VNB131 laptop Intel® Core™2 Duo SU7300 33.8 cm (13.3") 2 GB DDR2-SDRAM 320 GB UMA Windows 7 Home Premium Silver

Specifications

121 specifications in 21 groups

Design

Specification	Value
Product colour	Silver

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	1280 x 800 pixels
LED backlight	Yes
Native aspect ratio	16:10
Display brightness	200 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	SU7300
Processor cores	2
Processor threads	2
Processor frequency	1.3 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor front side bus	800 MHz
Processor socket	BGA 956
Processor lithography	45 nm
Processor operating modes	64-bit
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	R0
Motherboard southbridge	Intel ICH9M
Thermal Design Power (TDP)	10 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM

Storage

Specification	Value
Total storage capacity	320 GB
HDD interface	SATA
Optical drive type	DVD-RW
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MiniSD, MMC, MS Duo, MS PRO, SD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	UMA
Graphics card family	Intel

Audio

Specification	Value
Audio system	HDA
Number of built-in speakers	2
Speaker power	1 W

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Wi-Fi	Yes
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	2.0+EDR
Cabling technology	10/100Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
TV-out	No

Performance

Specification	Value
Motherboard chipset	Intel® GS45 Express

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Drivers included	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	42791
Processor code	SLGYV
Processor package size	22 x 22 mm
Supported instruction sets	SSE4
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	4400 mAh

Power

Specification	Value
AC adapter power	65 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	15 - 80%

Certificates

Specification	Value
Certification	FCC

Weight & dimensions

Specification	Value
Weight	1.64 kg
Width	322 mm
Depth	239 mm
Height	25 mm

Packaging data

Specification	Value
Package weight	3.75 kg

Other features

Specification	Value
Infrared data port	No
3D	No
Power supply type	AC 100–240V
Supplied AC adapter type	AC
