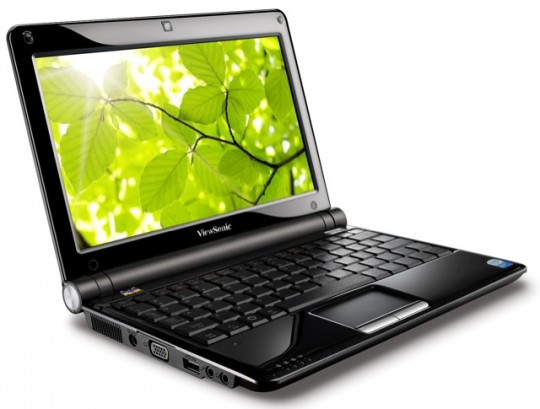

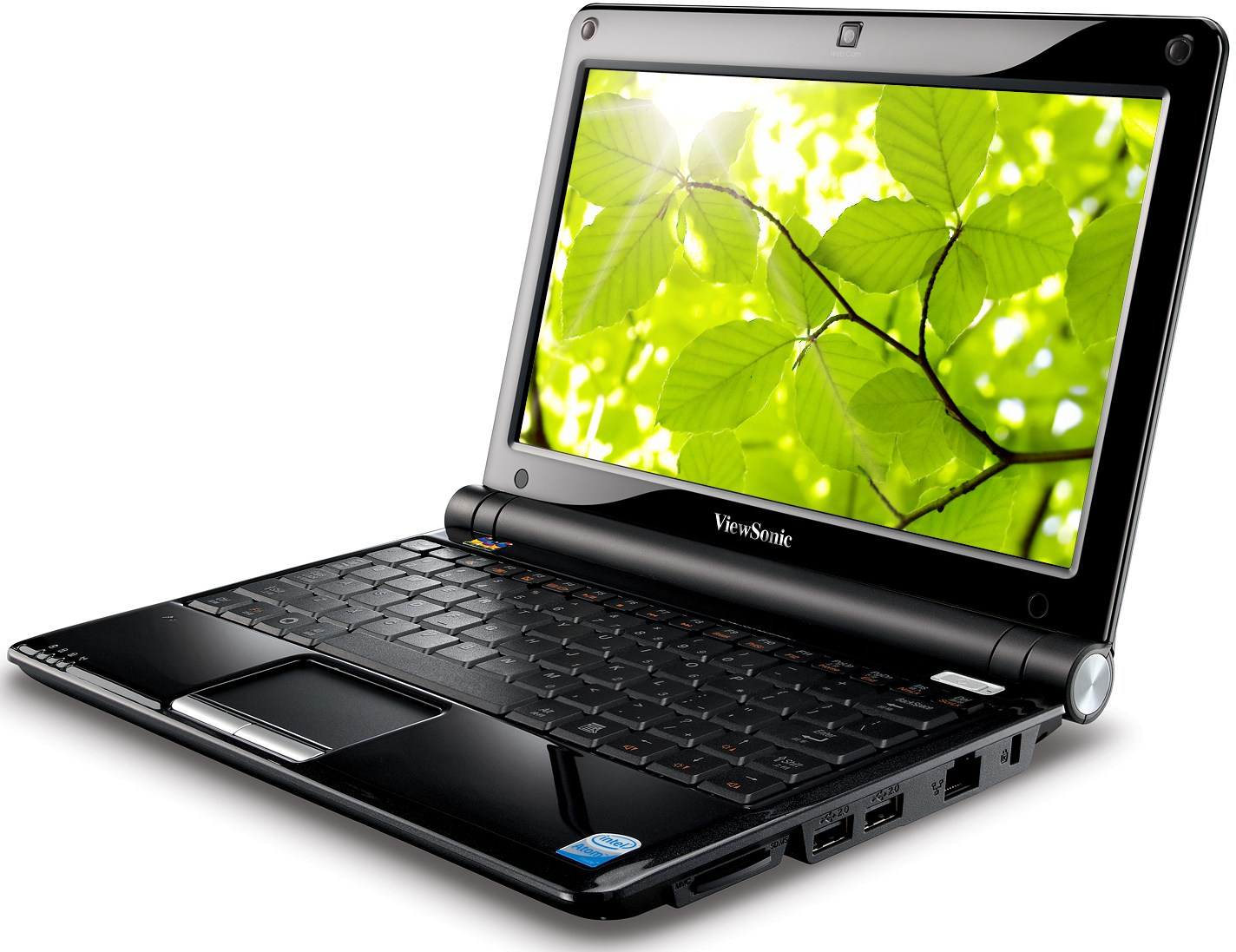

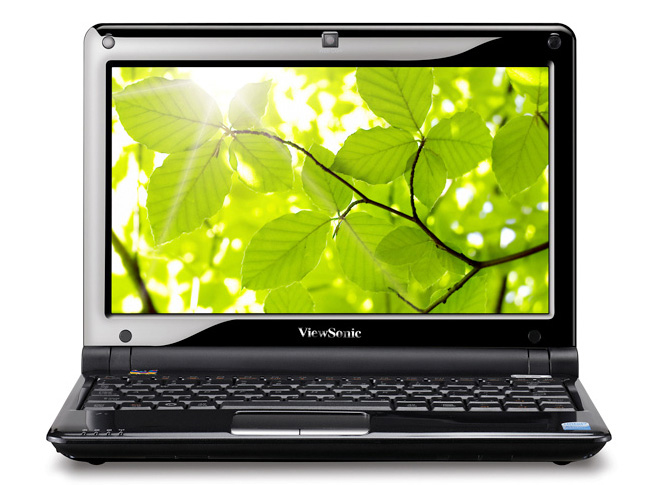

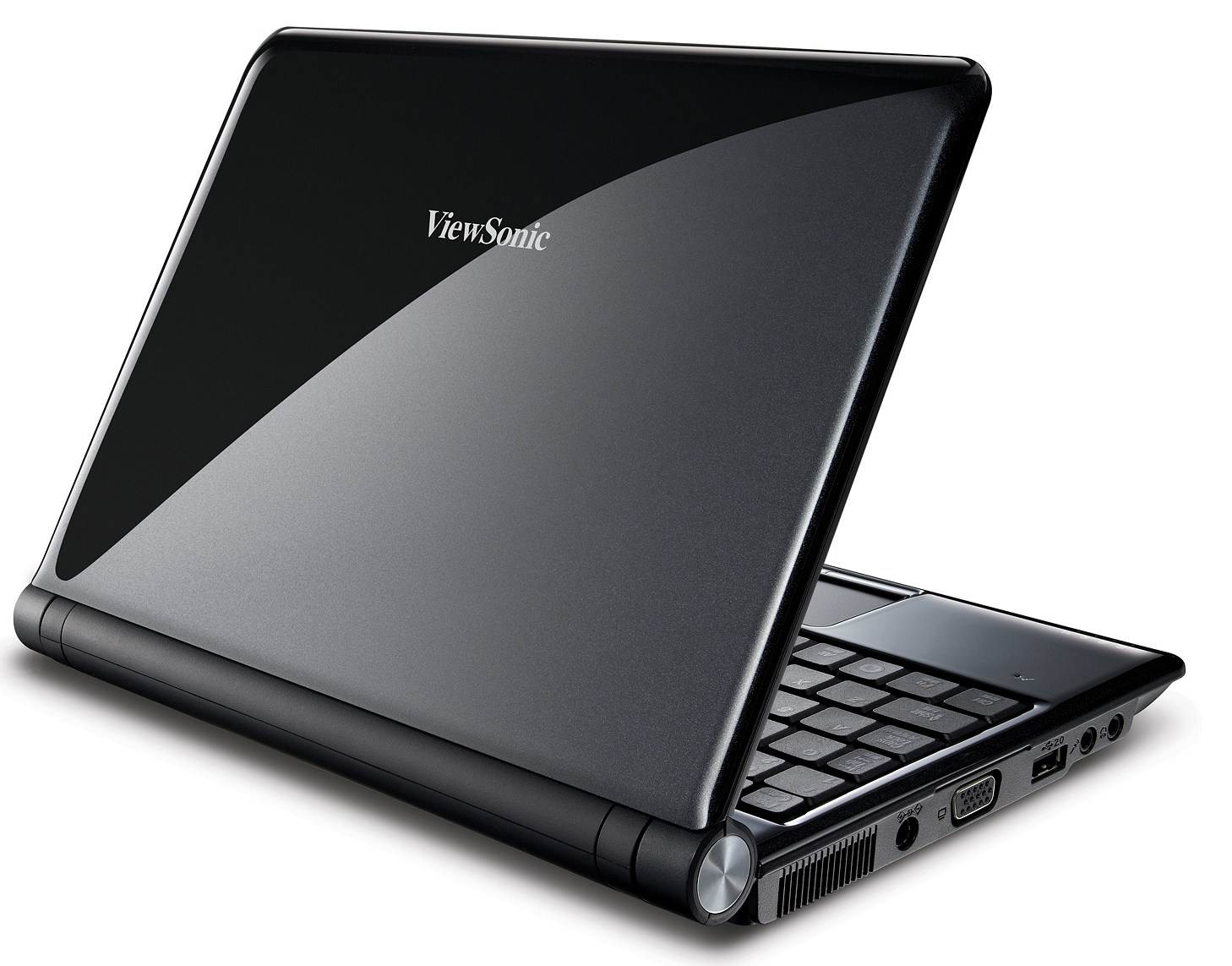

Viewsonic VNB102 netbook Intel Pentium Mobile N270

25.6 cm (10.1") 1 GB DDR2-SDRAM 160 GB Windows 7 Starter Black

Model VNB102

105 specifications Checked 2 days ago

Display25.6 cm (10.1")
Resolution1024 x 600 pixels
ProcessorIntel Pentium Mobile
Memory1 GB
Storage160 GB
TypeNetbook

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1024 x 600 pixels
Processor: Intel Pentium Mobile
Memory: 1 GB
Storage: 160 GB
Type: Netbook

Brand: Viewsonic
Category: Laptop
Model: VNB102
Part number: VNB102
Also known as: Viewsonic VNB102 netbook Intel Pentium Mobile N270 25.6 cm (10.1") 1 GB DDR2-SDRAM 160 GB Windows 7 Starter Black

Specifications

105 specifications in 20 groups

Design

Specification	Value
Product type	Netbook
Product colour	Black

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1024 x 600 pixels
LED backlight	No
Native aspect ratio	5:3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium Mobile
Processor model	N270
Processor cores	1
Processor threads	2
Processor frequency	1.6 GHz
Processor cache	0.512 MB
Processor cache type	L2
Processor front side bus	533 MHz
Processor socket	Socket F (1207)
Processor lithography	45 nm
Processor operating modes	32-bit
Processor series	Intel Atom N200 Series
Processor codename	Diamondville
Bus type	FSB
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	2.5 W
Tjunction	90 °C
Number of Processing Die Transistors	47 M
Processing Die size	26 mm²
CPU multiplier (bus/core ratio)	12
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM

Storage

Specification	Value
Total storage capacity	160 GB
HDD capacity	160 GB
HDD interface	SATA
HDD size	2.5"
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, SD

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	3 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Wi-Fi	Yes
Networking features	Fast Ethernet
Wireless technology	IEEE 802.11 b/g
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
VGA (D-Sub) ports quantity	1
Headphone outputs	1

Performance

Specification	Value
GPS (satellite)	No

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows 7 Starter

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	No
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	36331
Processor code	SLB73
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery life (max)	6 h

Power

Specification	Value
AC adapter power	40 W
AC adapter output voltage	19 V
DC-in jack	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	15 - 85%

Certificates

Specification	Value
Certification	UL, FCC, RoHS

Weight & dimensions

Specification	Value
Weight	1.1 kg
Width	253 mm
Depth	188 mm
Height	23 mm
Weight (imperial)	1.09 kg (2.4 lbs)

Packaging data

Specification	Value
Package weight	1.8 kg

Other features

Specification	Value
Supplied AC adapter type	AC
