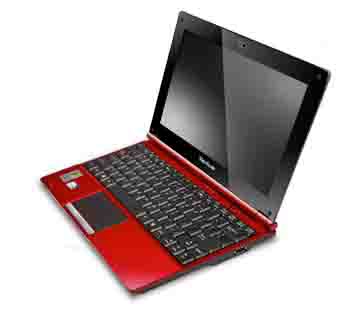

Viewsonic VNB101EAFF-E netbook Intel Atom® N280

25.4 cm (10") 1 GB DDR2-SDRAM Windows XP Home Edition Red

Model VNB101EAFF-E

105 specifications Checked 2 days ago

Display25.4 cm (10")
Resolution1024 x 600 pixels
ProcessorIntel Atom®
Memory1 GB
Storage160 GB
Battery3400 mAh

See all specifications

Overview

Display: 25.4 cm (10")
Resolution: 1024 x 600 pixels
Processor: Intel Atom®
Memory: 1 GB
Storage: 160 GB
Battery: 3400 mAh

Brand: Viewsonic
Category: Laptop
Model: VNB101EAFF-E
Part number: VNB101EAFF-E
Also known as: Viewsonic VNB101EAFF-E netbook Intel Atom® N280 25.4 cm (10") 1 GB DDR2-SDRAM Windows XP Home Edition Red

Specifications

105 specifications in 19 groups

Design

Specification	Value
Product type	Netbook
Product colour	Red

Display

Specification	Value
Display diagonal	25.4 cm (10")
Display resolution	1024 x 600 pixels
LED backlight	Yes
Native aspect ratio	5:3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	N280
Processor cores	1
Processor threads	2
Processor frequency	1.66 GHz
Processor cache	0.512 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor lithography	45 nm
Processor operating modes	32-bit
Processor series	Intel Atom N200 Series
Processor codename	Diamondville
Bus type	FSB
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	2.5 W
Tjunction	90 °C
Number of Processing Die Transistors	47 M
Processing Die size	26 mm²
CPU multiplier (bus/core ratio)	10
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	667 MHz

Storage

Specification	Value
HDD capacity	160 GB
HDD interface	SATA
Card reader integrated	Yes
Compatible memory cards	MMC, MS pro, SD, SDHC

Graphics

Specification	Value
Maximum graphics card memory	0.128 GB
Graphics card	GMA 950

Audio

Specification	Value
Audio system	H
Number of built-in speakers	2
Speaker power	1 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Wi-Fi	Yes
Networking features	Fast Ethernet
Wireless technology	IEEE 802.11b/g
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	2.1+EDR

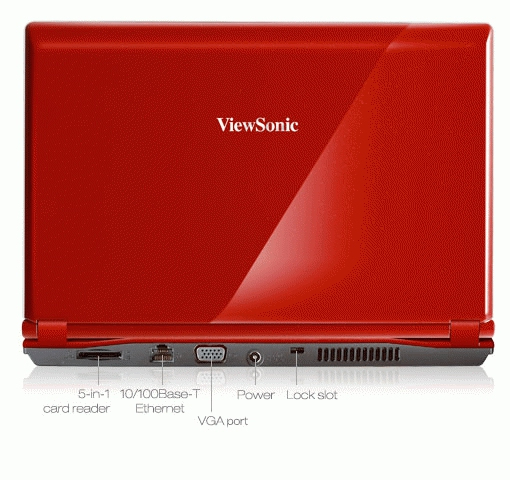

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Microphone in	Yes

Keyboard

Specification	Value
Keyboard number of keys	84

Software

Specification	Value
Operating system installed	Windows XP Home Edition
Compatible operating systems	Linux

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	No
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	41411
Processor code	SLGL9
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery capacity	3400 mAh

Power

Specification	Value
AC adapter power	36 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	20 - 55 °C
Operating relative humidity (H-H)	35 - 85%
Storage relative humidity (H-H)	20 - 93%

Weight & dimensions

Specification	Value
Weight	1.1 kg
Width	266 mm
Depth	182 mm
Height	25 mm

Other features

Specification	Value
Power requirements	100 - 240V
Supplied AC adapter type	AC
