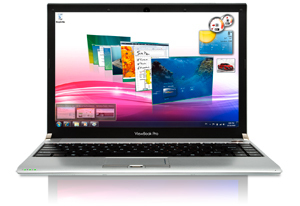

Viewsonic ViewBook Pro

Model ViewBook ProPart no. VNB131B_7PUK_01EAN 766907427318

126 specifications Checked 2 days ago

Display33.8 cm (13.3")
Resolution1280 x 800 pixels
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage320 GB
GraphicsIntel® GMA 4500M

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 320 GB
Graphics: Intel® GMA 4500M

Brand: Viewsonic
Category: Laptop
Model: ViewBook Pro
Part numbers: VNB131B_7PUK_01, VNB131S_7HUK_01
EAN / UPC: 766907427318, 766907425314
Also known as: Viewsonic ViewBook Pro Intel® Core™2 Duo SU7300 33.8 cm (13.3") 2 GB DDR2-SDRAM 320 GB Intel® GMA 4500M Windows 7 Professional Silver

Specifications

126 specifications in 20 groups

Design

Specification	Value
Product colour	Silver

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	1280 x 800 pixels
LED backlight	Yes
Native aspect ratio	16:10
Display brightness	200 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	SU7300
Processor cores	2
Processor threads	2
Processor frequency	1.3 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor front side bus	800 MHz
Processor socket	BGA 956
Processor lithography	45 nm
Processor operating modes	64-bit
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	R0
Thermal Design Power (TDP)	10 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	800 MHz
Memory slots	1x SO-DIMM

Storage

Specification	Value
Total storage capacity	320 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, MS Pro, SD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 4500M
Graphics card family	Intel

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	1 W

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Networking features	10/100 Ethernet
Wireless technology	802.11 b/g/n
Bluetooth	Yes
Bluetooth version	2.1+EDR
Wireless compliance	Wi-Fi

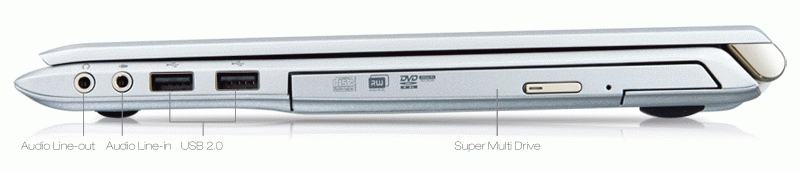

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® GS45 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard number of keys	86

Software

Specification	Value
Operating system installed	Windows 7 Professional
Trial software	TrendMicro Internet Security
Bundled software	Cyberlink YouCam 3 Cyberlink MediaShow 5

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	42791
Processor code	SLGYV
Processor package size	22 x 22 mm
Supported instruction sets	SSE4
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	4400 mAh
Battery life (max)	8 h

Power

Specification	Value
DC-in jack	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-30 - 65 °C
Operating relative humidity (H-H)	15 - 80%
Storage relative humidity (H-H)	5 - 85%
Operating altitude	0 - 1800 m

Weight & dimensions

Specification	Value
Weight	1.6 kg
Width	322 mm
Depth	239 mm
Height	17 mm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Power requirements	AC 100–240V
Power supply type	19V DC; 65W
Internal modem	No
Supplied AC adapter type	AC
