Viewsonic ViewBook 120W

Model ViewBook 120WPart no. VNB120W_7HUK_01

103 specifications Checked 2 days ago

Display30.7 cm (12.1")
Resolution1280 x 800 pixels
ProcessorIntel® Celeron®
Memory2 GB
Storage250 GB
TypeNetbook

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1280 x 800 pixels
Processor: Intel® Celeron®
Memory: 2 GB
Storage: 250 GB
Type: Netbook

Brand: Viewsonic
Category: Laptop
Model: ViewBook 120W
Part numbers: VNB120W_7HUK_01, VNB120W_7HAZ_01
Also known as: Viewsonic ViewBook 120W Intel® Celeron® SU2300 Netbook 30.7 cm (12.1") 2 GB DDR2-SDRAM Windows 7 Home Premium White

Specifications

103 specifications in 18 groups

Design

Specification	Value
Product type	Netbook
Product colour	White

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1280 x 800 pixels
LED backlight	Yes
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	SU2300
Processor cores	2
Processor threads	2
Processor frequency	1.2 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	BGA 956
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor SU2000 Series for Mobile
Processor codename	Penryn
Bus type	FSB
FSB Parity	Yes
Stepping	R0
Thermal Design Power (TDP)	10 W
Tjunction	100 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	667 MHz

Storage

Specification	Value
HDD capacity	250 GB
HDD interface	SATA
HDD speed	5400 RPM
HDD size	2.5"
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, MS DUO, MS PRO, SD, SDHC

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Wi-Fi	Yes
Networking features	10/100BASE-T
Wireless technology	802.11b/g/n
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	2.1+EDR

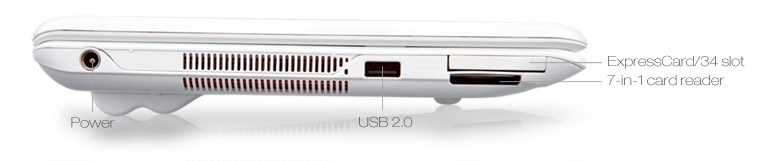

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Microphone in	Yes
ExpressCard slot	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard number of keys	82

Software

Specification	Value
Operating system installed	Windows 7 Home Premium

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	42779
Processor code	SLGSB
Processor package size	22 x 22 mm
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	0 h

Power

Specification	Value
AC adapter power	65 W

Security

Specification	Value
Cable lock slot	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	30 - 65 °C
Operating relative humidity (H-H)	15 - 80%
Storage relative humidity (H-H)	5 - 85%

Weight & dimensions

Specification	Value
Weight	1.5 kg
Width	289 mm
Depth	203 mm
Height	22 mm

Other features

Specification	Value
Power requirements	AC100-240V
Supplied AC adapter type	AC
