Viewsonic ViewBook 120B, FR

Model ViewBook 120B, FRPart no. VNB120B_7HFR_01

120 specifications Checked 2 days ago

Display30.7 cm (12.1")
Resolution1280 x 800 pixels
ProcessorIntel® Celeron®
Memory2 GB
Storage250 GB
GraphicsIntel® GMA 4500M

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1280 x 800 pixels
Processor: Intel® Celeron®
Memory: 2 GB
Storage: 250 GB
Graphics: Intel® GMA 4500M

Brand: Viewsonic
Category: Laptop
Model: ViewBook 120B, FR
Part number: VNB120B_7HFR_01
Also known as: Viewsonic ViewBook 120B, FR Intel® Celeron® SU2300 30.7 cm (12.1") 2 GB DDR2-SDRAM 250 GB Intel® GMA 4500M Windows 7 Home Premium Black

Specifications

120 specifications in 18 groups

Design

Specification	Value
Product colour	Black

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1280 x 800 pixels
LED backlight	Yes
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	SU2300
Processor cores	2
Processor threads	2
Processor frequency	1.2 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	BGA 956
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor SU2000 Series for Mobile
Processor codename	Penryn
Bus type	FSB
FSB Parity	Yes
Stepping	R0
Thermal Design Power (TDP)	10 W
Tjunction	100 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	667 MHz
Memory layout (slots x size)	1 x 2 GB

Storage

Specification	Value
Total storage capacity	250 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, MS DUO, MS PRO, SD, SDHC

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 4500M
Graphics card family	Intel

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Wi-Fi	Yes
Networking features	10/100BASE-T
Networking type	Ethernet LAN, WLAN
Bluetooth	Yes
Bluetooth version	2.1+EDR

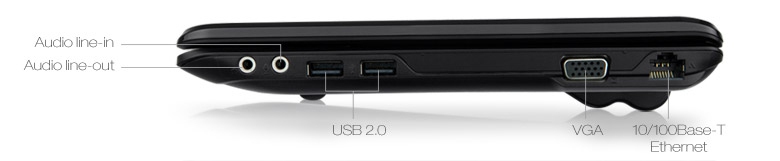

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® GS40 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard number of keys	82

Software

Specification	Value
Operating system installed	Windows 7 Home Premium

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	42779
Processor code	SLGSB
Processor package size	22 x 22 mm
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Power

Specification	Value
Battery life power on	8 h

Security

Specification	Value
Cable lock slot	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	30 - 65 °C
Operating relative humidity (H-H)	15 - 80%
Storage relative humidity (H-H)	5 - 85%

Weight & dimensions

Specification	Value
Weight	1.5 kg
Width	289 mm
Depth	203 mm
Height	22 mm

Other features

Specification	Value
Infrared data port	No
Internal modem	No
TV tuner integrated	No
Video in	0
Supplied AC adapter type	AC
