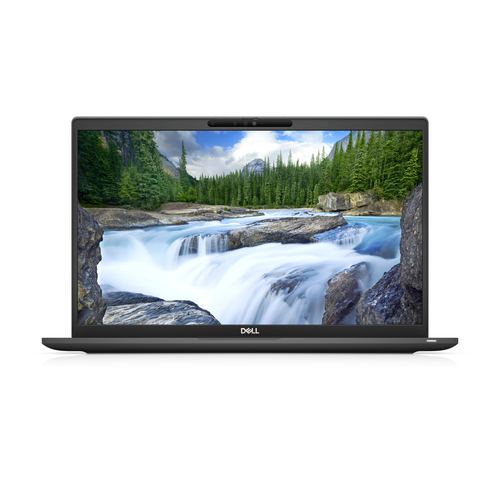

T1A Latitude 7530

Latitude 7530

Model Latitude 7530Part no. L-7530-SCA-B101EAN 5711603082243

96 specifications Checked today

Display39.6 cm (15.6")
ProcessorIntel® Core™ i5
Memory16 GB
Storage256 GB
GraphicsNot available
SpeedWi-Fi 6E (802.11ax)

See all specifications

Overview

Display: 39.6 cm (15.6")
Processor: Intel® Core™ i5
Memory: 16 GB
Storage: 256 GB
Graphics: Not available
Speed: Wi-Fi 6E (802.11ax)

Brand: T1A
Category: Laptop
Model: Latitude 7530
Part numbers: L-7530-SCA-B101, L-7530-SCA-P101, L-7530-SCA-T101
EAN / UPC: 5711603082243, 5711603082250, 5711603082267
Also known as: T1A Latitude 7530 Intel® Core™ i5 i5-1245U Laptop 39.6 cm (15.6") 16 GB DDR4-SDRAM 256 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Grey

Specifications

96 specifications in 16 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Form factor	Clamshell
Market positioning	Premium

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Panel type	WVA
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	12th gen Intel® Core™ i5
Processor model	i5-1245U
Processor cores	10
Processor threads	12
Processor boost frequency	4.4 GHz
Performance cores	2
Efficient cores	8
Performance-core Max Turbo Frequency	4.4 GHz
Efficient-core Max Turbo Frequency	3.3 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Maximum turbo power	55 W
Processor base power	15 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3281-CG
Audio system	MaxxAudio Pro
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Antenna type	2x2
Wi-Fi data rate (max)	2400 Mbit/s
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	No
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
HDMI version	2.0
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
PowerShare	Yes
Number of USB ports with PowerShare support	2

Keyboard

Specification	Value
Pointing device	SinglePoint
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit

Power

Specification	Value
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes
USB charging voltage	20,5,9,15 V
USB charging current	3.25 A

Security

Specification	Value
Cable lock slot	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Weight & dimensions

Specification	Value
Weight	1.54 kg
Width	357.7 mm
Depth	229.8 mm
Height (front)	1.77 cm
Height (rear)	1.89 cm
