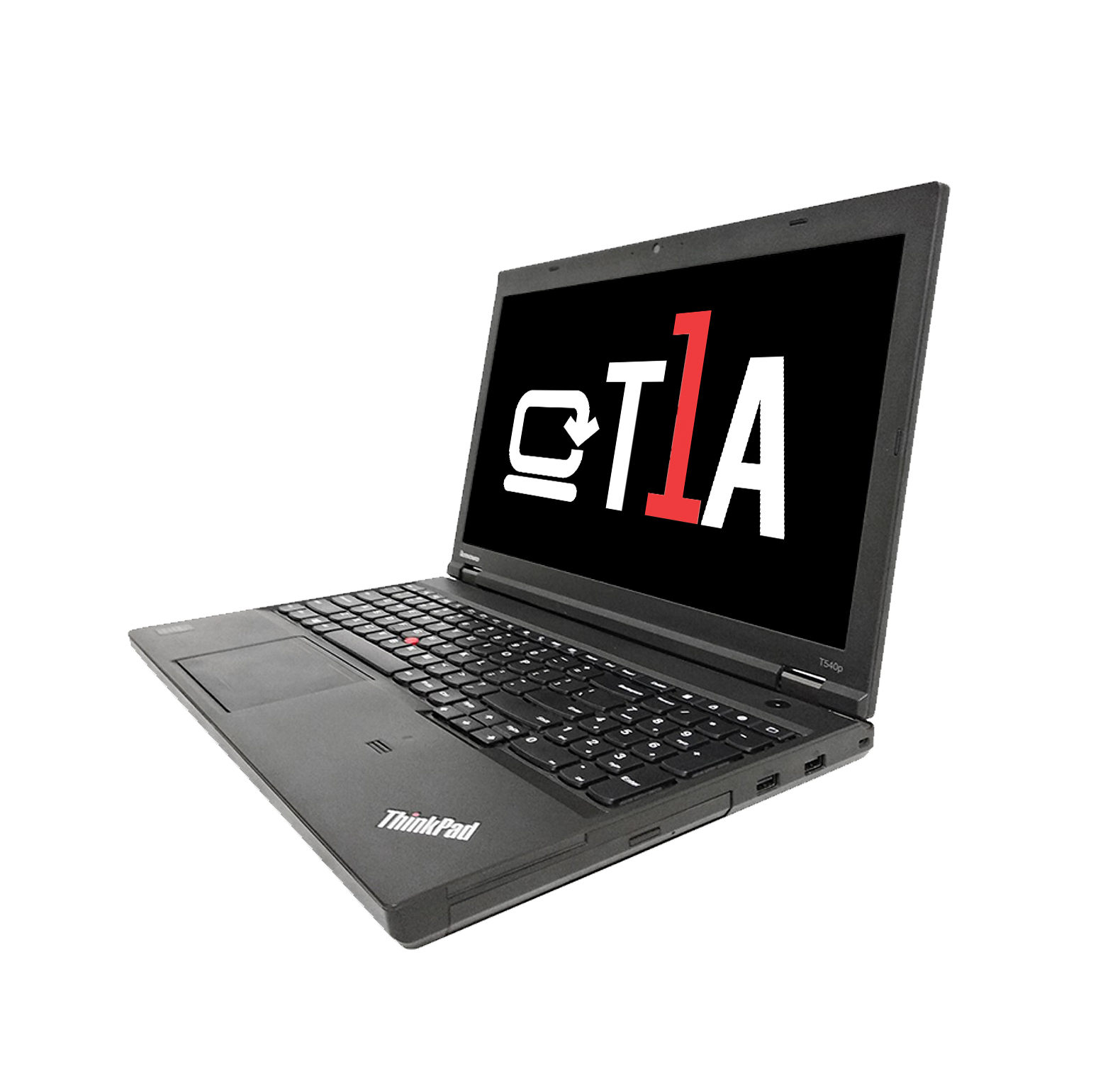

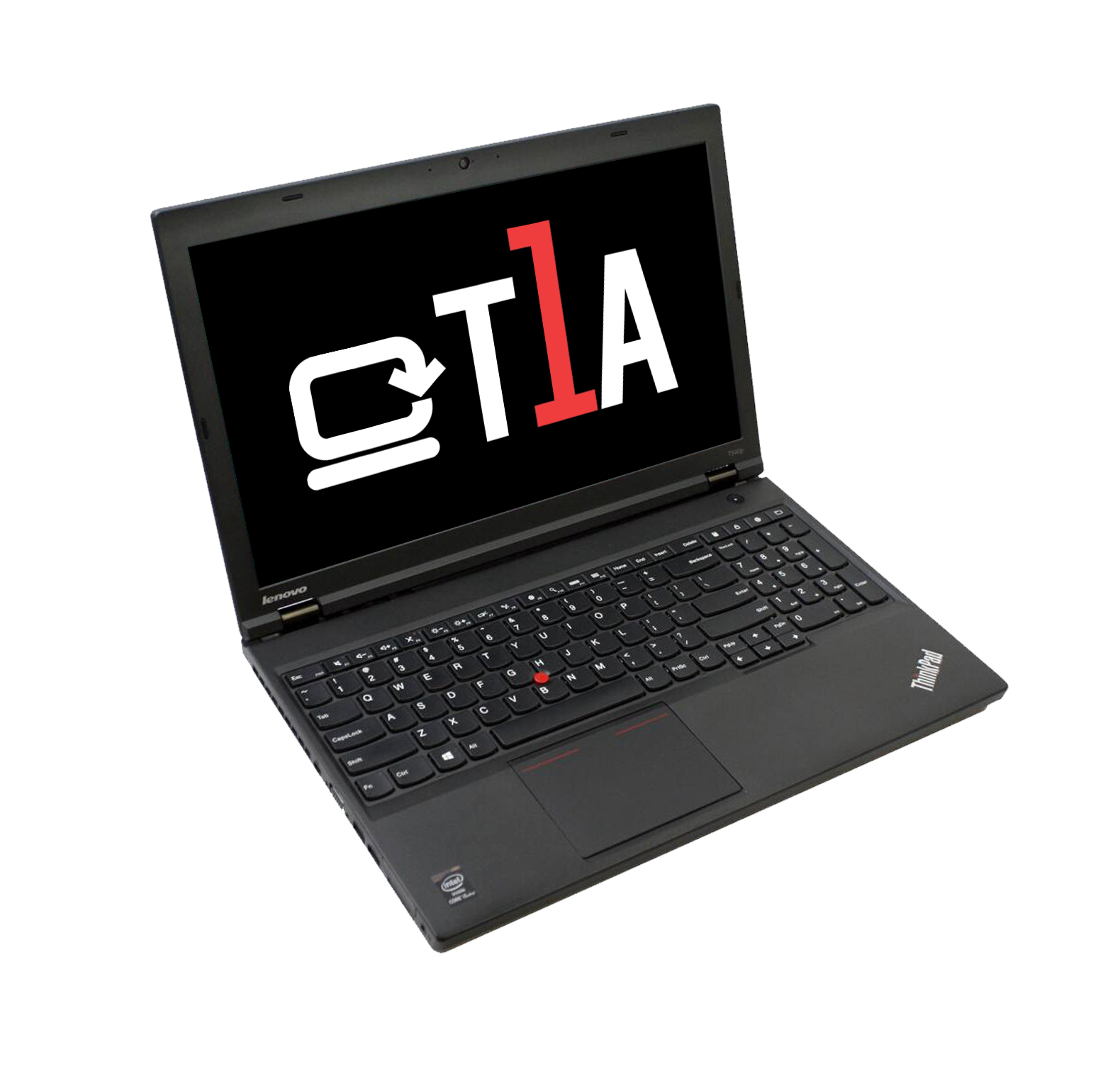

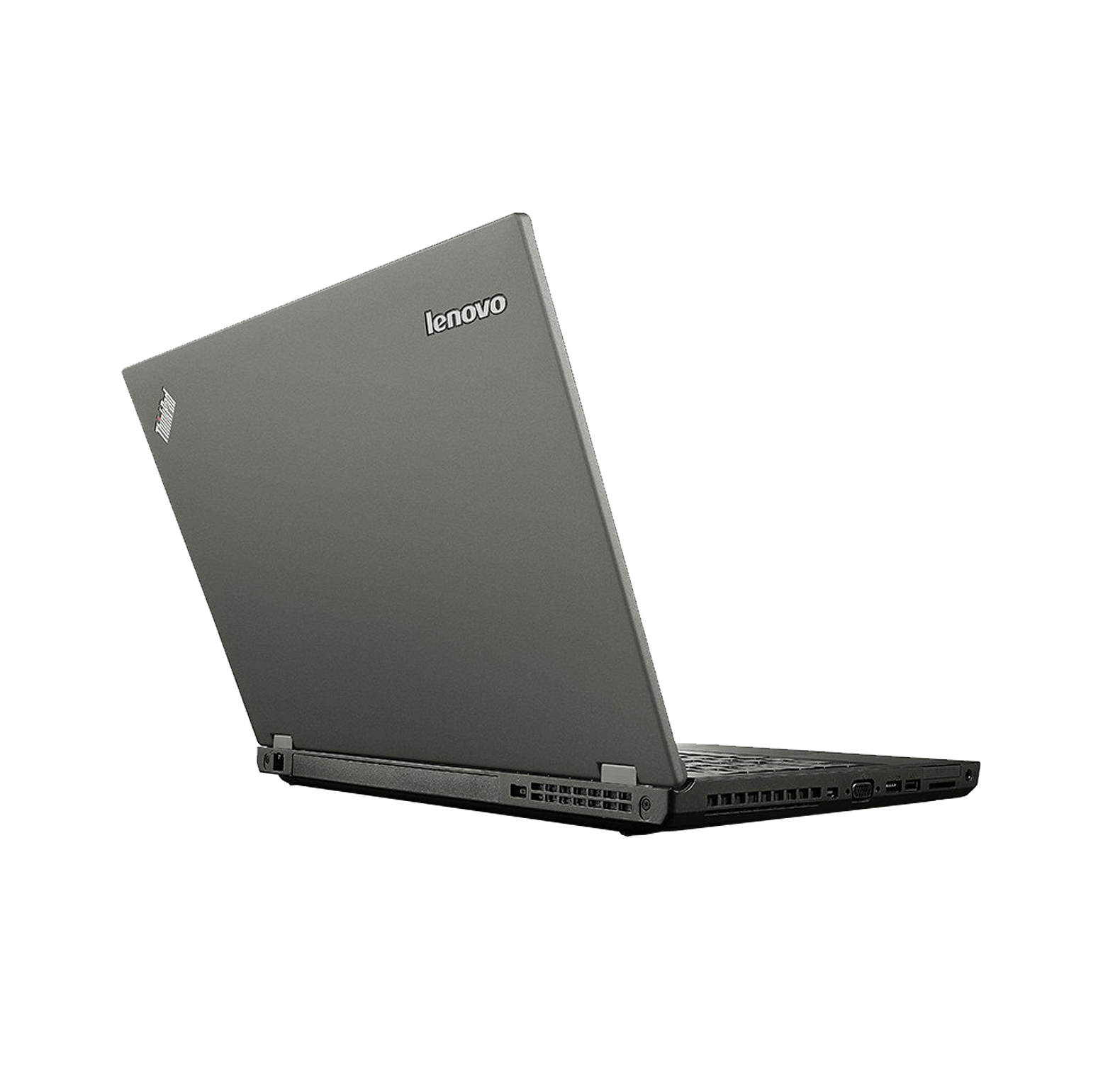

L-T540P-UK-BP12 laptop Intel® Core™ i5 i5-4300M

39.6 cm (15.6") 8 GB DDR3L-SDRAM 250 GB SSD Wi-Fi 4 (802.11n) Windows 10 Pro Black, Graphite

Model L-T540P-UK-BP12EAN 5711603043855

111 specifications Checked today

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage250 GB
SpeedWi-Fi 4 (802.11n)

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 250 GB
Speed: Wi-Fi 4 (802.11n)

Brand: T1A
Category: Laptop
Model: L-T540P-UK-BP12
Part number: L-T540P-UK-BP12
EAN / UPC: 5711603043855
Also known as: T1A L-T540P-UK-BP12 laptop Intel® Core™ i5 i5-4300M 39.6 cm (15.6") 8 GB DDR3L-SDRAM 250 GB SSD Wi-Fi 4 (802.11n) Windows 10 Pro Black, Graphite

Specifications

111 specifications in 17 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, Graphite
Form factor	Clamshell
Refurbished	Yes

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	No
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	4th gen Intel® Core™ i5
Processor model	i5-4300M
Processor cores	2
Processor threads	4
Processor boost frequency	3.3 GHz
Processor frequency	2.6 GHz
System bus rate	5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	PGA946
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-4300 Mobile series
Processor codename	Haswell
Bus type	DMI
Stepping	C0
Thermal Design Power (TDP)	37 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3L-SDRAM
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	250 GB
Storage media	SSD
Optical drive type	DVD+RW
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics 4600
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	400 MHz
On-board graphics card dynamic frequency (max)	1250 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	0x416

Audio

Specification	Value
Audio chip	Realtek ALC3232
Audio system	Dolby Advanced Audio
Number of built-in speakers	2
Speaker power	1 W

Network

Specification	Value
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
Mini DisplayPorts quantity	1
VGA (D-Sub) ports quantity	1
Combo headphone/mic port	Yes
Docking connector	Yes

Keyboard

Specification	Value
Numeric keypad	Yes

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	76347
Processor code	SR1H9
Processor package size	37.5 x 37.5 x 4.7 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Power

Specification	Value
AC adapter power	65 W

Security

Specification	Value
Password protection	Yes
Password protection type	Power on, Supervisor

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.41 kg
Width	376.6 mm
Depth	248.1 mm
Height	29.9 mm
