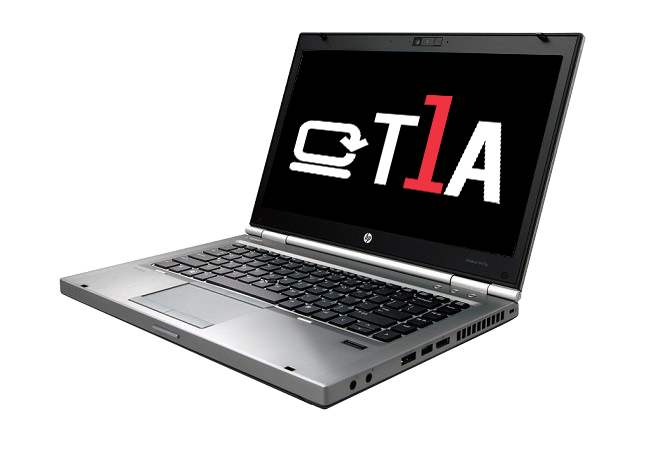

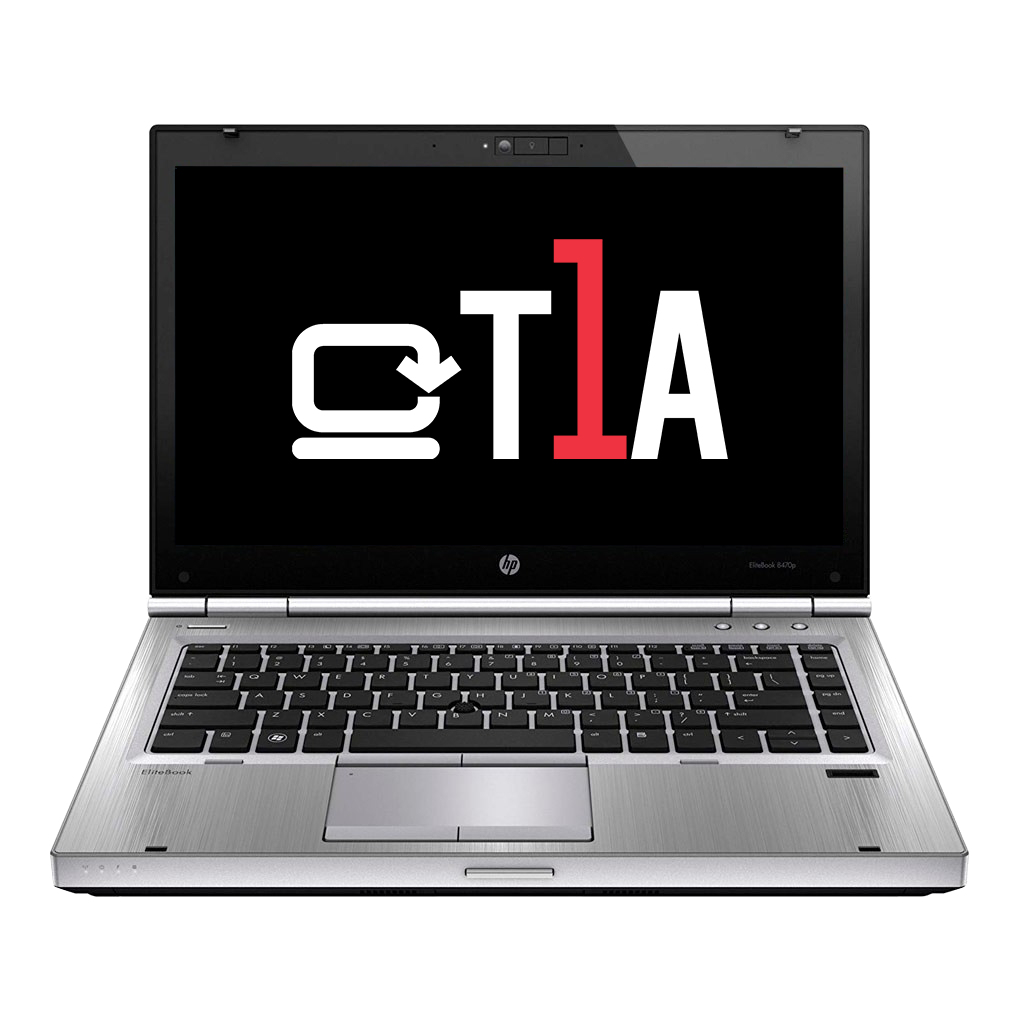

L-EB8570P-SCA-P001 laptop Intel® Core™ i7 i7-3520M Mobile workstation

39.6 cm (15.6") HD+ 4 GB DDR3-SDRAM 128 GB SSD Wi-Fi 4 (802.11n) Windows 10 Pro Grey,

Model L-EB8570P-SCA-P001EAN 5711603047914

118 specifications Checked today

Display39.6 cm (15.6")
Resolution1600 x 900 pixels
ProcessorIntel® Core™ i7
Memory4 GB
Storage128 GB
SpeedWi-Fi 4 (802.11n)

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1600 x 900 pixels
Processor: Intel® Core™ i7
Memory: 4 GB
Storage: 128 GB
Speed: Wi-Fi 4 (802.11n)

Brand: T1A
Category: Laptop
Model: L-EB8570P-SCA-P001
Part number: L-EB8570P-SCA-P001
EAN / UPC: 5711603047914
Also known as: T1A L-EB8570P-SCA-P001 laptop Intel® Core™ i7 i7-3520M Mobile workstation 39.6 cm (15.6") HD+ 4 GB DDR3-SDRAM 128 GB SSD Wi-Fi 4 (802.11n) Windows 10 Pro Grey,

Specifications

118 specifications in 15 groups

Design

Specification	Value
Product type	Mobile workstation
Product colour	Grey, Metallic
Form factor	Clamshell
Refurbished	Yes

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1600 x 900 pixels
Touchscreen	No
HD type	HD+
LED backlight	Yes
Native aspect ratio	16:9
Display diagonal (metric)	39.6 cm

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	3rd gen Intel® Core™ i7
Processor model	i7-3520M
Processor cores	2
Processor threads	4
Processor boost frequency	3.6 GHz
Processor frequency	2.9 GHz
System bus rate	5 GT/s
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	BGA 1023
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-3500 Mobile series
Processor codename	Ivy Bridge
Bus type	DMI
Stepping	L1
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x8, 1x16, 2x4, 2x8
PCI Express slots version	3.0
CPU multiplier (bus/core ratio)	29

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	128 GB
Storage media	SSD
Optical drive type	DVD+RW
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1250 MHz
On-board graphics card ID	0x166

Audio

Specification	Value
Audio system	SRS Premium Sound
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0
Integrated 4G WiMAX	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Microphone in	Yes
Docking connector	Yes

Keyboard

Specification	Value
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Operating system language	Multilingual

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	64893
Processor code	SR0MU
Processor package size	37.5 x 37.5 (rPGA988B); 31.0 x 24.0 (BGA1023)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Power

Specification	Value
AC adapter power	90 W

Weight & dimensions

Specification	Value
Weight	2.71 kg
Width	374 mm
Depth	250 mm
Height	34 mm
