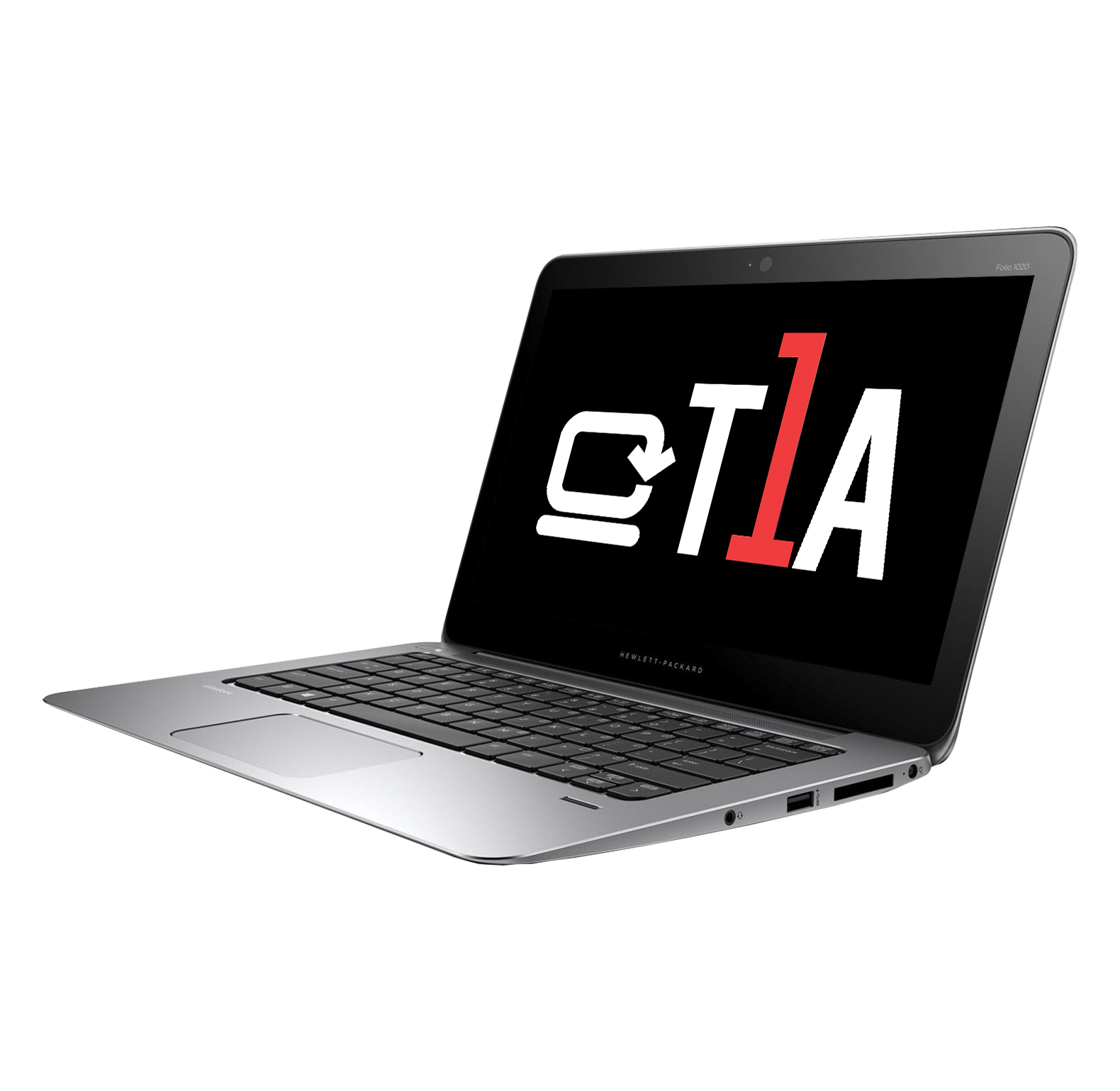

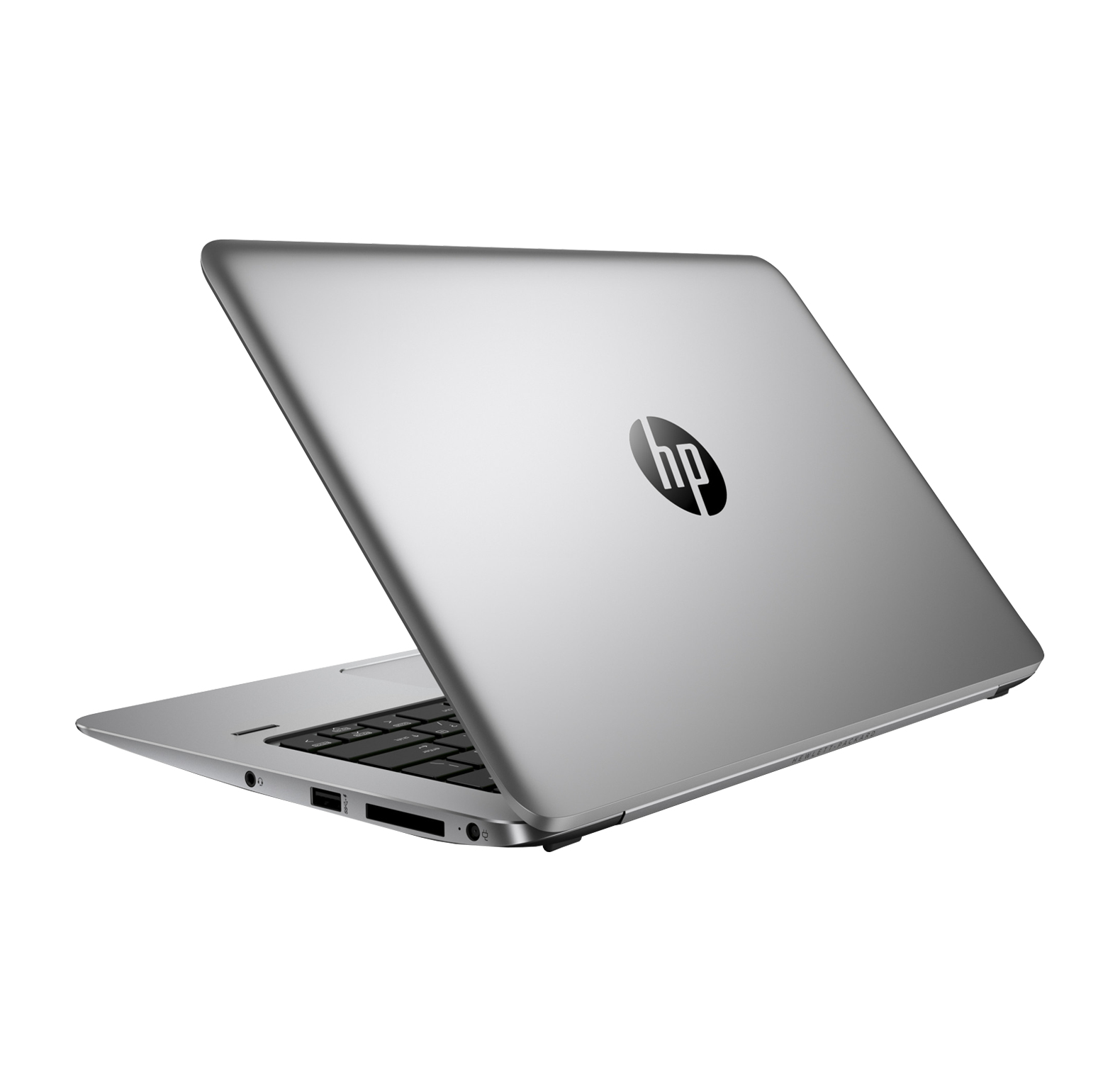

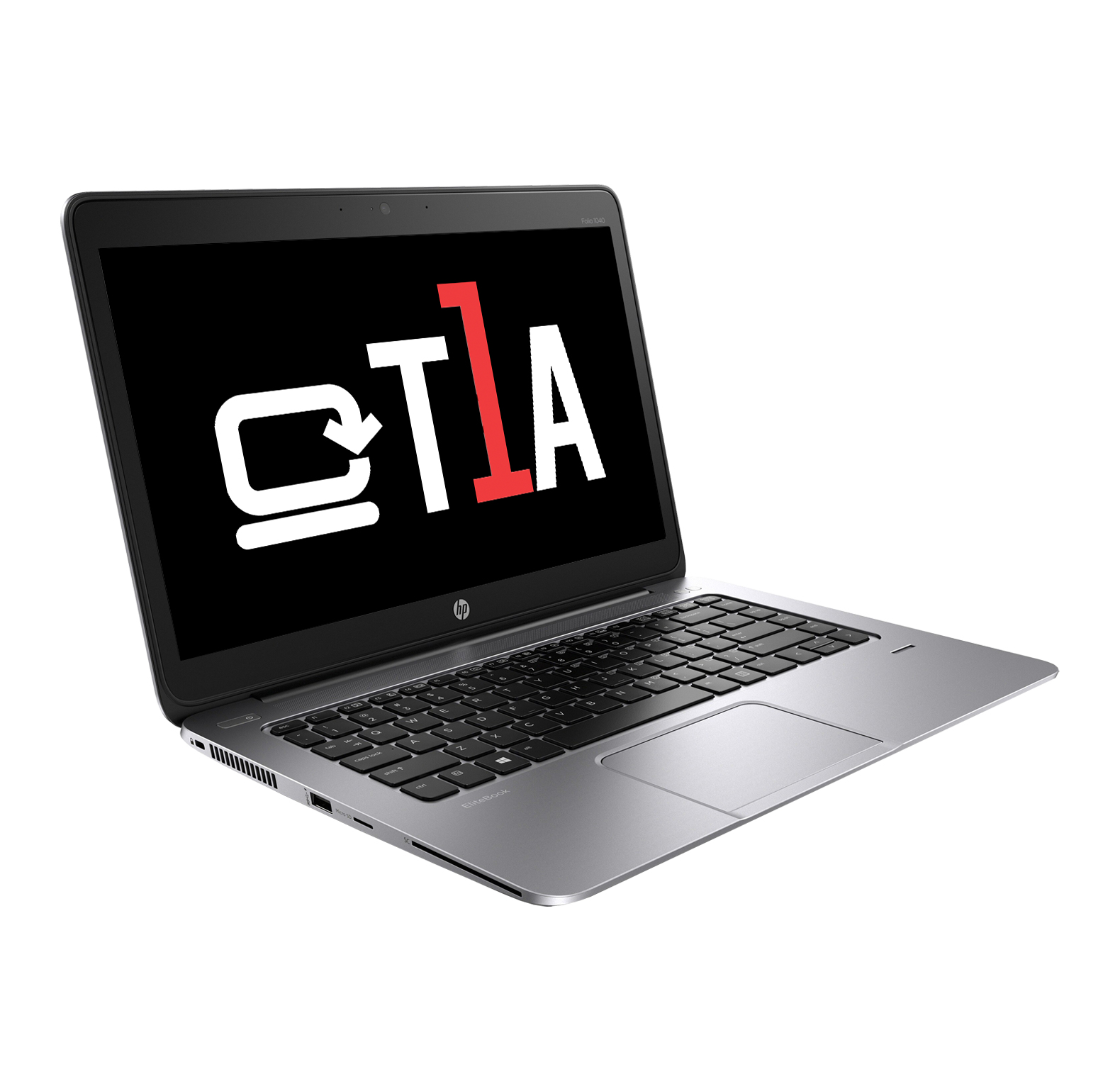

L-EB1020G1-SCA-B001 laptop Intel® Core™ M M-5Y51
31.8 cm (12.5") Quad HD 8 GB DDR3L-SDRAM 128 GB SSD Wi-Fi 4 (802.11n) Windows 10 Home Black, Silver
Model L-EB1020G1-SCA-B001EAN 5711603046559
122 specifications Checked today
- Display31.8 cm (12.5")
- Resolution2560 x 1440 pixels
- ProcessorIntel® Core™ M
- Memory8 GB
- Storage128 GB
- GraphicsNot available
Overview
- Display
- 31.8 cm (12.5")
- Resolution
- 2560 x 1440 pixels
- Processor
- Intel® Core™ M
- Memory
- 8 GB
- Storage
- 128 GB
- Graphics
- Not available
- Brand
- T1A
- Category
- Laptop
- Model
- L-EB1020G1-SCA-B001
- Part number
- L-EB1020G1-SCA-B001
- EAN / UPC
- 5711603046559
- Also known as
- T1A L-EB1020G1-SCA-B001 laptop Intel® Core™ M M-5Y51 31.8 cm (12.5") Quad HD 8 GB DDR3L-SDRAM 128 GB SSD Wi-Fi 4 (802.11n) Windows 10 Home Black, Silver
Specifications
122 specifications in 15 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black, Silver |
| Form factor | Clamshell |
| Refurbished | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 31.8 cm (12.5") |
| Display resolution | 2560 x 1440 pixels |
| Touchscreen | No |
| HD type | Quad HD |
| LED backlight | Yes |
| Display diagonal (metric) | 31.75 cm |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ M |
| Processor generation | Intel® Core™ m-5xxx |
| Processor model | M-5Y51 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 2.6 GHz |
| Processor frequency | 1.1 GHz |
| Processor cache | 4 MB |
| Processor cache type | L3 |
| Processor socket | BGA 1234 |
| Processor lithography | 14 nm |
| Processor operating modes | 32-bit, 64-bit |
| Processor series | Intel Core M-5Y Mobile series |
| Processor codename | Broadwell |
| Stepping | F0 |
| Thermal Design Power (TDP) | 4.5 W |
| Configurable TDP-up frequency | 1.3 GHz |
| Configurable TDP-up | 6 W |
| Configurable TDP-down | 3.5 W |
| Configurable TDP-down frequency | 0.6 GHz |
| Scenario Design Power (SDP) | 3.5 W |
| Tjunction | 95 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 2.0 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory clock speed | 1600 MHz |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 5300 |
| Maximum on-board graphics card memory | 16 GB |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 900 MHz |
| On-board graphics card DirectX version | 11.2 |
| On-board graphics card ID | 0x161E |
Audio
| Specification | Value |
|---|---|
| Audio system | DTS Studio Sound |
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| Combo headphone/mic port | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Operating system language | Multilingual |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 14 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 84669 |
| Processor code | SR23L |
| Processor package size | 30 x 16.5 mm |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
Power
| Specification | Value |
|---|---|
| AC adapter power | 45 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.21 kg |
| Width | 310 mm |
| Depth | 210 mm |
| Height | 15.7 mm |
