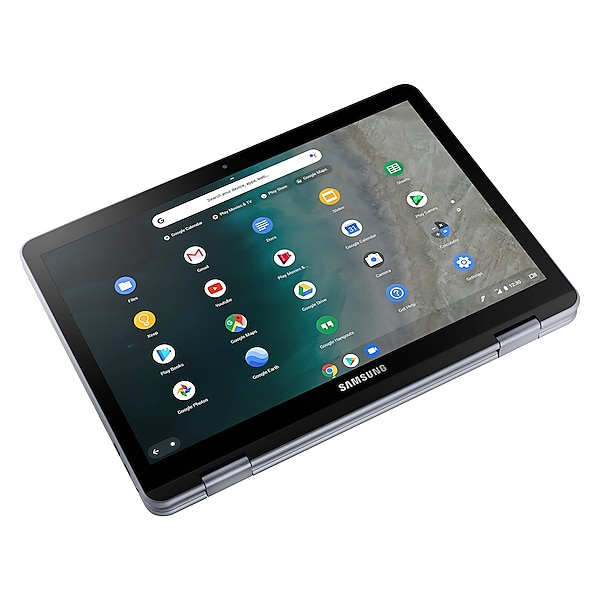

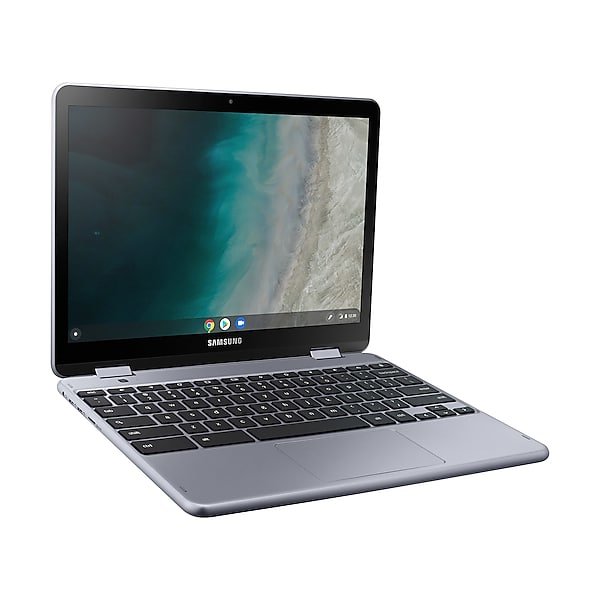

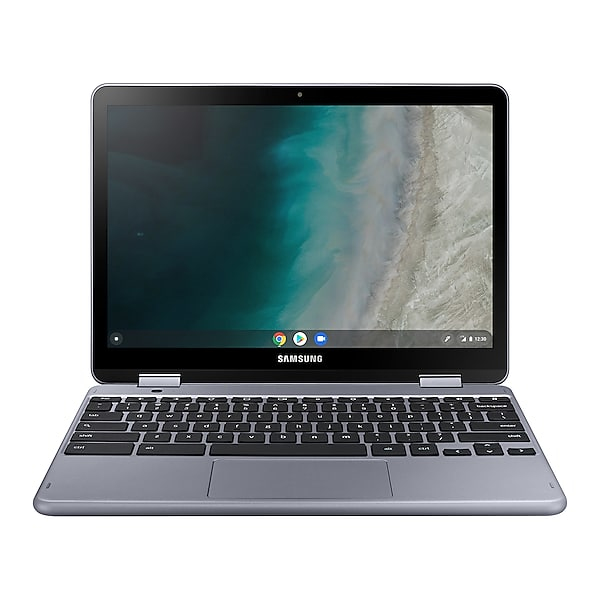

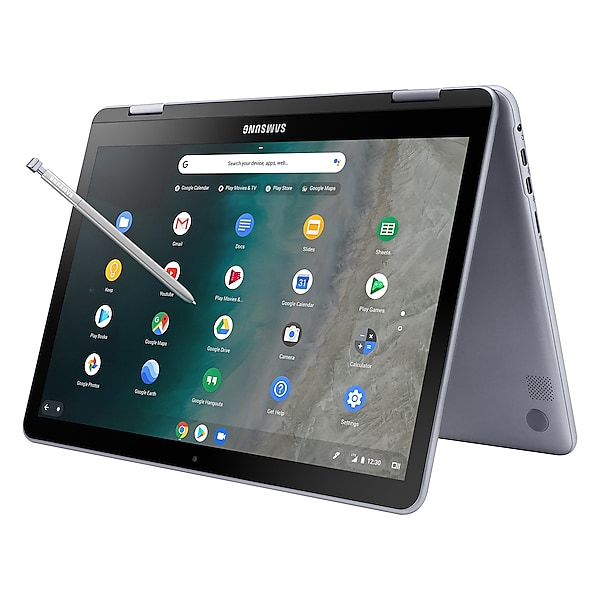

Samsung Chromebook Plus XE521QAB-K02US laptop Intel® Core™ m3 m3-7Y30

31 cm (12.2") Touchscreen Full HD 4 GB 64 GB Wi-Fi 5 (802.11ac) ChromeOS Metallic, Silver

Model XE521QAB-K02USEAN 887276296432

122 specifications Checked 3 days ago

Display31 cm (12.2")
Resolution1920 x 1200 pixels
ProcessorIntel® Core™ m3
Memory4 GB
Storage64 GB
Camera13 MP

See all specifications

Overview

Display: 31 cm (12.2")
Resolution: 1920 x 1200 pixels
Processor: Intel® Core™ m3
Memory: 4 GB
Storage: 64 GB
Camera: 13 MP

Brand: Samsung
Category: Laptop
Model: XE521QAB-K02US
Part number: XE521QAB-K02US
EAN / UPC: 887276296432
Also known as: Samsung Chromebook Plus XE521QAB-K02US laptop Intel® Core™ m3 m3-7Y30 31 cm (12.2") Touchscreen Full HD 4 GB 64 GB Wi-Fi 5 (802.11ac) ChromeOS Metallic, Silver

Specifications

122 specifications in 19 groups

Design

Specification	Value
Product type	Chromebook
Product colour	Metallic, Silver

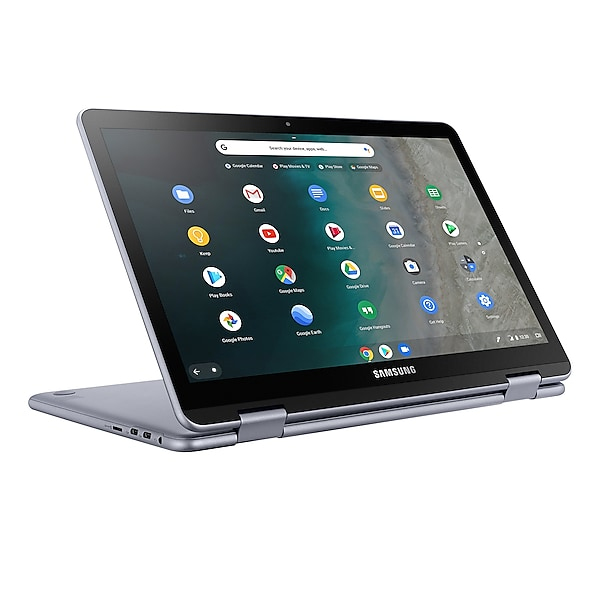

Form factor	Convertible (Fold-back screen)
Housing material	Metal

Display

Specification	Value
Display diagonal	31 cm (12.2")
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
HD type	Full HD
Touch technology	Multi-touch
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ m3
Processor generation	7th gen Intel® Core™ m3
Processor model	m3-7Y30
Processor cores	2
Processor threads	4
Processor boost frequency	2.6 GHz
Processor frequency	1 GHz
System bus rate	4 GT/s
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	BGA 1515
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Kaby Lake
Bus type	OPI
Stepping	H0
Thermal Design Power (TDP)	4.5 W
Configurable TDP-up frequency	1.6 GHz
Configurable TDP-up	7 W
Configurable TDP-down	3.75 W
Configurable TDP-down frequency	0.6 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	10
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Memory form factor	On-board

Storage

Specification	Value
Total storage capacity	64 GB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics 615
Maximum on-board graphics card memory	16 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	900 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	0x591E

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	1.5 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	1 MP
Rear camera	Yes
Rear camera resolution (numeric)	13 MP

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Clickpad

Software

Specification	Value
Operating system installed	ChromeOS

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	95449
Processor code	SR2ZY
Processor package size	20.5 X 16.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery capacity	30 Wh
Battery life (max)	10 h

Power

Specification	Value
AC adapter power	30 W

Security

Specification	Value
Trusted Platform Module (TPM)	Yes

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.33 kg
Width	288 mm
Depth	208 mm
Height	18 mm

Packaging content

Specification	Value

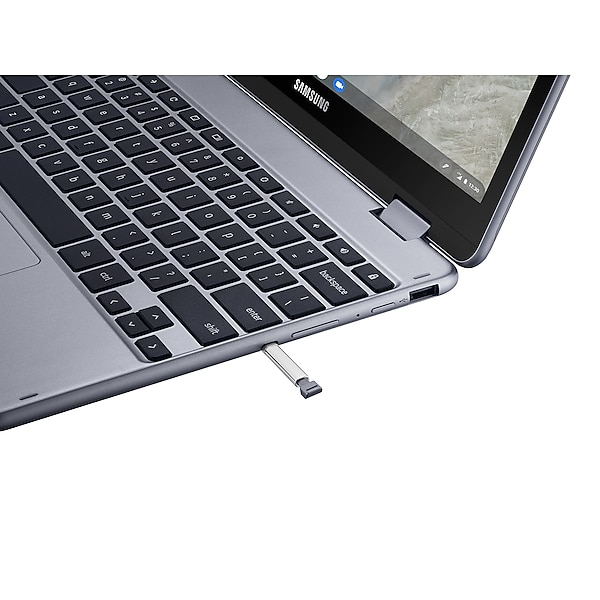

Stylus pen	Yes
