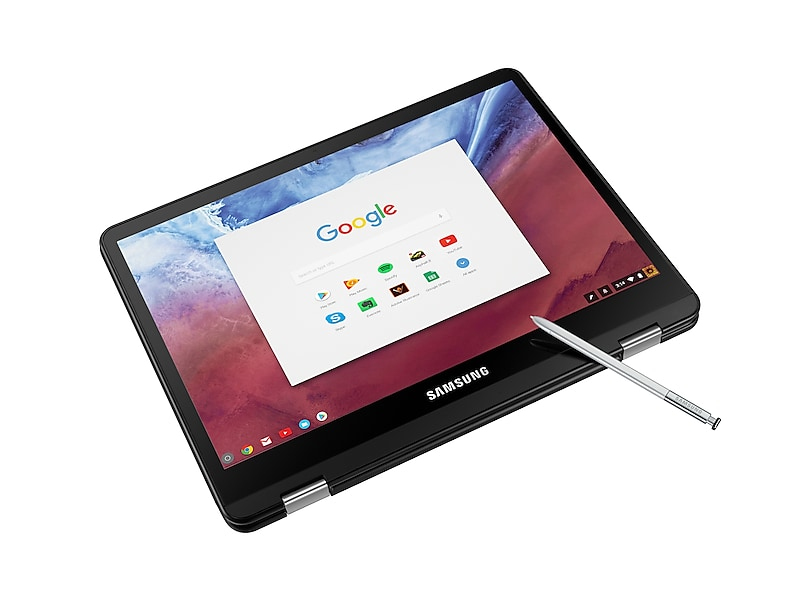

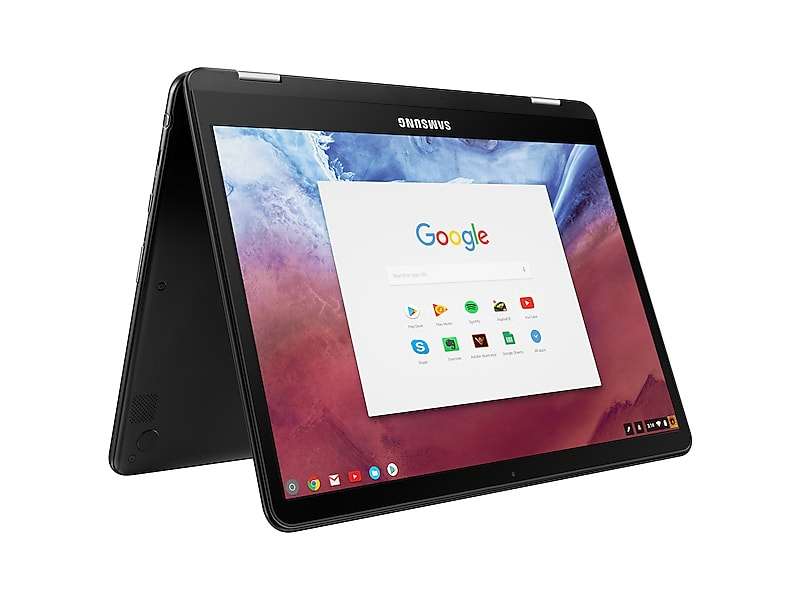

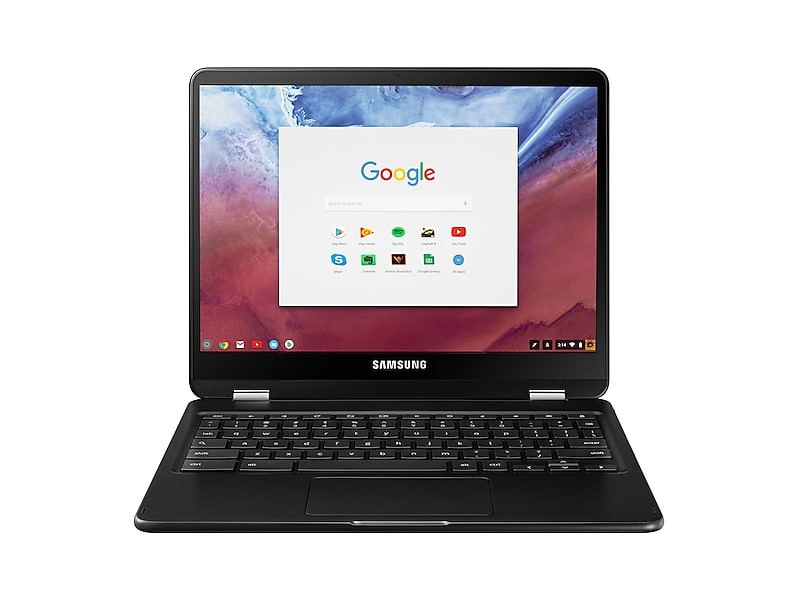

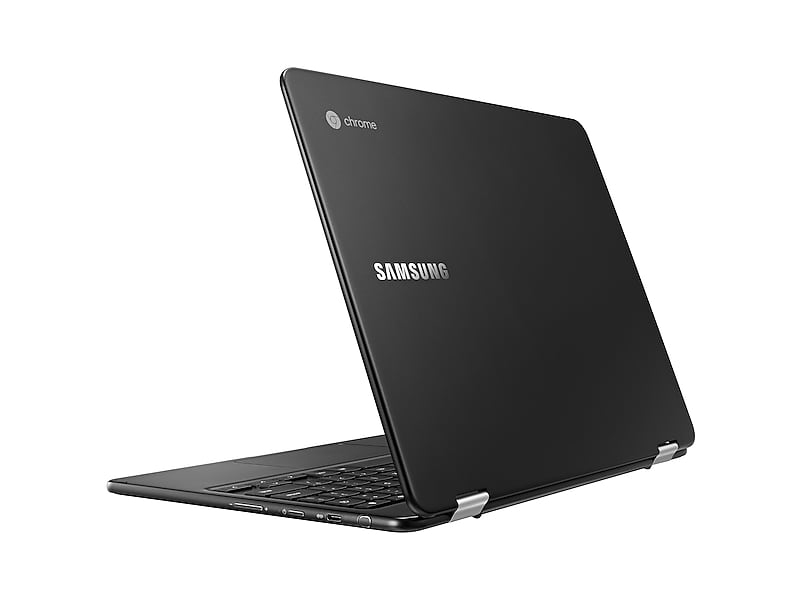

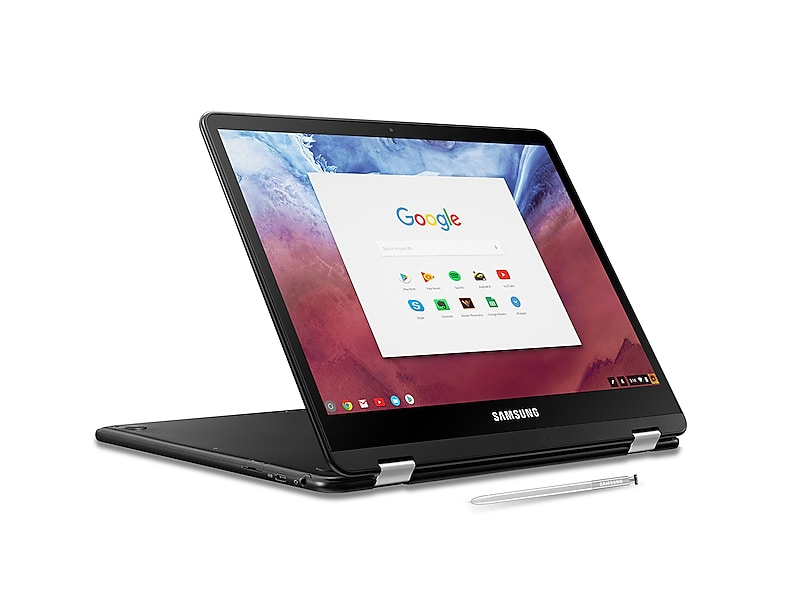

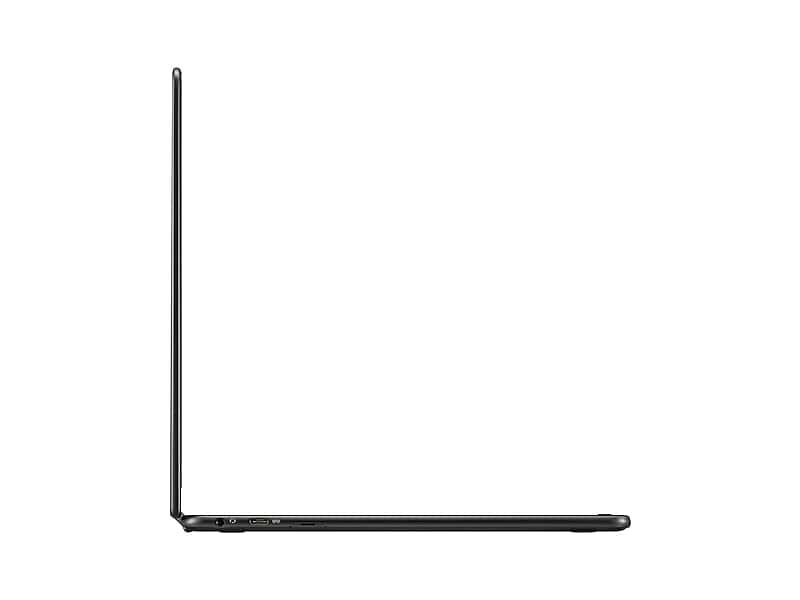

Chromebook XE510C25-K01US laptop Intel® Core™ m3 m3-6Y30
31.2 cm (12.3") Touchscreen Quad HD 4 GB LPDDR3-SDRAM 32 GB eMMC ChromeOS Black, Metallic
Model XE510C25-K01USEAN 887276253374
133 specifications Checked today
- Display31.2 cm (12.3")
- Resolution2400 x 1600 pixels
- ProcessorIntel® Core™ m3
- Memory4 GB
- Storage32 GB
- Battery39 Wh
Overview
- Display
- 31.2 cm (12.3")
- Resolution
- 2400 x 1600 pixels
- Processor
- Intel® Core™ m3
- Memory
- 4 GB
- Storage
- 32 GB
- Battery
- 39 Wh
- Brand
- Samsung
- Category
- Laptop
- Model
- XE510C25-K01US
- Part number
- XE510C25-K01US
- EAN / UPC
- 887276253374
- Also known as
- Samsung Chromebook XE510C25-K01US laptop Intel® Core™ m3 m3-6Y30 31.2 cm (12.3") Touchscreen Quad HD 4 GB LPDDR3-SDRAM 32 GB eMMC ChromeOS Black, Metallic
Specifications
133 specifications in 20 groups
Design
| Specification | Value |
|---|---|
| Product type | Chromebook |
| Product colour | Black, Metallic |
| Form factor | Convertible (Fold-back screen) |
| Housing material | Metal |
Display
| Specification | Value |
|---|---|
| Display diagonal | 31.2 cm (12.3") |
| Display resolution | 2400 x 1600 pixels |
| Touchscreen | Yes |
| HD type | Quad HD |
| Panel type | LCD |
| Native aspect ratio | 3:2 |
| Display glass type | Gorilla Glass |
| Display brightness | 400 cd/m² |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ m3 |
| Processor generation | 6th gen Intel® Core™ m3 |
| Processor model | m3-6Y30 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 2.2 GHz |
| Processor frequency | 0.9 GHz |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1515 |
| Processor lithography | 14 nm |
| Processor operating modes | 32-bit, 64-bit |
| Processor series | Intel Core m3-6Y series |
| Processor codename | Skylake |
| Bus type | OPI |
| Stepping | D1 |
| Thermal Design Power (TDP) | 4.5 W |
| Configurable TDP-up | 7 W |
| Configurable TDP-down | 3.8 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 10 |
| PCI Express configurations | 1x2+2x1, 2x2, 1x4, 4x1 |
| PCI Express slots version | 3.0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | LPDDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 32 GB |
| Storage media | eMMC |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® HD Graphics 515 |
| Maximum on-board graphics card memory | 1.74 GB |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 850 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x191E |
Audio
| Specification | Value |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 1.5 W |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera HD type | HD |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Combo headphone/mic port | Yes |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Clickpad |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
| Full-size keyboard | Yes |
| Keyboard number of keys | 74 |
Software
| Specification | Value |
|---|---|
| Operating system installed | ChromeOS |
| Bundled software | ArtCanvas virus protection |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 14 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | Yes |
| Intel HD Graphics | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 88198 |
| Processor code | SR2EN |
| Processor package size | 20 X 16.5 mm |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 2 |
| Battery capacity | 39 Wh |
| Battery capacity | 5140 mAh |
| Battery life (max) | 9 h |
Power
| Specification | Value |
|---|---|
| AC adapter power | 30 W |
Security
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 907 g |
| Width | 222 mm |
| Depth | 295 mm |
| Height | 14 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Stylus pen | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
Other features
| Specification | Value |
|---|---|
| 3D | Yes |
