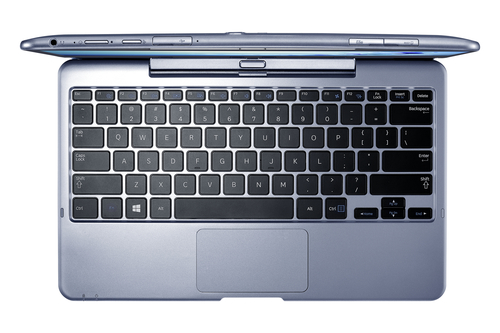

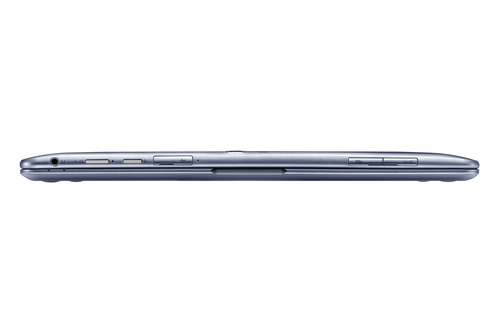

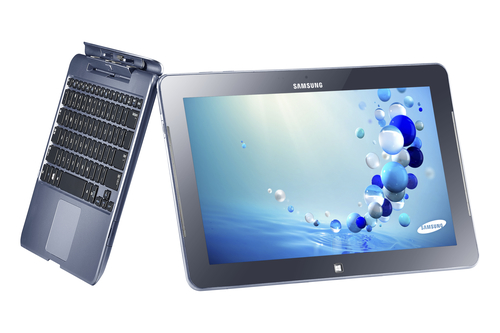

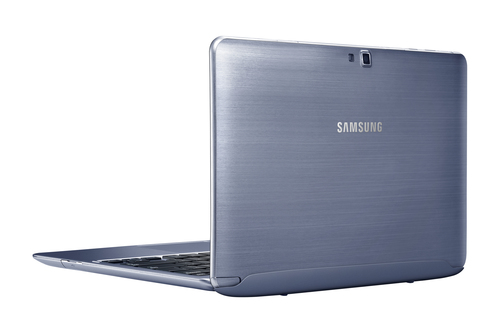

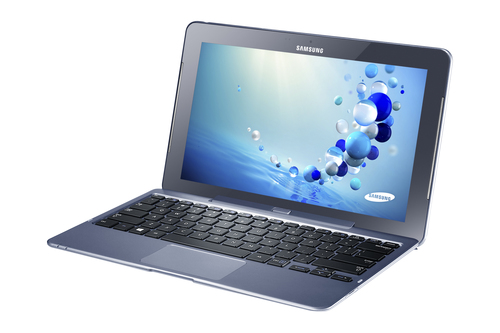

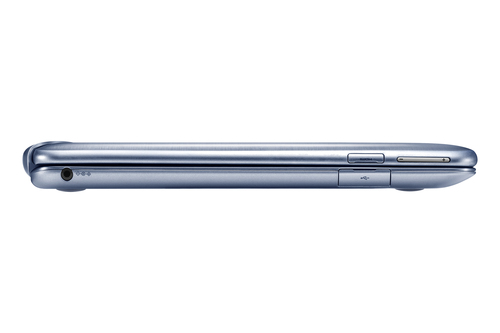

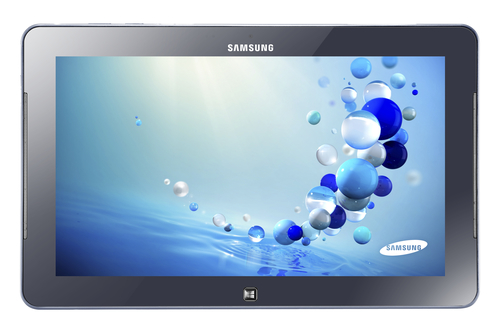

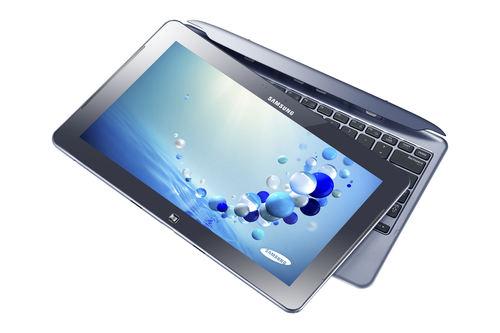

Samsung ATIV XE500T1C-K01PH laptop Intel Atom® Z2760 Hybrid (2-in-1)

29.5 cm (11.6") Touchscreen 2 GB DDR2-SDRAM 64 GB Flash Wi-Fi 4 (802.11n) Windows 8 Blue

Model XE500T1C-K01PH

143 specifications Checked 2 days ago

Display29.5 cm (11.6")
Resolution1366 x 768 pixels
ProcessorIntel Atom®
Memory2 GB
Storage64 GB
Camera8 MP

See all specifications

Overview

Display: 29.5 cm (11.6")
Resolution: 1366 x 768 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 64 GB
Camera: 8 MP

Brand: Samsung
Category: Laptop
Model: XE500T1C-K01PH
Part number: XE500T1C-K01PH
Also known as: Samsung ATIV XE500T1C-K01PH laptop Intel Atom® Z2760 Hybrid (2-in-1) 29.5 cm (11.6") Touchscreen 2 GB DDR2-SDRAM 64 GB Flash Wi-Fi 4 (802.11n) Windows 8 Blue

Specifications

143 specifications in 20 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Blue
Form factor	Convertible (Detachable)

Display

Specification	Value
Display diagonal	29.5 cm (11.6")
Display resolution	1366 x 768 pixels
Touchscreen	Yes
HD type	Not supported
Touch technology	Multi-touch
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z2760
Processor cores	2
Processor threads	4
Processor frequency	1.8 GHz
Processor cache	1 MB
Processor cache type	L2
Processor socket	FC-MB4760
Processor lithography	32 nm
Processor operating modes	32-bit
Processor series	Intel Atom Z2700 Series
Processor codename	Cloverview
FSB Parity	No
Stepping	C0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	800 MHz
Memory form factor	On-board

Storage

Specification	Value
Total storage capacity	64 GB
Storage media	Flash
Flash memory	64 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card base frequency	533 MHz

Audio

Specification	Value
Audio system	HD
Built-in speaker(s)	Yes
Number of built-in speakers	2
Speaker power	0.64 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP
Rear camera	Yes
Rear camera resolution (numeric)	8 MP

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	3G
3G standards	HSPA+
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Mini HDMI ports quantity	0
Micro HDMI ports quantity	1
Headphone outputs	1
S/PDIF out port	No
Combo headphone/mic port	Yes
Docking connector	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Headphone connectivity	3.5 mm
Modem (RJ-11) ports	0

Performance

Specification	Value
Accelerometer	Yes
GPS (satellite)	No

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 8
Operating system architecture	32-bit
Trial software	Norton Internet Security
Bundled software	S Note S Player S Gallery S Camera Evernote Microsoft Office-Testversion Einstellungen Support Center Software-Update

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	No
Intel 64	No
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Smart Connect Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Rapid Start Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	70105
Processor code	SR0Z4
Processor package size	14 x 14 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	Yes

Battery

Specification	Value
Number of battery cells	2
Battery capacity	30 Wh

Power

Specification	Value
AC adapter power	40 W
AC adapter frequency	50 - 60 Hz
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No
Trusted Platform Module (TPM)	Yes

Weight & dimensions

Specification	Value
Weight	744 g
Width	304 mm
Depth	189.4 mm
Height	9.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
Keyboard included	Yes
Manual	Yes
Power cord included	Yes
