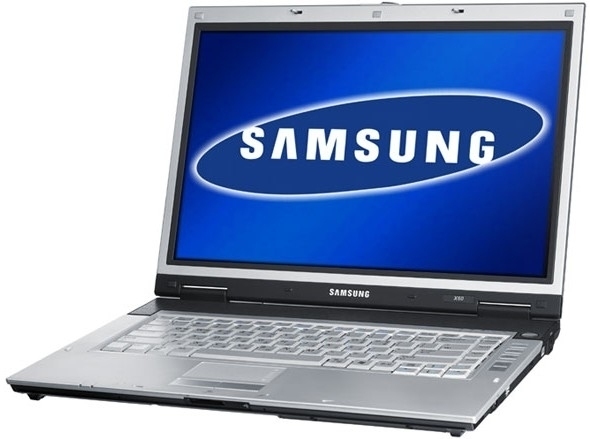

Samsung X60-Pro T7400 Boxxer

Model X60-Pro T7400 BoxxerPart no. NP-X60TZ03

116 specifications Checked 3 days ago

Display39.1 cm (15.4")
Resolution1680 x 1050 pixels
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage160 GB
GraphicsAMD Mobility Radeon X1700

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1680 x 1050 pixels
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 160 GB
Graphics: AMD Mobility Radeon X1700

Brand: Samsung
Category: Laptop
Model: X60-Pro T7400 Boxxer
Part number: NP-X60TZ03
Also known as: Samsung X60-Pro T7400 Boxxer Intel® Core™2 Duo 39.1 cm (15.4") 2 GB DDR2-SDRAM 160 GB AMD Mobility Radeon X1700 Windows XP Professional

Specifications

116 specifications in 17 groups

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T7400
Processor cores	2
Processor threads	2
Processor frequency	2.16 GHz
Processor cache	4 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	Socket 478
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T7000 Series
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	B2
Thermal Design Power (TDP)	34 W
Tjunction	100 °C
Processor core voltage (AC)	1.0375 - 1.30 V
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	13
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 1 GB
Memory slots	2x SO-DIMM

Storage

Specification	Value
Total storage capacity	160 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	MMC, MS PRO, SD, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Mobility Radeon X1700
Maximum graphics card memory	0.256 GB

Audio

Specification	Value
Audio system	HDA

Camera

Specification	Value
Front camera	No

Optical drive

Specification	Value
LightScribe	Yes

Network

Specification	Value
Networking features	Gigabit Ethernet, WLAN
Wireless technology	IEEE 802.11b/g, Bluetooth 2.0+EDR
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard number of keys	88
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows XP Professional
Bundled software	AVS now Norton AntiVirus 2005 (trial) Adobe Reader 6.0 Samsung Network Manager Battery Manager Easy Box Firstware Pro

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	27256
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Power

Specification	Value
AC adapter power	90 W
AC adapter input voltage	100/240 V
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	2.48 kg
Width	361 mm
Depth	265 mm
Height	23.9 mm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Security features	BIOS Password
Infrared data port	No
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	Data/Fax V.92
