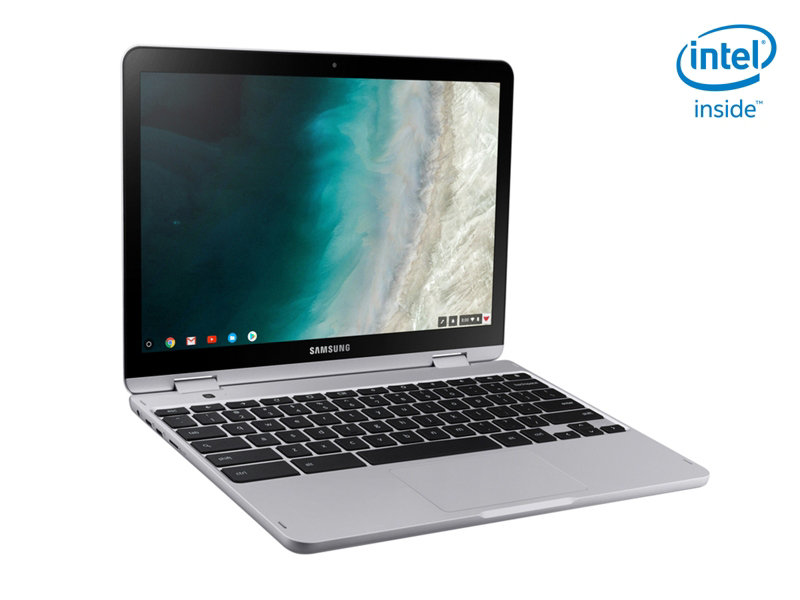

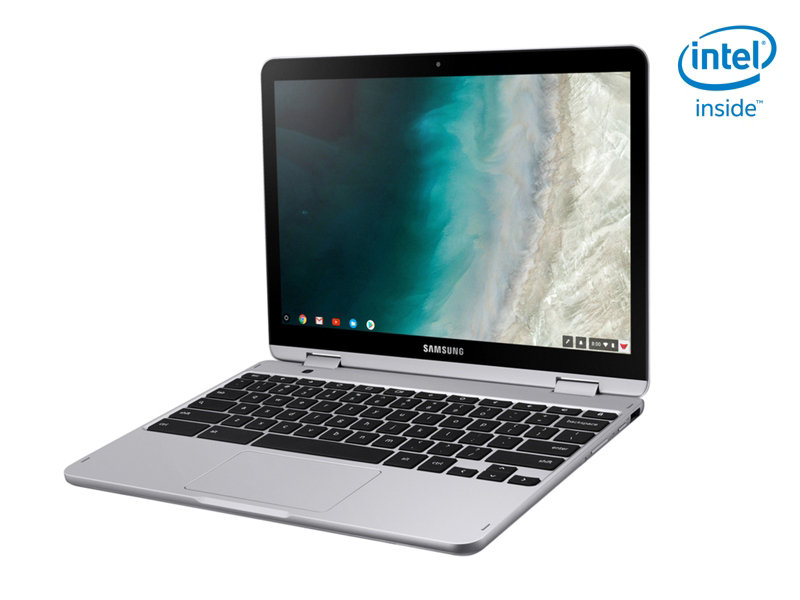

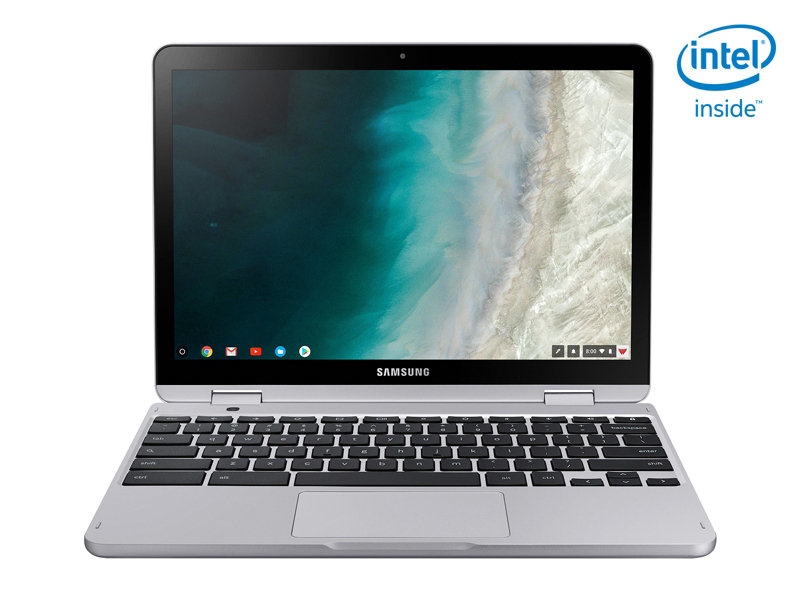

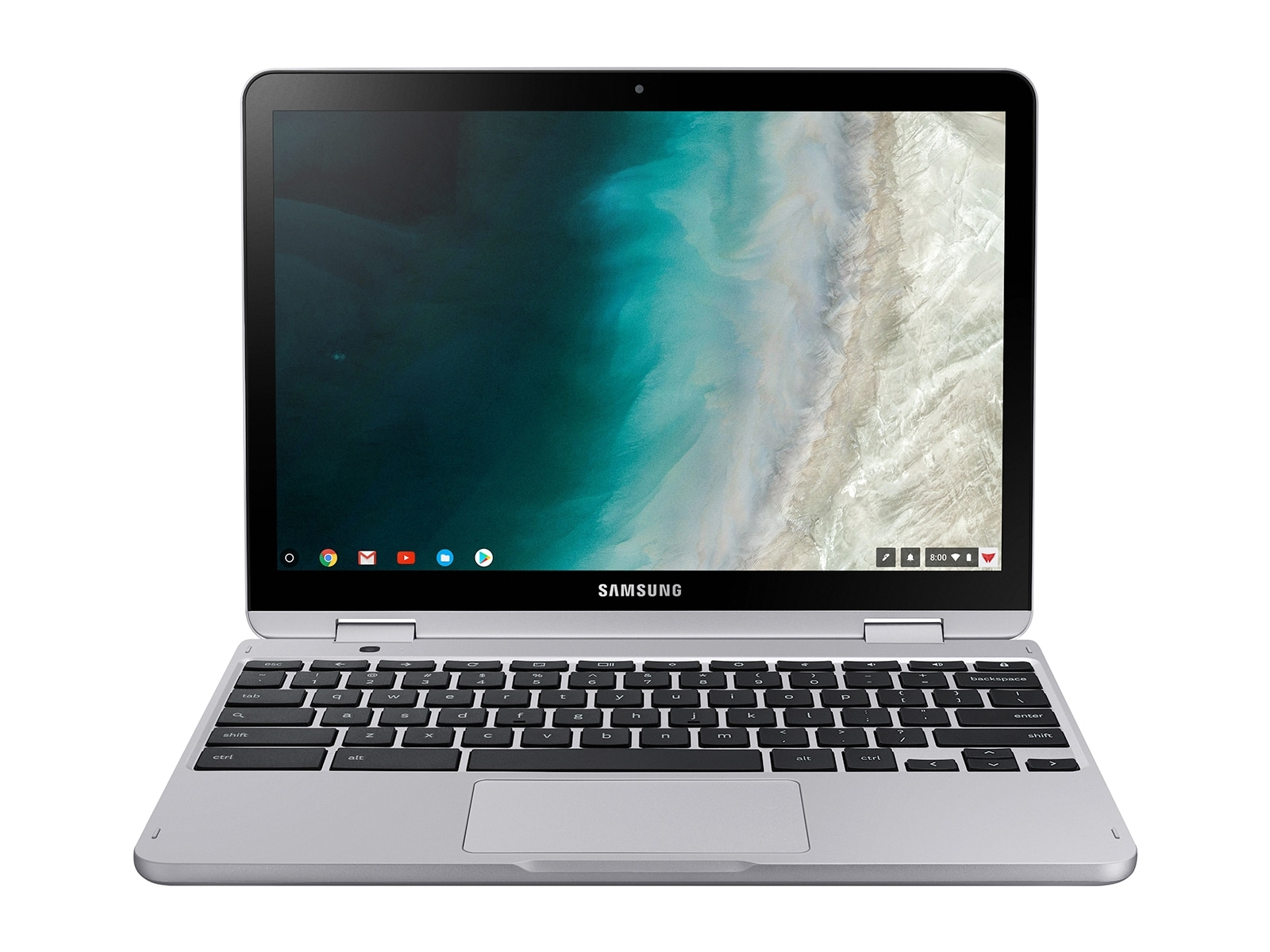

Chromebook Plus V2 Intel® Celeron® 3965Y
31 cm (12.2") Touchscreen 4 GB LPDDR3-SDRAM 32 GB eMMC Wi-Fi 5 (802.11ac) ChromeOS Titanium
Model V2Part no. XE520QAB-K01USEAN 887276290478
115 specifications Checked today
- Display31 cm (12.2")
- Resolution1920 x 1200 pixels
- ProcessorIntel® Celeron®
- Memory4 GB
- Storage32 GB
- GraphicsNot available
Overview
- Display
- 31 cm (12.2")
- Resolution
- 1920 x 1200 pixels
- Processor
- Intel® Celeron®
- Memory
- 4 GB
- Storage
- 32 GB
- Graphics
- Not available
- Brand
- Samsung
- Category
- Laptop
- Model
- V2
- Part numbers
- XE520QAB-K01US, XE520QAB-K02US, XE520QAB-K03US
- EAN / UPC
- 887276290478
- Also known as
- Samsung Chromebook Plus V2 Intel® Celeron® 3965Y 31 cm (12.2") Touchscreen 4 GB LPDDR3-SDRAM 32 GB eMMC Wi-Fi 5 (802.11ac) ChromeOS Titanium
Specifications
115 specifications in 17 groups
Design
| Specification | Value |
|---|---|
| Product type | Chromebook |
| Product colour | Titanium |

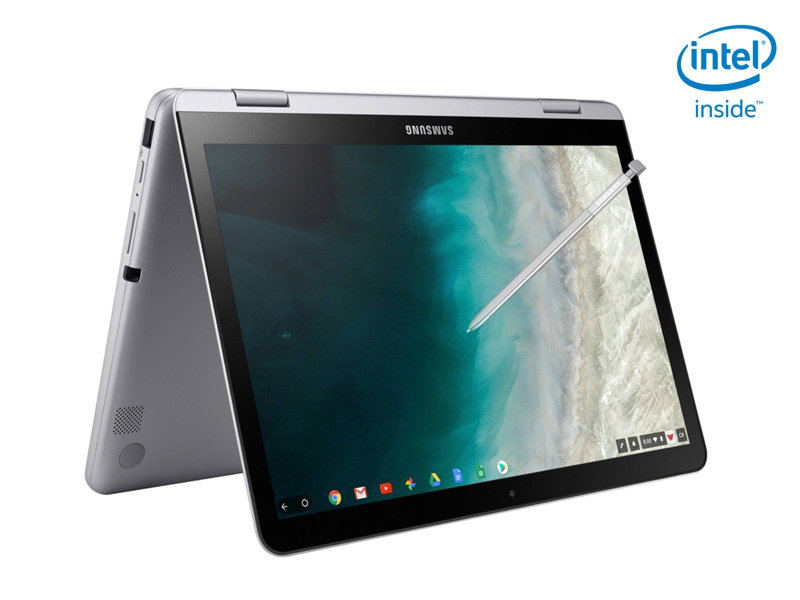

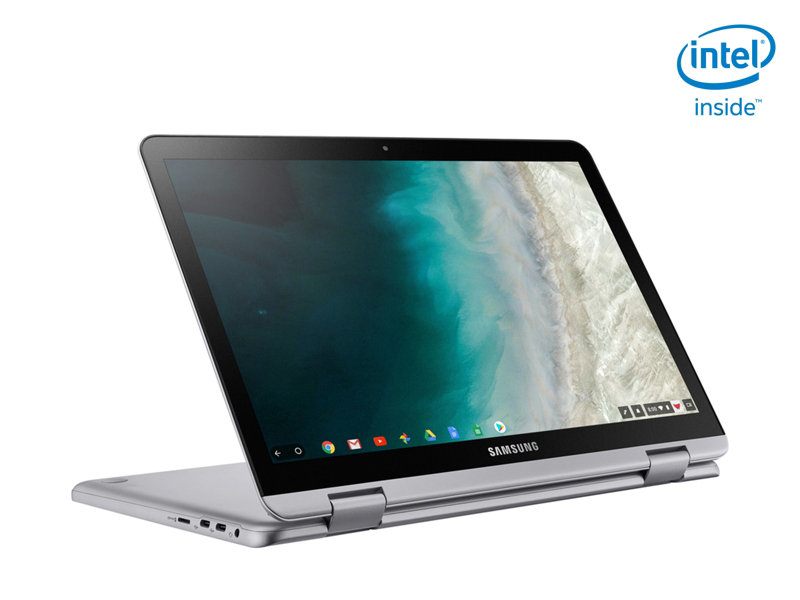

| Form factor | Convertible (Fold-back screen) |
Display
| Specification | Value |
|---|---|
| Display diagonal | 31 cm (12.2") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | 3965Y |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.5 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 2 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1515 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Celeron Processor 3000 series for Mobile |
| Processor codename | Kaby Lake |
| Bus type | OPI |
| Thermal Design Power (TDP) | 6 W |
| Configurable TDP-down | 4.5 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 10 |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
| PCI Express slots version | 3.0 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | LPDDR3-SDRAM |
| Memory form factor | On-board |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 32 GB |
| Storage media | eMMC |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 615 |
| Maximum on-board graphics card memory | 16 GB |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 850 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x591E |
Audio
| Specification | Value |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 1.5 W |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera resolution (numeric) | 1 MP |
| Rear camera | Yes |
| Rear camera resolution (numeric) | 13 MP |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |

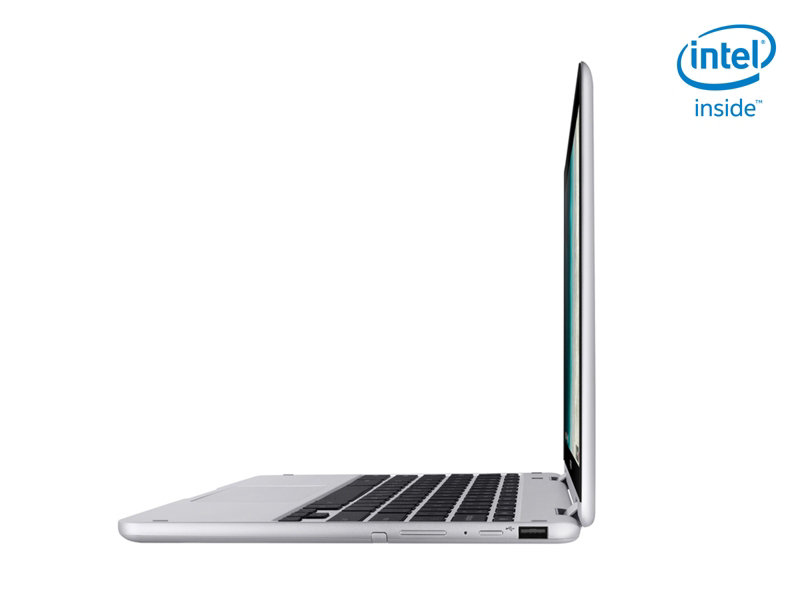

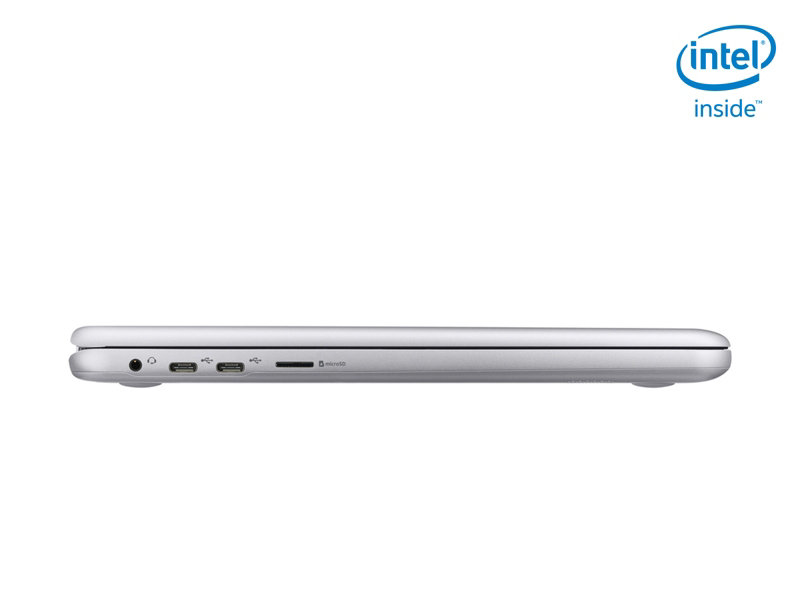

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Combo headphone/mic port | Yes |

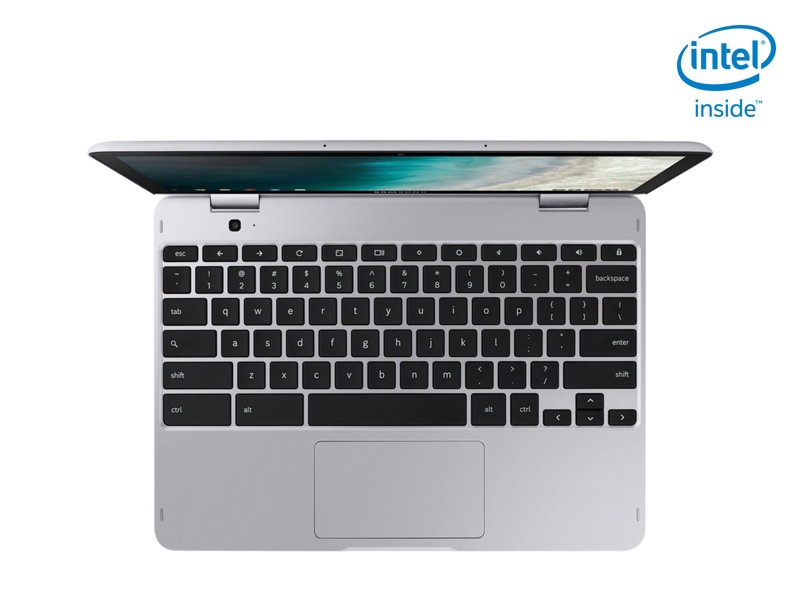

Keyboard
| Specification | Value |
|---|---|
| Pointing device | Clickpad |
| Numeric keypad | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | ChromeOS |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 122698 |
| Processor package size | 20 X 16.5 mm |
| Supported instruction sets | SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 39 Wh |
Security
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.35 kg |
| Width | 288.3 mm |
| Depth | 208.3 mm |
| Height (front) | 1.7 cm |
| Height (rear) | 1.78 cm |
