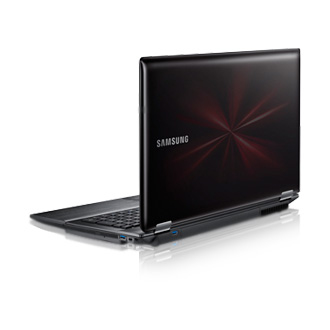

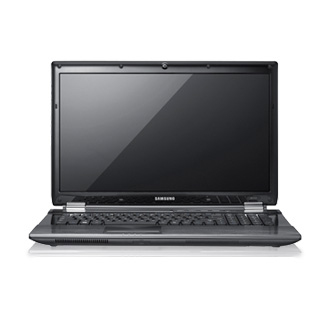

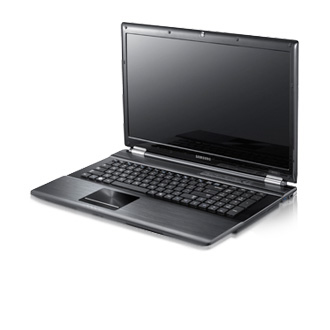

Samsung RF RF712-S02FR Intel® Core™ i7 i7-2630QM

43.9 cm (17.3") Full HD 8 GB DDR3-SDRAM 1 TB AMD Radeon HD 6650M Windows 7 Home Premium Black

Model RF712-S02FRPart no. NP-RF712-S02FREAN 8806071588674

162 specifications Checked 3 days ago

Display43.9 cm (17.3")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage1 TB
GraphicsAMD Radeon HD 6650M

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 1 TB
Graphics: AMD Radeon HD 6650M

Brand: Samsung
Category: Laptop
Model: RF712-S02FR
Part number: NP-RF712-S02FR
EAN / UPC: 8806071588674
Also known as: Samsung RF RF712-S02FR Intel® Core™ i7 i7-2630QM 43.9 cm (17.3") Full HD 8 GB DDR3-SDRAM 1 TB AMD Radeon HD 6650M Windows 7 Home Premium Black

Specifications

162 specifications in 19 groups

Design

Specification	Value
Product colour	Black

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	400 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	2nd gen Intel® Core™ i7
Processor model	i7-2630QM
Processor cores	4
Processor threads	8
Processor boost frequency	2.9 GHz
Processor frequency	2 GHz
System bus rate	5 GT/s
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	Socket 988
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-2600 Mobile Series
Processor codename	Sandy Bridge
Bus type	DMI
FSB Parity	No
Stepping	D2
Thermal Design Power (TDP)	45 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	20
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1333 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	1 TB
Number of HDDs installed	2
HDD capacity	500 GB
HDD interface	SATA
HDD speed	7200 RPM
Optical drive type	Blu-Ray DVD Combo
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	AMD Radeon HD 6650M
Graphics card family	AMD
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 3000
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x116

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Speaker power	1.5 W
Built-in subwoofer	No
Audio system direct 3D sound	Yes

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	3.0+HS
WWAN	Not installed
Data network	Not supported
Cabling technology	10/100/1000Base-T(X)
4G WiMAX	No
Integrated 4G WiMAX	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard number of keys	104

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Drivers included	Yes
Trial software	Norton Internet Security, Norton Online Backup
Bundled software	Samsung Support Center, Samsung Recovery Solution, Samsung Update Plus, Microsoft Office Starter 2010, Movie Color Enhancer, Easy Display Manager, Fast Browsing, Game Console, Windows Live Suite, Easy Content Share, Skype, Cyberlink YouCam, Cyberlink BluRay Suite, Samsung Fast Start, Easy Battery Ma

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	52219
Processor code	SR02Y
Processor package size	37.5 x 37.5 (rPGA998)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
AC adapter power	90 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	No
Password protection type	BIOS, HDD

Weight & dimensions

Specification	Value
Weight	2.9 kg
Width	415.8 mm
Depth	276.1 mm
Height (front)	3.23 cm
Height (rear)	3.79 cm

Packaging content

Specification	Value
AC adapter included	Yes
Remote control included	No

Other features

Specification	Value
Infrared data port	No
3D	Yes
Intel Turbo Memory	0 GB
Internal modem	No
TV tuner integrated	No
Supplied AC adapter type	AC
