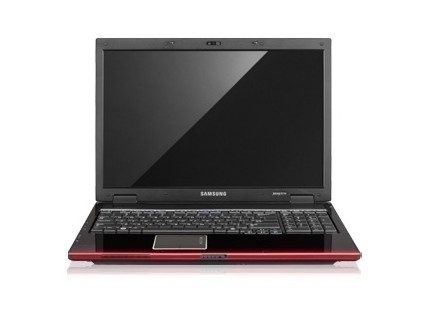

Samsung R710 XE2V 3201

Model R710 XE2V 3201Part no. NP-R710-FS04FREAN 8808993232390

106 specifications Checked 3 days ago

Display43.2 cm (17")
Resolution1440 x 900 pixels
ProcessorIntel® Pentium®
Memory4 GB
Storage250 GB
GraphicsNVIDIA® GeForce® 9300M GS

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1440 x 900 pixels
Processor: Intel® Pentium®
Memory: 4 GB
Storage: 250 GB
Graphics: NVIDIA® GeForce® 9300M GS

Brand: Samsung
Category: Laptop
Model: R710 XE2V 3201
Part number: NP-R710-FS04FR
EAN / UPC: 8808993232390
Also known as: Samsung R710 XE2V 3201 Intel® Pentium® T3200 43.2 cm (17") 4 GB DDR3-SDRAM 250 GB NVIDIA® GeForce® 9300M GS Windows Vista Home Premium Black, Red

Specifications

106 specifications in 21 groups

Design

Specification	Value
Product colour	Black, Red

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1440 x 900 pixels
Native aspect ratio	16:10
Display surface	Gloss

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	T3200
Processor cores	2
Processor threads	2
Processor frequency	2 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	LGA 3647 (Socket P)
Processor lithography	65 nm
Processor operating modes	64-bit
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	M0
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	12

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1066 MHz
Memory layout (slots x size)	2 x 2 GB
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	250 GB
Number of HDDs installed	1
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® 9300M GS
Discrete graphics card memory	0.25 GB
On-board graphics card model	Not available
Maximum graphics card memory	1.021 GB

Audio

Specification	Value
Audio system	High Definition Audio
Number of built-in speakers	2
Speaker power	2 W

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Networking features	Gigabit Ethernet, WLAN
Wireless technology	802.11 b/g
Bluetooth	No
Integrated wireless LAN, type of network I/F chip	Atheros 802.11b/g

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® GM45 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard number of keys	101

Software

Specification	Value
Operating system installed	Windows Vista Home Premium
Drivers included	Yes
Trial software	Genuine Microsoft Office Professional 2007
Bundled software	Samsung Recovery Solution III, McAfee Virus Scan, Operating System Recovery DVD, System S/W Media (Including Cyberlink DVD Suite), Samsung Magic Doctor / Samsung Update Plus / Easy Display Manger / Easy Battery Manager/ Easy Network Manager / Easy SpeedUp Manager Adobe Acrobat Reader

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Processor ARK ID	37160
Processor code	SLAVG

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
AC adapter power	90 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	3.18 kg
Width	395 mm
Depth	279 mm
Height (front)	2.97 cm
Height (rear)	3.98 cm

Hard drive

Specification	Value
Storage drive controller	Serial ATA-150

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Internal modem	No
Supplied AC adapter type	AC
