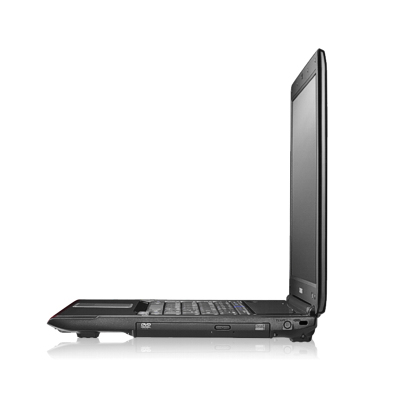

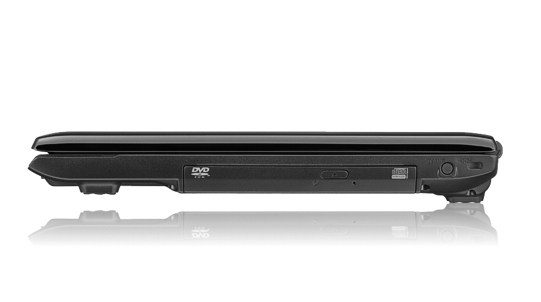

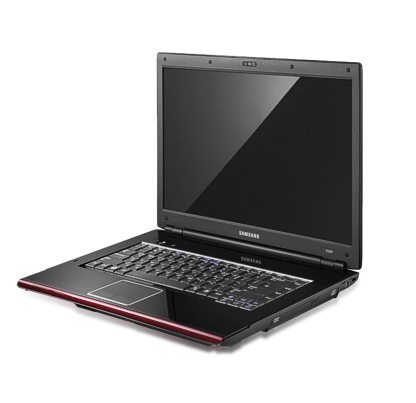

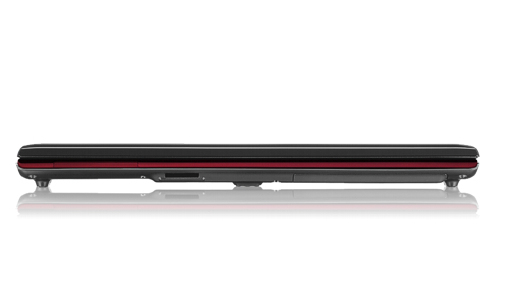

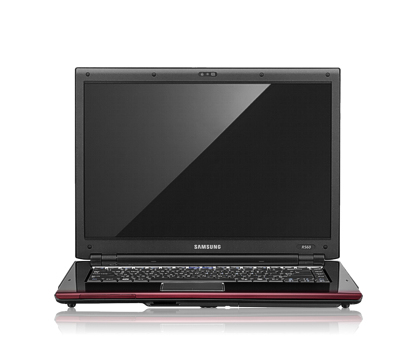

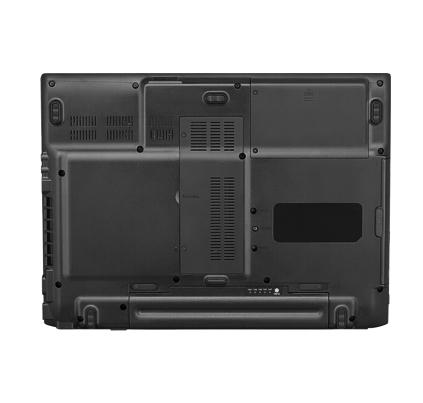

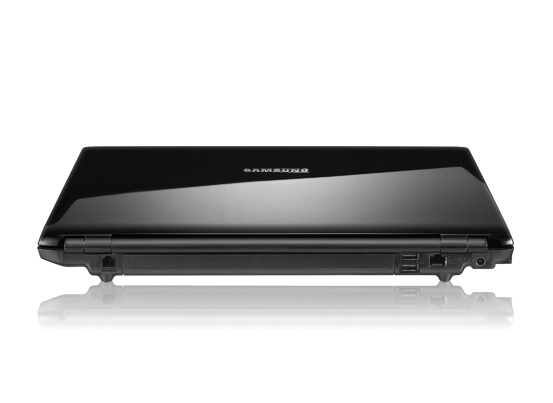

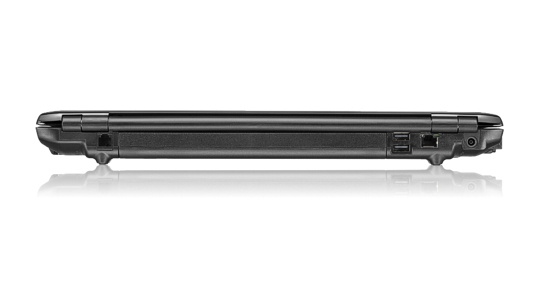

Samsung R560-Aura P8600 Digano

Model R560-Aura P8600 DiganoPart no. NP-R560-AS0EDEEAN 8808993231164

131 specifications Checked 3 days ago

Display39.1 cm (15.4")
ProcessorIntel® Core™2 Duo
Memory4 GB
Storage500 GB
GraphicsNVIDIA® GeForce® 9600M GT
OSWindows Vista Home Premium

See all specifications

Overview

Display: 39.1 cm (15.4")
Processor: Intel® Core™2 Duo
Memory: 4 GB
Storage: 500 GB
Graphics: NVIDIA® GeForce® 9600M GT
OS: Windows Vista Home Premium

Brand: Samsung
Category: Laptop
Model: R560-Aura P8600 Digano
Part number: NP-R560-AS0EDE
EAN / UPC: 8808993231164
Also known as: Samsung R R560-Aura P8600 Digano Intel® Core™2 Duo 39.1 cm (15.4") 4 GB DDR3-SDRAM 500 GB NVIDIA® GeForce® 9600M GT Windows Vista Home Premium Black, Red

Specifications

131 specifications in 21 groups

Design

Specification	Value
Product colour	Black, Red

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display surface	Matt
Display brightness	220 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	P8600
Processor cores	2
Processor threads	2
Processor frequency	2.4 GHz
Processor cache	3 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Processor socket	Socket 479
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo P8000 Series
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	R1
Thermal Design Power (TDP)	25 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	9
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 2 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	500 GB
HDD interface	SATA
HDD speed	5400 RPM
Card reader integrated	Yes
Compatible memory cards	MMC, SDHC, XD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® 9600M GT
Discrete graphics card memory	0.512 GB
Maximum graphics card memory	0.768 GB
Maximum resolution	2048 x 1536 pixels

Audio

Specification	Value
Audio chip	Realtek ALC262-VC2-GR
Audio system	High Definition Audio
Number of built-in speakers	2
Speaker power	2 W

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Optical drive

Specification	Value
CD read speed	24x
CD write speed	24x
CD rewrite speed	24x
Optical drive removable	No

Network

Specification	Value
Networking features	Gigabit Ethernet, Wireless LAN
Networking type	Gigabit Ethernet, Fast Ethernet, Ethernet
Wireless technology	802.11a/b/g/n
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® PM45 Express

Keyboard

Specification	Value
Pointing device	Touchpad + Scroll zone

Software

Specification	Value
Operating system installed	Windows Vista Home Premium
Drivers included	Yes
Trial software	Microsoft Office 2007
Bundled software	Cyberlink DVD Solution, Play AVStation Easy Battery Manager, Easy Display Manager, Easy Network Manager, Easy SpeedUp Manager, Samsung Update Plus, Adobe Acrobat Reader

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	35568
Processor code	SLGDZ
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery life (max)	3 h
Battery recharge time	2 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	2.7 kg
Width	358 mm
Depth	264 mm
Height (front)	2.86 cm
Height (rear)	3.65 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Power requirements	100 - 240 V
Internal modem	No
Supplied AC adapter type	AC
