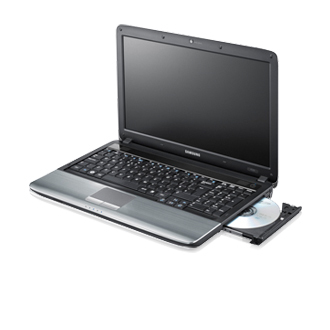

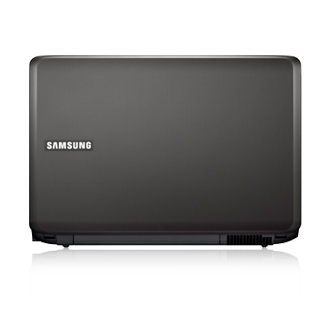

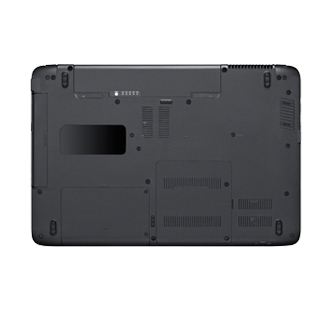

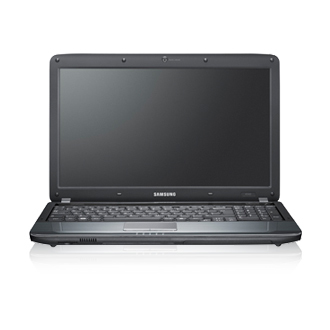

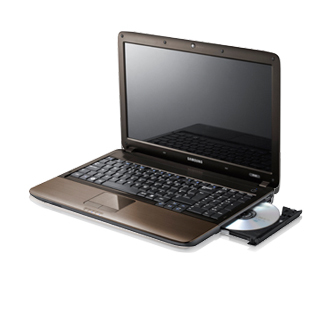

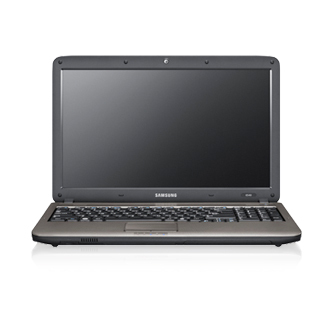

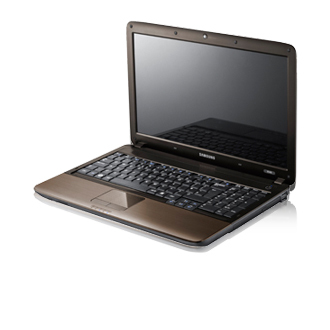

Samsung R R540-JA03BE Intel® Core™ i3 i3-370M

39.6 cm (15.6") 4 GB DDR3-SDRAM 320 GB HDD Windows 7 Home Premium Black AZERTY

Model R540-JA03BEPart no. NP-R540-JA03BEEAN 8806071116945

152 specifications Checked 2 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i3
Memory4 GB
Storage320 GB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i3
Memory: 4 GB
Storage: 320 GB
Graphics: Not available

Brand: Samsung
Category: Laptop
Model: R540-JA03BE
Part number: NP-R540-JA03BE
EAN / UPC: 8806071116945
Also known as: Samsung R R540-JA03BE Intel® Core™ i3 i3-370M 39.6 cm (15.6") 4 GB DDR3-SDRAM 320 GB HDD Windows 7 Home Premium Black AZERTY

Specifications

152 specifications in 19 groups

Design

Specification	Value
Product colour	Black

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Gloss

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	Intel® Core™ i3
Processor model	i3-370M
Processor cores	2
Processor threads	4
Processor frequency	2.4 GHz
System bus rate	2.5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	Socket 988
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-300 Mobile Series
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	K0
Thermal Design Power (TDP)	35 W
Tjunction	90 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	18
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 2 GB
Memory slots	2x SO-DIMM

Storage

Specification	Value
Total storage capacity	320 GB
Storage media	HDD
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	667 MHz

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Speaker power	1.5 W

Network

Specification	Value
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Micro HDMI ports quantity	0
Mini VGA ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
S-Video port	No
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® HM55 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Keyboard layout	AZERTY

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Bundled software	Samsung Update Plus, Easy Display Manager, Easy Battery Manager, Easy Network Manager, Easy SpeedUp Manager, Adobe Acrobat Reader, Samsung Support Center

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	49020
Processor code	SLBUK
Processor package size	rPGA 37.5x 37.5, BGA 34x28
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
AC adapter power	60 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	No
Password protection type	BIOS
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	2.4 kg
Width	379.6 mm
Depth	255.5 mm
Height (front)	3.24 cm
Height (rear)	3.83 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Internal modem	No
TV tuner integrated	No
Supplied AC adapter type	AC
