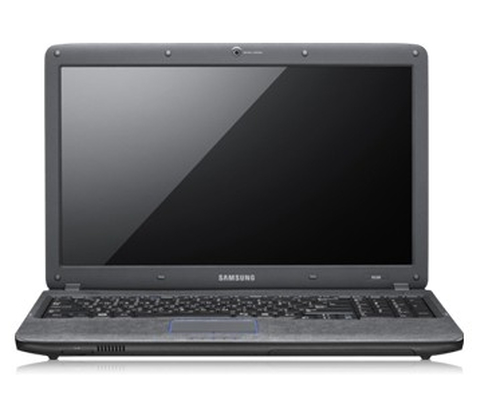

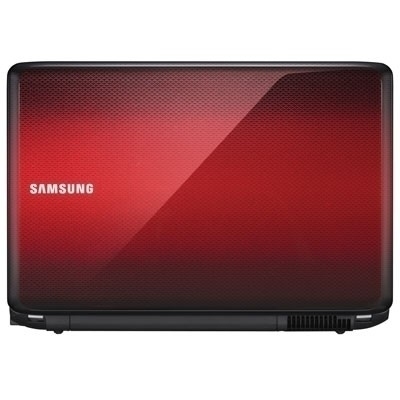

Samsung R R530-JS04ES Intel® Core™2 Duo T6600

39.6 cm (15.6") 4 GB DDR3-SDRAM 320 GB NVIDIA® GeForce® 310M Windows 7 Home Premium

Model R530-JS04ESPart no. NP-R530-JS04ESEAN 8808993750627

122 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™2 Duo
Memory4 GB
Storage320 GB
GraphicsNVIDIA® GeForce® 310M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™2 Duo
Memory: 4 GB
Storage: 320 GB
Graphics: NVIDIA® GeForce® 310M

Brand: Samsung
Category: Laptop
Model: R530-JS04ES
Part number: NP-R530-JS04ES
EAN / UPC: 8808993750627
Also known as: Samsung R R530-JS04ES Intel® Core™2 Duo T6600 39.6 cm (15.6") 4 GB DDR3-SDRAM 320 GB NVIDIA® GeForce® 310M Windows 7 Home Premium

Specifications

122 specifications in 18 groups

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	220 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T6600
Processor cores	2
Processor threads	2
Processor frequency	2.2 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	Socket 478
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T6000 Series
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	R0
Thermal Design Power (TDP)	35 W
Tjunction	90 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	11
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	800 MHz
Memory layout (slots x size)	2 x 2 GB
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	320 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® 310M
Discrete graphics card memory	0.512 GB
On-board graphics card model	Not available

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	1.5 W

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Networking features	WLAN, Fast Ethernet
Wireless technology	802.11 b/g/n
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® HM55 Express

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Drivers included	Yes
Trial software	McAfee Security Center Microsoft Office 2007
Bundled software	Samsung Recovery Solution IV Samsung MagicDoctor Easy Battery Manager Easy Display Manager Easy Network Manager Easy SpeedUp Manager Adobe Acrobat Reader

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	37255
Processor code	SLGF5
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	2.5 kg
Width	379.8 mm
Depth	255.5 mm
Height (front)	2.99 cm
Height (rear)	3.62 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Internal modem	No
Supplied AC adapter type	AC
