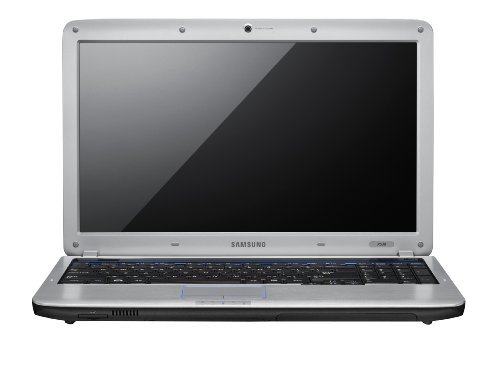

Samsung R R530-JA06 Intel® Celeron® T3300

39.6 cm (15.6") 2 GB DDR3-SDRAM 250 GB Intel® GMA 4500MHD Windows 7 Home Premium Black, Silver

Model R530-JA06Part no. NP-R530-JA06SE

97 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Celeron®
Memory2 GB
Storage250 GB
GraphicsIntel® GMA 4500MHD

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Celeron®
Memory: 2 GB
Storage: 250 GB
Graphics: Intel® GMA 4500MHD

Brand: Samsung
Category: Laptop
Model: R530-JA06
Part number: NP-R530-JA06SE
Also known as: Samsung R R530-JA06 Intel® Celeron® T3300 39.6 cm (15.6") 2 GB DDR3-SDRAM 250 GB Intel® GMA 4500MHD Windows 7 Home Premium Black, Silver

Specifications

97 specifications in 20 groups

Design

Specification	Value
Product colour	Black, Silver

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Gloss

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	T3300
Processor cores	2
Processor frequency	2 GHz
Processor cache	1 MB
Processor cache type	Smart Cache
Processor front side bus	800 MHz
Processor lithography	45 nm
Processor operating modes	64-bit
Processor codename	Penryn
Bus type	FSB
Thermal Design Power (TDP)	35 W
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 2 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	250 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 4500MHD
Graphics card family	Intel

Audio

Specification	Value
Audio system	SRS
Number of built-in speakers	2
Speaker power	1.5 W

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Optical drive

Specification	Value
Optical drive interface	SATA

Network

Specification	Value
Wi-Fi	Yes
Networking features	Fast Ethernet, WLAN
Wireless technology	Wi-Fi
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® GL40 Express

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Trial software	McAfee Internet Security (60)

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Intel 64	Yes
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Processor ARK ID	47511

Power

Specification	Value
AC adapter power	60 W
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	2.5 kg
Width	379.8 mm
Depth	255.5 mm
Height (front)	2.99 cm
Height (rear)	3.62 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Internal modem	No
TV tuner integrated	No
Supplied AC adapter type	AC
