Samsung R R522-JS01P Intel® Core™2 Duo T6500

39.6 cm (15.6") 3 GB DDR2-SDRAM 320 GB AMD Radeon HD 4650 Windows 7 Home Premium Black

Model R522-JS01PPart no. NP-R522-JS01PL

104 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™2 Duo
Memory3 GB
Storage320 GB
GraphicsAMD Radeon HD 4650

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™2 Duo
Memory: 3 GB
Storage: 320 GB
Graphics: AMD Radeon HD 4650

Brand: Samsung
Category: Laptop
Model: R522-JS01P
Part number: NP-R522-JS01PL
Also known as: Samsung R R522-JS01P Intel® Core™2 Duo T6500 39.6 cm (15.6") 3 GB DDR2-SDRAM 320 GB AMD Radeon HD 4650 Windows 7 Home Premium Black

Specifications

104 specifications in 19 groups

Design

Specification	Value
Product colour	Black

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T6500
Processor cores	2
Processor threads	2
Processor frequency	2.1 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	LGA 3647 (Socket P)
Processor lithography	45 nm
Processor operating modes	64-bit
Processor codename	Penryn
Bus type	FSB
Stepping	R0
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	10.5

Memory

Specification	Value
Internal memory	3 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	1 x 1 + 1 x 2 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	320 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Radeon HD 4650
Graphics card family	AMD

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Speaker power	3 W
Audio system direct 3D sound	Yes

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Networking features	Gigabit Ethernet
Wireless technology	IEEE 802.11b/g/n
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
eSATA ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® PM45 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard number of keys	88

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Drivers included	Yes
Trial software	McAfee Virus Scan Microsoft Office Professional 2007
Bundled software	SAMSUNG Recovery Solution IV Adobe Acrobat Reader

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Processor ARK ID	39311
Processor code	SLGF4

Battery

Specification	Value
Battery life (max)	6 h

Power

Specification	Value
AC adapter power	90 W
AC adapter output current	4.74 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	No
Trusted Platform Module (TPM)	No
Password protection type	BIOS
HDD user password	Yes

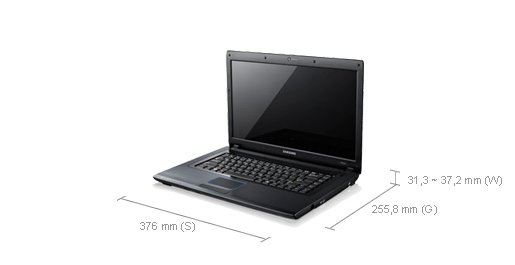

Weight & dimensions

Specification	Value
Weight	2.55 kg
Width	376 mm
Depth	255.8 mm
Height	31.3 mm
Height (front)	3.13 cm
Height (rear)	3.72 cm
Dimensions (WxDxH)	376 x 255.8 x 31.3 mm

Other features

Specification	Value
Infrared data port	No
Internal modem	No
Supplied AC adapter type	AC
