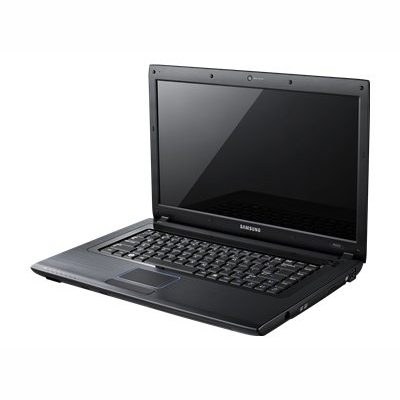

Samsung R R522-FA01 Intel Pentium Mobile T3400

39.6 cm (15.6") 3 GB DDR2-SDRAM 250 GB Intel® GMA 4500MHD Windows Vista Home Premium

Model R522-FA01Part no. NP-R522-FA01NLEAN 8808993362707

101 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel Pentium Mobile
Memory3 GB
Storage250 GB
GraphicsIntel® GMA 4500MHD

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel Pentium Mobile
Memory: 3 GB
Storage: 250 GB
Graphics: Intel® GMA 4500MHD

Brand: Samsung
Category: Laptop
Model: R522-FA01
Part number: NP-R522-FA01NL
EAN / UPC: 8808993362707
Also known as: Samsung R R522-FA01 Intel Pentium Mobile T3400 39.6 cm (15.6") 3 GB DDR2-SDRAM 250 GB Intel® GMA 4500MHD Windows Vista Home Premium

Specifications

101 specifications in 16 groups

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium Mobile
Processor model	T3400
Processor cores	2
Processor threads	2
Processor frequency	2.16 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	Socket 478
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Pentium T3000 Series for Mobile
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	M0
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	13
ECC supported by processor	No

Memory

Specification	Value
Internal memory	3 GB
Internal memory type	DDR2-SDRAM

Storage

Specification	Value
Total storage capacity	250 GB
HDD interface	SATA
HDD speed	5400 RPM
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 4500MHD

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Networking features	Gigabit LAN Ethernet
Wireless technology	802.11 b/g/n
Bluetooth	Yes
Bluetooth version	2.1+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® GM45 Express

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows Vista Home Premium

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	35583
Processor code	SLB3P
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Power

Specification	Value
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	2.55 kg
Dimensions (WxDxH)	376 x 256 x 37 mm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Internal modem	Yes
Supplied AC adapter type	AC
