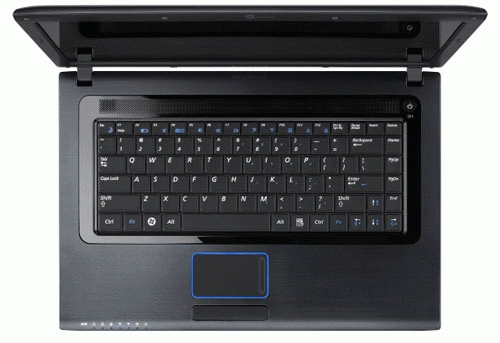

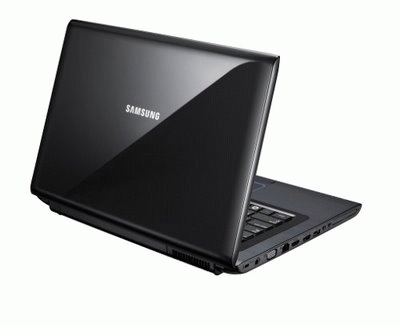

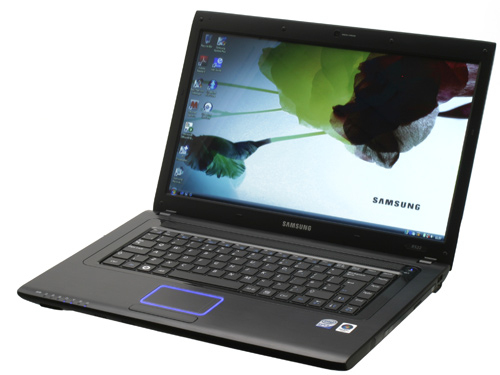

Samsung R R522 Intel Pentium Mobile T4200

39.6 cm (15.6") 4 GB DDR2-SDRAM 500 GB Windows Vista Home Premium QWERTY

Model R522Part no. K-SAMSUNG-YR71740

136 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel Pentium Mobile
Memory4 GB
Storage500 GB
Battery4000 mAh

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel Pentium Mobile
Memory: 4 GB
Storage: 500 GB
Battery: 4000 mAh

Brand: Samsung
Category: Laptop
Model: R522
Part number: K-SAMSUNG-YR71740
Also known as: Samsung R R522 Intel Pentium Mobile T4200 39.6 cm (15.6") 4 GB DDR2-SDRAM 500 GB Windows Vista Home Premium QWERTY

Specifications

136 specifications in 18 groups

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Display surface	Gloss

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium Mobile
Processor model	T4200
Processor cores	2
Processor threads	2
Processor frequency	2 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	LGA 3647 (Socket P)
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Pentium T4000 Series for Mobile
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	R0
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	10
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 2 GB

Storage

Specification	Value
Total storage capacity	500 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC

Graphics

Specification	Value
Maximum graphics card memory	0.384 GB

Audio

Specification	Value
Audio system	High Definition Audio
Number of built-in speakers	2
Speaker power	1.5 W

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Optical drive

Specification	Value
CD read speed	24x
CD write speed	24x
CD rewrite speed	24x
CD-R read speed	24x
CD-R write speed	24x
CD-RW read speed	24x
CD-RW write speed	24x
DVD-R read speed	8x
DVD-R write speed	8x
DVD-R Double Layer read speed	6x
DVD-R Double Layer write speed	6x
DVD-RW read speed	6x
DVD-RW write speed	6x
DVD+R read speed	8x
DVD+R write speed	8x
DVD+R Double Layer read speed	6x
DVD+R Double Layer write speed	6x
DVD+RW read speed	8x
DVD+RW write speed	8x
DVD-RAM read speed	5x
DVD-RAM write speed	5x

Network

Specification	Value
Networking features	Gigabit Ethernet, WLAN
Networking type	10/100/1000 LAN
Wireless technology	802.11 b/g
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
eSATA ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	3.5
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Keyboard

Specification	Value
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows Vista Home Premium
Trial software	Genuine Microsoft Office Professional 2007
Bundled software	SAMSUNG Magic Doctor SAMSUNG Update Plus Easy Display Manger Easy Battery Manager Easy Network Manager Easy SpeedUp Manager Adobe Acrobat Reader

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	37251
Processor code	SLGJN
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Battery capacity	4000 mAh

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	2.55 kg
Width	376 mm
Depth	255.8 mm
Height	37.2 mm

Other features

Specification	Value
Infrared data port	No
Internal modem	No
Supplied AC adapter type	AC
