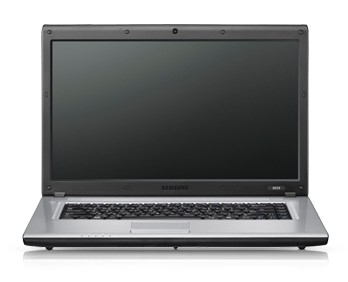

Samsung R R519-JS02BE Intel Pentium Mobile T4200

39.6 cm (15.6") 4 GB DDR2-SDRAM 250 GB Intel GMA X4500M Windows 7 Home Premium

Model R519-JS02BEPart no. NP-R519-JS02BEEAN 8808993662371

118 specifications Checked yesterday

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel Pentium Mobile
Memory4 GB
Storage250 GB
GraphicsIntel GMA X4500M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel Pentium Mobile
Memory: 4 GB
Storage: 250 GB
Graphics: Intel GMA X4500M

Brand: Samsung
Category: Laptop
Model: R519-JS02BE
Part number: NP-R519-JS02BE
EAN / UPC: 8808993662371
Also known as: Samsung R R519-JS02BE Intel Pentium Mobile T4200 39.6 cm (15.6") 4 GB DDR2-SDRAM 250 GB Intel GMA X4500M Windows 7 Home Premium

Specifications

118 specifications in 17 groups

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Display surface	Gloss

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium Mobile
Processor model	T4200
Processor cores	2
Processor threads	2
Processor frequency	2 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	LGA 3647 (Socket P)
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Pentium T4000 Series for Mobile
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	R0
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	10
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	800 MHz
Memory layout (slots x size)	2 x 2 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	250 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel GMA X4500M

Audio

Specification	Value
Audio system	HDA
Number of built-in speakers	2
Speaker power	2 W

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Wireless technology	WLAN, Fast Ethernet
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Drivers included	Yes
Trial software	Microsoft Office Professional 2007 McAfee Virus Scan
Bundled software	Adobe Acrobat Reader, Easy Battery Manager, Easy Display Manger, Easy Network Manager, Easy SpeedUp Manager, SAMSUNG Magic Doctor, SAMSUNG Update Plus SAMSUNG Recovery Solution III

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	37251
Processor code	SLGJN
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	2.56 kg
Width	376 mm
Depth	255.5 mm
Height (front)	3.04 cm
Height (rear)	3.81 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Internal modem	No
Supplied AC adapter type	AC
