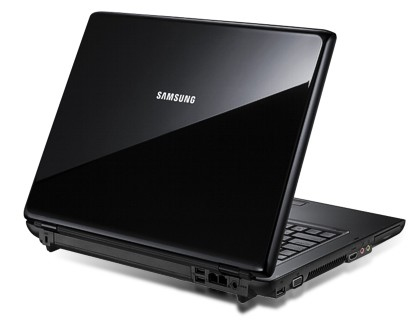

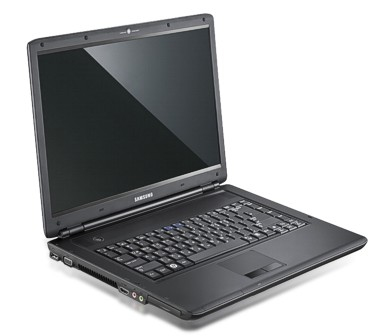

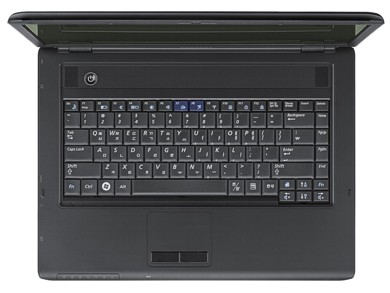

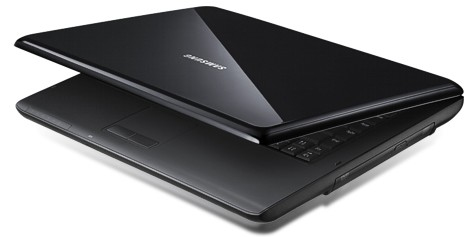

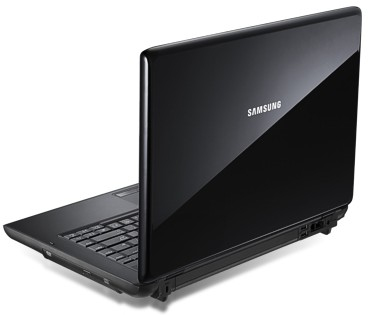

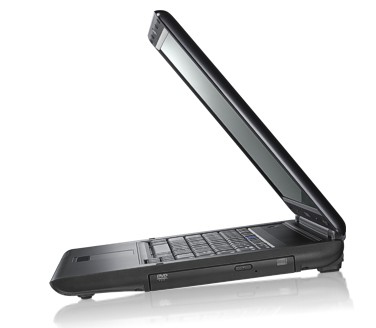

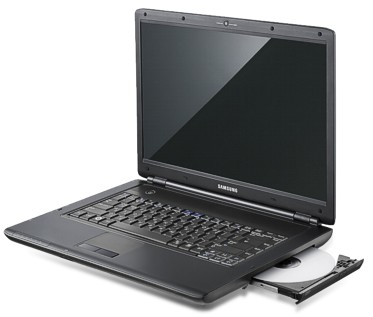

Samsung R510-FA04ES Intel® Core™2 Duo T5750

39.1 cm (15.4") 4 GB DDR2-SDRAM 160 GB Intel® GMA X4500 Windows Vista Home Premium Black

Model R510-FA04ESPart no. NP-R510-FA04ES

99 specifications Checked 4 days ago

Display39.1 cm (15.4")
Resolution1280 x 800 pixels
ProcessorIntel® Core™2 Duo
Memory4 GB
Storage160 GB
GraphicsIntel® GMA X4500

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™2 Duo
Memory: 4 GB
Storage: 160 GB
Graphics: Intel® GMA X4500

Brand: Samsung
Category: Laptop
Model: R510-FA04ES
Part number: NP-R510-FA04ES
Also known as: Samsung R510-FA04ES Intel® Core™2 Duo T5750 39.1 cm (15.4") 4 GB DDR2-SDRAM 160 GB Intel® GMA X4500 Windows Vista Home Premium Black

Specifications

99 specifications in 19 groups

Design

Specification	Value
Product colour	Black

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Display surface	Gloss

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T5750
Processor cores	2
Processor threads	2
Processor frequency	2 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	mPGA4
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T5000 Series
Stepping	M0
Thermal Design Power (TDP)	35 W
Tjunction	85 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	800 MHz
Memory layout (slots x size)	2 x 2 GB
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	160 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA X4500

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Speaker power	4 W
Built-in subwoofer	No

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP
Swivel webcam	No

Network

Specification	Value
Networking type	Ethernet LAN, WLAN
Wireless technology	802.11b/g
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Keyboard

Specification	Value
Keyboard number of keys	88

Software

Specification	Value
Operating system installed	Windows Vista Home Premium
Drivers included	Yes
Trial software	McAfee Security Center
Bundled software	SAMSUNG Recovery Solution III

Processor special features

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Processor ARK ID	33915
Processor code	SLA4D
Processor package size	35 x 35 mm

Battery

Specification	Value
Number of battery cells	6
Battery life (max)	3 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	No
Trusted Platform Module (TPM)	No
Password protection type	BIOS
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	2.68 kg
Width	358 mm
Depth	265 mm
Height (front)	3.18 cm
Height (rear)	3.85 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Internal modem	Yes
Supplied AC adapter type	AC
