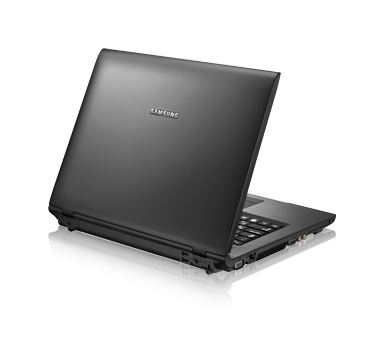

Samsung P560-PRO P8700 Pax

Model P560-PRO P8700 PaxPart no. NP-P560-PS02DEEAN 8808993742851

116 specifications Checked 4 days ago

Display39.1 cm (15.4")
Resolution1680 x 1050 pixels
ProcessorIntel® Core™2 Duo
Memory4 GB
Storage250 GB
GraphicsNVIDIA GeForce Go 9600M GS

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1680 x 1050 pixels
Processor: Intel® Core™2 Duo
Memory: 4 GB
Storage: 250 GB
Graphics: NVIDIA GeForce Go 9600M GS

Brand: Samsung
Category: Laptop
Model: P560-PRO P8700 Pax
Part number: NP-P560-PS02DE
EAN / UPC: 8808993742851
Also known as: Samsung P P560-PRO P8700 Pax Intel® Core™2 Duo Laptop 39.1 cm (15.4") 4 GB DDR3-SDRAM 250 GB NVIDIA GeForce Go 9600M GS Windows 7 Professional AZERTY

Specifications

116 specifications in 18 groups

Design

Specification	Value
Product type	Laptop

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Display surface	Matt
Display brightness	220 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	P8700
Processor cores	2
Processor threads	2
Processor frequency	2.53 GHz
Processor cache	3 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Processor socket	Socket 479
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo P8000 Series
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	R0
Thermal Design Power (TDP)	25 W
Tjunction	105 °C
Processor core voltage (AC)	1.00 - 1.250 V
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	9.5
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 2 GB
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	250 GB
HDD interface	SATA
HDD speed	5400 RPM
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce Go 9600M GS
Discrete graphics card memory	0.512 GB
On-board graphics card model	Not available

Audio

Specification	Value
Audio system	High Definition Audio
Number of built-in speakers	2
Speaker power	1.5 W

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Networking features	10/100/1000 LAN
Wireless technology	IEEE 802.11a/b/g/n
Bluetooth	Yes
Bluetooth version	2.1+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Keyboard

Specification	Value
Keyboard layout	AZERTY

Software

Specification	Value
Operating system installed	Windows 7 Professional

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	37006
Processor code	SLGFE
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	2.65 kg
Dimensions (WxDxH)	358 x 268 x 36.25 mm

Packaging content

Specification	Value
Remote control included	No

Other features

Specification	Value
Infrared data port	No
Internal modem	Yes
Modem type	V.92
Supplied AC adapter type	AC
