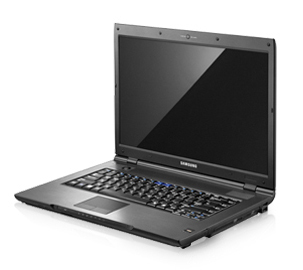

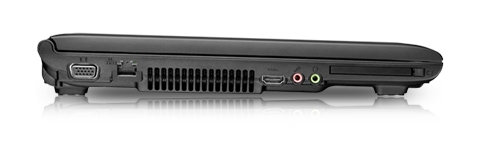

Samsung P P560-AA0A Intel® Core™2 Duo P8700

39.1 cm (15.4") 3 GB DDR3-SDRAM 250 GB Intel® GMA 4500MHD Windows Vista Business Black QWERTY

Model P560-AA0APart no. NP-P560-AA0ANLEAN 8808993620845

129 specifications Checked 3 days ago

Display39.1 cm (15.4")
Resolution1280 x 800 pixels
ProcessorIntel® Core™2 Duo
Memory3 GB
Storage250 GB
GraphicsIntel® GMA 4500MHD

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™2 Duo
Memory: 3 GB
Storage: 250 GB
Graphics: Intel® GMA 4500MHD

Brand: Samsung
Category: Laptop
Model: P560-AA0A
Part number: NP-P560-AA0ANL
EAN / UPC: 8808993620845
Also known as: Samsung P P560-AA0A Intel® Core™2 Duo P8700 39.1 cm (15.4") 3 GB DDR3-SDRAM 250 GB Intel® GMA 4500MHD Windows Vista Business Black QWERTY

Specifications

129 specifications in 19 groups

Design

Specification	Value
Product colour	Black

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	P8700
Processor cores	2
Processor threads	2
Processor frequency	2.53 GHz
Processor cache	3 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Processor socket	Socket 479
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo P8000 Series
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Stepping	R0
Thermal Design Power (TDP)	25 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	9.5
ECC supported by processor	No

Memory

Specification	Value
Internal memory	3 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 1 + 1 x 2 GB
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	250 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 4500MHD

Audio

Specification	Value
Audio system	High Definition Audio
Number of built-in speakers	2
Speaker power	3 W
Audio system direct 3D sound	Yes

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Networking features	Gigabit Ethernet, WLAN
Wireless technology	802.11a/b/g/n
Bluetooth	Yes
Bluetooth version	2.0+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® GM45 Express

Keyboard

Specification	Value
Pointing device	Touchpad + Scroll zone
Keyboard number of keys	88
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows Vista Business
Optional operating system supplied	Windows XP Professional
Trial software	Microsoft Office Professional 2007
Bundled software	Adobe Acrobat Reader Easy Battery Manager Easy Display Manger Easy Network Manager Easy SpeedUp Manager SAMSUNG Magic Doctor SAMSUNG Update Plus

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	37006
Processor code	SLGFE
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	5200 mAh

Power

Specification	Value
AC adapter power	90 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	No
Trusted Platform Module (TPM)	No
Password protection type	BIOS
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	2.67 kg
Width	358.3 mm
Depth	269.3 mm
Height (front)	3.08 cm
Height (rear)	3.63 cm

Other features

Specification	Value
Infrared data port	No
Internal modem	No
Modem speed	56 Kbit/s
Modem type	V.92
Supplied AC adapter type	AC
